1068076 PHOENIX CONTACT - Technology Bsa

EO-E/UT/SH/LED/YE - Socket

Socket, Pin connector pattern type E, for France and other countries, with extended touch proofness/shutter, LED display, yellow, for mounting on a DIN rail in the service interface or direct mounting, 250 VAC, 16 A, -20°C, 60°C, NFC61-314

Product Code: 1068076 Copia - Copy

Partner cod.: 1068076 Copia - Copy

PHOENIX CONTACT

Product properties	Product type: Socket Country ID: France
Electrical properties	Nominal voltage U_N: 250 VÃAC (50ÃHz) Nominal current I_N: 16 A
Signaling	Status display: Yes
Dimensions	Width: 45 mm Height: 75 mm Depth: 75 mm
Material specifications	Color: yellow Flammability rating according to UL 94: V0 Insulating material: PA Contact material: CuZn37 Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
Connector	Type of plug: Pin connector pattern type E
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 60°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Standards Standards/regulations: NFÃC61-314

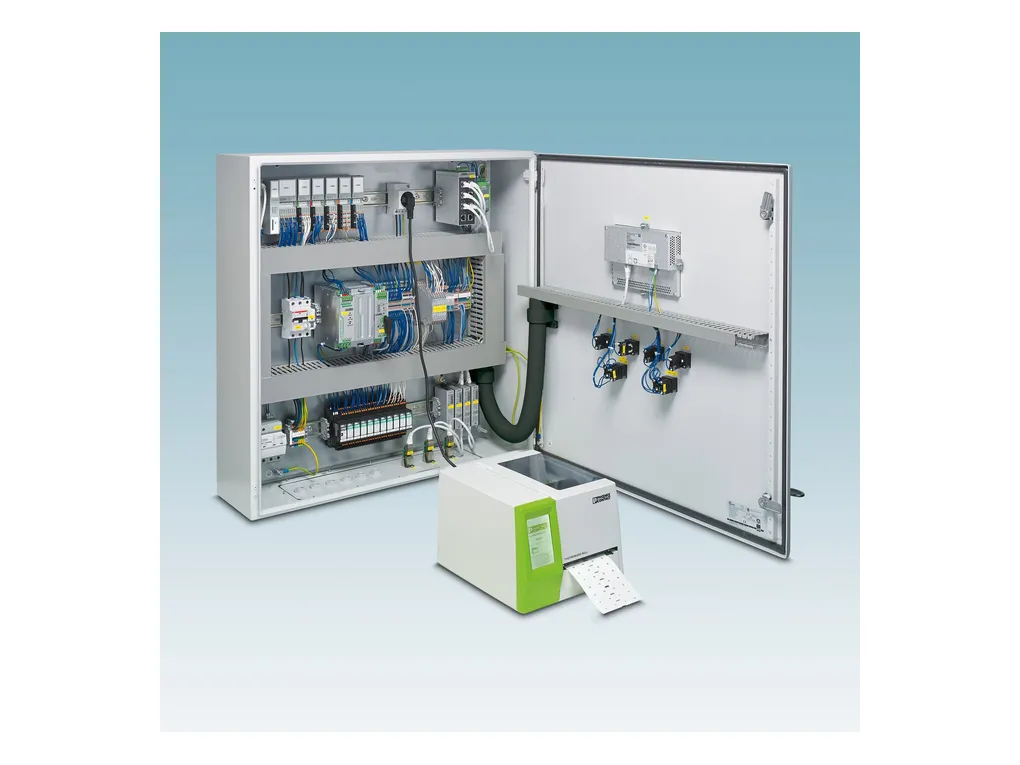

Mounting	Mounting type: for mounting on a DIN rail in the service interface or direct mounting
