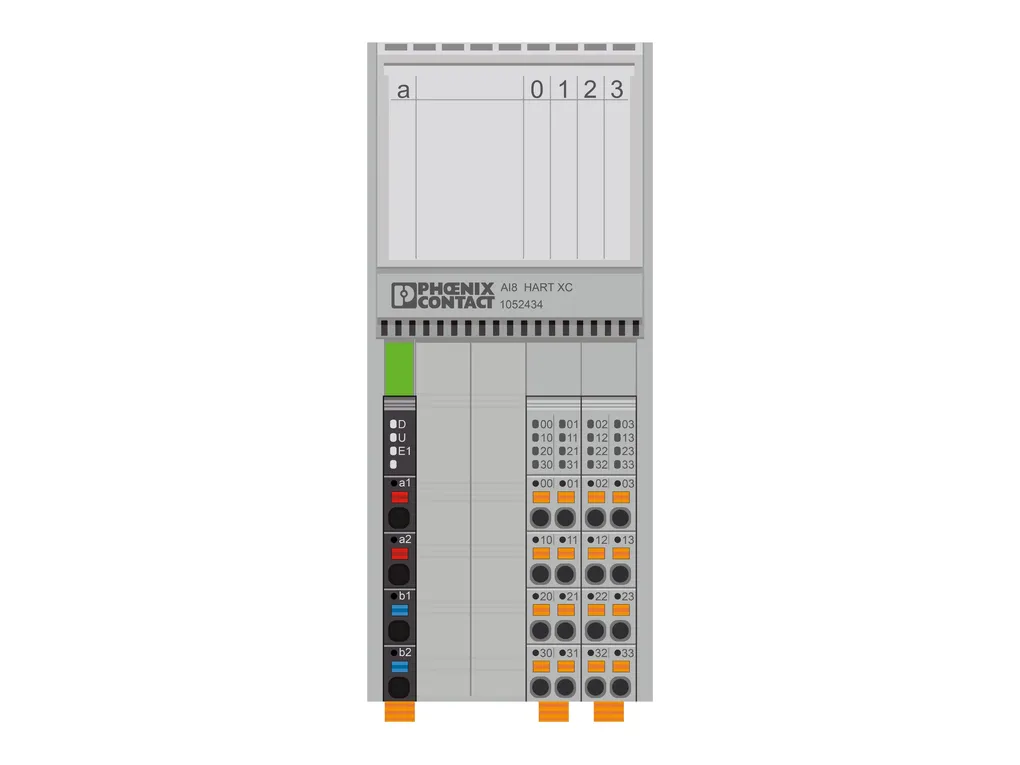

AXL F AI8 HART XC 1F - Analog module

AxiolineF, Analog input module, Active analog inputs: 8 (HART), 4 mA ... 20 mA, connection technology: 2-conductor, transmission speed in the local bus: 100 Mbps, Extremeconditions version, degree of protection: IP20, including bus base module and AxiolineF connectors

Product Code: 1052434 Copia - Copy

Partner cod.: 1052434 Copia - Copy

PHOENIX CONTACT

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/a5748696d9eab64aae800a76cef3a505/-S204x204-FJPG Width: 53.6 mm Height: 126.1 mm Depth: 77.14 mm Note on dimensions: The depth applies when a THÃ35-7.5 DIN rail is used (in accordance with ENÃ60715).
Notes	Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area Utilization restrictionÃ¢Ã¢¬Ã¢¹ CCCex note: Use in potentially explosive areas is not permitted in China.
Material specifications	Color: traffic grey A RAL 7042
Interfaces	AxiolineÃFÃlocal bus No. of channels: 2 Connection method: Bus base module Transmission speed: 100 Mbps
System properties	Module Input address area: 48 Byte Output address area: 0 Byte Required parameter data: 27 Byte Required configuration data: 6 Byte
Input data	Analog Input name: Active analog inputs Description of the input: HART enabled, passive analog input signals Number of inputs: 8 (HART) Connection method: Push-in connection Connection technology: 2-conductor Note regarding the connection technology: shielded, twisted pair Current input signal: 4 mA ... 20 mA
Product properties	Type: block modular Product type: I/O component Product family: AxiolineÃF Mounting position: any (no temperature derating) Scope of delivery: including bus base module and AxiolineÃF connectors
Electrical properties	Potentials: AxiolineÃF local bus supply (U Supply voltage: 5 VÃDC (via bus base module) Current draw: max. 60 mA typ. 40 mA Potentials: Supply for analog modules (U Supply voltage: 24 VÃDC Supply voltage range: 19.2 VÃDC ... 30 VÃDC (including all tolerances, including ripple) Current draw: max. 240 mA Electrical isolation/isolation of the voltage ranges Test voltage: 5ÃV supply of the local bus (U_Bus) / 24ÃV supply (I/Os): 500 VÃAC, 50 Hz, 1 min. Test voltage: 5ÃV supply of the local bus (U_Bus) / functional ground: 500 VÃAC, 50 Hz, 1 min. Test voltage: 24ÃV supply (I/O) / functional ground: 500 VÃAC, 50 Hz, 1 min. Test voltage: Field to functional earth: 500 VÃAC, 50 Hz, 1 min. Test voltage: Field to 5V or 24V supplies: 1500 VÃAC, 50 Hz, 1 min.
Connection data	Connection technology Connection name: AxiolineÃF connector Note on the connection method: Please observe the information provided on conductor cross sections in the Ã¢Ã¢¬ÃAxiolineÃF: system and installationÃ¢Ã¢¬ user manual. Conductor connection Connection method: Push-in connection Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm AxiolineÃF connector Connection method: Push-in connection Note on the connection method: Please observe the information provided on conductor cross sections in the Ã¢Ã¢¬ÃAxiolineÃF: system and installationÃ¢Ã¢¬ user manual. Conductor cross section, rigid: 0.2 mm² ... 1.5 mm² Conductor cross section, flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -25°C ... 60°C (Standard) -40°C ... 70°C (Extended, see section Ã¢Ã¢¬ÃTested successfully: use under extreme ambient conditionsÃ¢Ã¢¬ in the data sheet.) Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000Ãm above sea level) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing)
Standards and regulations	Protection class: III (IEC 61140, ENÃ61140, VDEÃ0140-1)
Approvals	ATEX Identification: II 3G Ex ec IIC T4 Gc Certificate: DEMKO 20 ATEX 2334X IECEx Identification: Ex ec IIC T4 Gc Certificate: IECEx UL 20.0002X UKCAÃExÃ(UKEX) Identification: II 3G Ex ec IIC T4 Gc Certificate: PxCAI22UKEx1052427X Ex data UL, USA / Canada: Class I, Div. 2, Groups A, B, C, D T4
Mounting	Mounting type: DIN rail mounting Mounting position: any (no temperature derating)
