| Product properties | Product type: Panel feed-through Product family: IPD Number of positions: 5 Connection profile: 4+PE Position marking: 1, 2, 3, N, PE Series: IPD Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Connection data | Connection technology Connection technology: Push-in connection Connection system, internal: Single wires Frequency of connections between conductors of the same cross section: max. 10 Conductor connection Conductor cross section flexibel: 0.5 mm² ... 2.5 mm² Conductor cross section solid: 0.5 mm² ... 2.5 mm² Connection cross section AWG: 20 ... 14 |

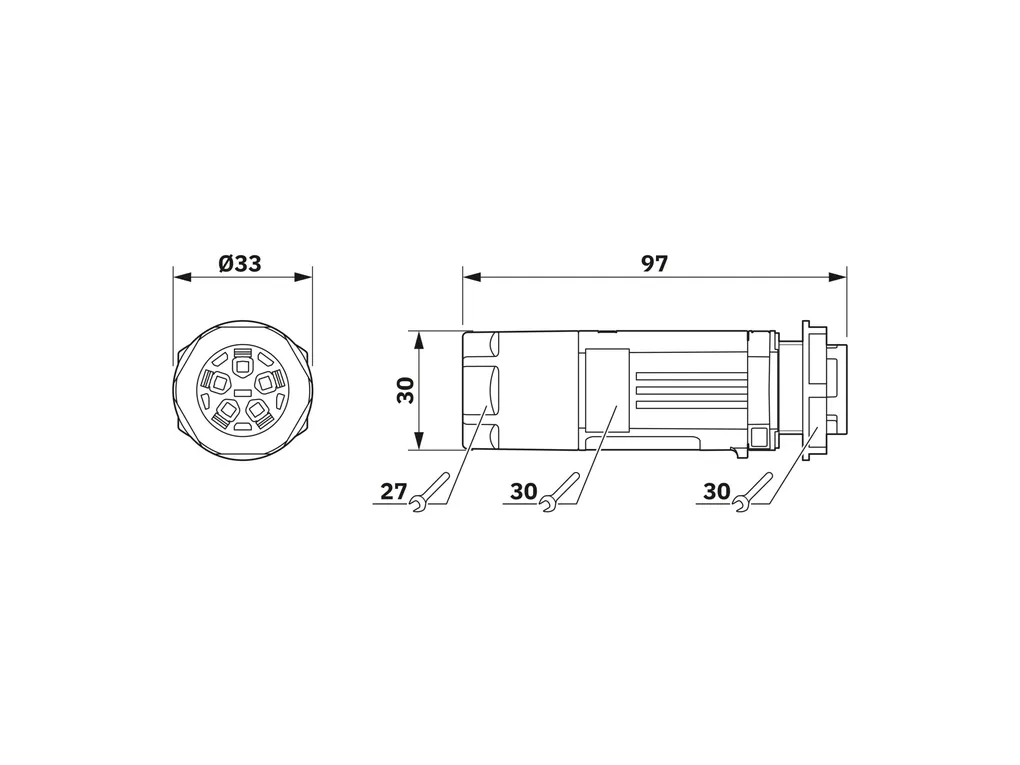

| Dimensions | Dimensional drawing: https://caas.production.phoenixcontact.coremedia.cloud/caas/v1/stable/media/22526/full/b250?format=jpg Width: 33.5 mm Length: 91.8 mm |
| Electrical properties | Rated surge voltage (III/3): 6 kV Rated current: 16 A Rated voltage (III/3): 450 V Nominal voltage UN: 450 VÃAC 450 VÃDC Nominal current IN: 16 A (observe derating) |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: 10 |
| Material specifications | Material: PA Cu Ni/Sn |
| Cable/line | Cable length: 0.5 m External cable diameter (): 7 mm ... 11 mm 11 mm ... 16 mm Stripping length of the individual wire: 10 mm Position marking: 1, 2, 3, N, PE Single wire, color: brown, black, gray, blue, green-yellow Halogen-free: no |
| Mounting | Mounting type: Front mounting M25 Connection method: Push-in connection |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (2Ãm / 24Ãh) IP69K Ambient temperature (operation): -40°C ... 90°C (T = 45ðC) Temperature when conductor connected: -5°C ... 50°C Ambient temperature (storage/transport): -40°C ... 90°C Resistance to UV radiation: yes |
| Standards and regulations | Resistance to UV radiation: yes |
