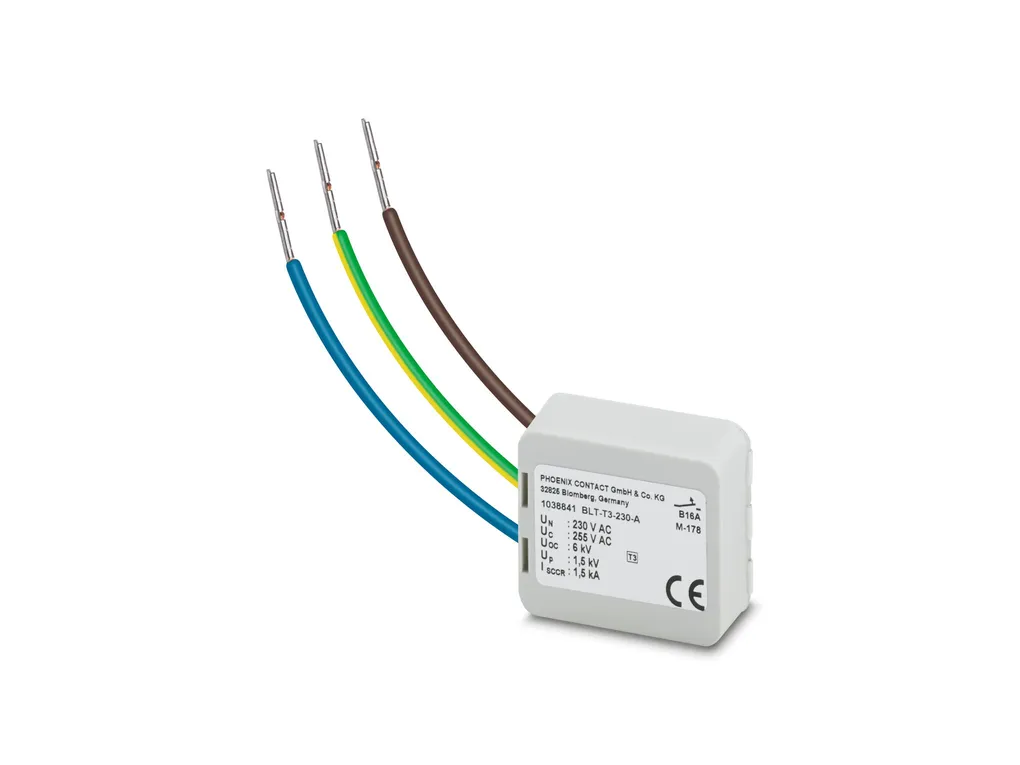

| Product properties | IEC power supply system: TN-S TT Type: Socket mounting module Product type: Device protection Product family: BLOCKTRAB Number of positions: 2 Surge protection fault message: Acoustic Insulation characteristics Overvoltage category: III Pollution degree: 2 IEC test classification: III T3 EN type: T3 Number of ports: One |
| Connection data | Connection method: Single wires |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d0a9df505b3fc34fbb2a42215305ce55/-S204x204-FJPG Width: 12.5 mm Height: 31 mm Depth: 36 mm |
| Material specifications | Flammability rating according to UL 94: V-0 CTI value of material: 600 Insulating material: PA 6.6-FR Material group: I Housing material: PA 6.6-FR |
| Protective circuit | Mode of protection: L-N L-PE N-PE Direction of action: 1L-N & N-PE Nominal voltage UN: 230ÃVÃACÃ(TN-S) 230ÃVÃACÃ(TT - only in use with RCD) Nominal frequency fN: 50 Hz (60ÃHz) Maximum continuous voltage UC: 255 VÃAC Residual current IPE: ââ°¤ 5 õA Reference test voltage UREF: 255 VÃAC Maximum discharge current Imax (8/20) õs: 4 kA Combination wave UOC: 6 kV Voltage protection level Up: ââ°¤ 1.5 kV TOV behavior at UT (L-N): 440 VÃAC (5Ãs / withstand mode) 440 VÃAC (120Ãmin / withstand mode) TOV behavior at UT (L-PE): 440 VÃAC (5Ãs / withstand mode) 440 VÃAC (120Ãmin / withstand mode) 1455 VÃAC (200Ãms / safe failure mode) TOV behavior at UT (N-PE): 1200 VÃAC (200Ãms / safe failure mode) Response time tA (L-N): ââ°¤ 25 ns Response time tA (L-PE): ââ°¤ 100 ns Response time tA (N-PE): ââ°¤ 100 ns Max. required back-up fuse: 16 A (MCB B) Short-circuit current rating ISCCR: 1.5 kA AC |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 (Installed) Ambient temperature (operation): -20°C ... 70°C Ambient temperature (storage/transport): -20°C ... 70°C Altitude: ââ°¤ 2000 m (amsl) Permissible humidity (operation): 5 % ... 95 % |
| Standards and regulations | Standards/specifications: IEC 61643-11 Note: 2011 EN 61643-11 Standards/specifications: ENÃ61643-11 Note: 2012 |
| Mounting | Mounting type: in device sockets and conductor routing systems made of insulating material |
