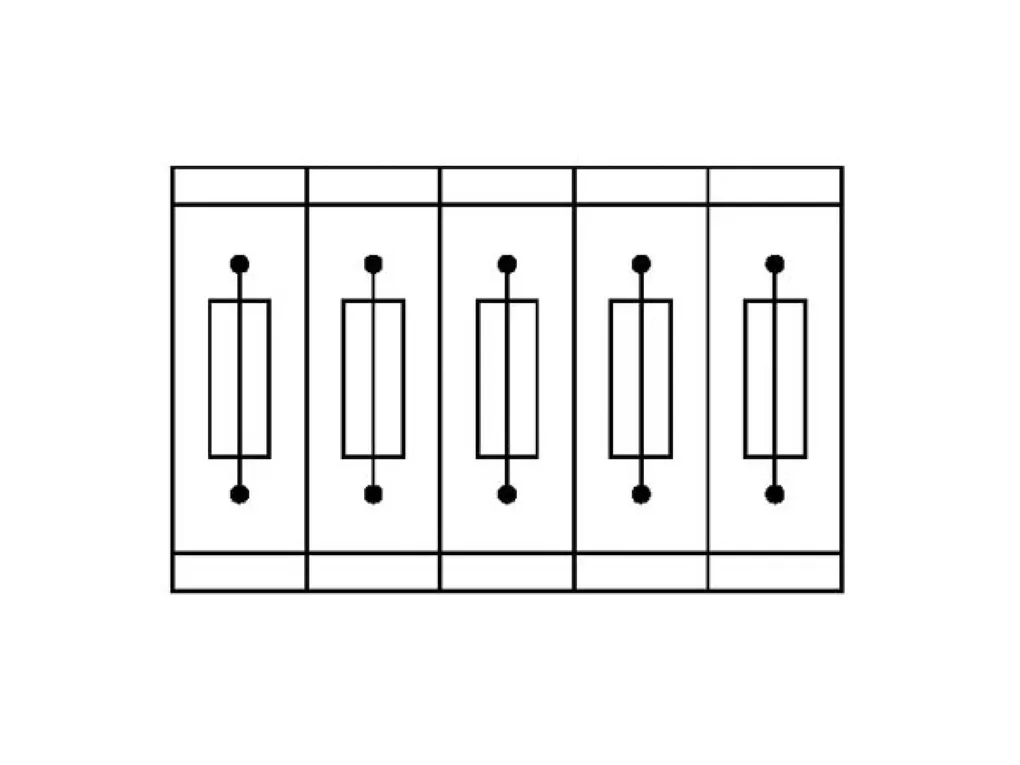

UT 4-HESILED 24 (5X20) 120KOHM-EX - Fuse modular terminal block

Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.14 mm²- 6 mm², mounting type: NS 35/7,5, NS 35/15, color: black

Product Code: 1021487 Copia - Copy

Partner cod.: 1021487 Copia - Copy

PHOENIX CONTACT

Notes	General: The current is determined by the fuse used, the voltage by the selected LED. If the fuse is faulty, the downstream circuit will not be disconnected.
Product properties	Product type: Fuse terminal block Number of connections: 2 Number of rows: 1 Potentials: 1 Data management status Article revision: 01 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Fuse type: Glass / ceramics / ... Rated surge voltage: 4 kV Maximum power dissipation for nominal condition: 1.02 W Fuse: G / 5 x 20 LED voltage range: 12 V AC/DC ... 60 V AC/DC LED current range: 0.09 mA ... 0.49 mA Maximum power dissipation: max. 1.6 W (with single arrangement of the fuse terminal block in the event of overload) max. 1.6 W (With interconnected arrangement of several fuse terminal blocks in the event of overload) max. 4 W (with single arrangement of the fuse terminal block in the event of a short-circuit) max. 2.5 W (With interconnected arrangement of several fuse terminal blocks in the event of a short-circuit)
Input data	LED voltage range: 12 V AC/DC ... 60 V AC/DC
Connection data	Number of connections per level: 2 Nominal cross section: 4 mm² Screw thread: M3 Tightening torque: 0.6 ... 0.8 Nm Stripping length: 9 mm Internal cylindrical gage: A4 Conductor cross section rigid: 0.14 mm² ... 6 mm² Cross section AWG: 26 ... 10 (converted acc. to IEC) Conductor cross section flexible: 0.14 mm² ... 6 mm² Conductor cross section, flexible [AWG]: 26 ... 10 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.14 mm² ... 4 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.14 mm² ... 4 mm² 2 conductors with same cross section, solid: 0.14 mm² ... 1.5 mm² 2 conductors with same cross section, flexible: 0.14 mm² ... 1.5 mm²
Ex data	Rated data (ATEX/IECEx) Identification: Ã¯Ã II 3 G Ex ec llC Gc Operating temperature range: -60 °C ... 130 °C Ex-certified accessories: 1205053 SZS 0,6X3,5 3022276 CLIPFIX 35-5 3022218 CLIPFIX 35 Rated voltage: 275 V Rated insulation voltage: 250 V output: (Permanent) Ex level General Rated current: 6.3 A (4 mm²) Maximum load current: 6.3 A (6 mm²) Contact resistance: 5 mÃ© Ex connection data General Torque range: 0.6 Nm ... 0.8 Nm Nominal cross section: 4 mm² Rated cross section AWG: 12 Connection capacity rigid: 0.14 mm² ... 6 mm² Connection capacity AWG: 26 ... 10 Connection capacity flexible: 0.14 mm² ... 6 mm² 2 conductors with same cross section, solid: 0.14 mm² ... 1.5 mm² 2 conductors with the same cross-section AWG rigid: 26 ... 16 2 conductors with same cross section, stranded: 0.14 mm² ... 1.5 mm² 2 conductors with the same cross-section AWG flexible: 26 ... 16 Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm² Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm² Single conductor/terminal point, flexible, with ferrule, without plastic sleeve, AWG: 26 ... 12
Dimensions	Width: 6.2 mm Height: 57.8 mm Depth on NS 35/7,5: 75.6 mm Depth on NS 35/15: 83.13 mm
Material specifications	Color: black (RAL 9005) Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA
Mechanical properties	Mechanical data Open side panel: No
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) Ambient temperature (storage/transport): -25 °C ... 60 °C (for a short time, no longer than 24 h, -60 °C to +70 °C) Ambient temperature (assembly): -5 °C ... 70 °C Ambient temperature (actuation): -5 °C ... 70 °C Permissible humidity (operation): 20 % ... 90 % Permissible humidity (storage/transport): 30 % ... 70 %
Mounting	Mounting type: NS 35/7,5 NS 35/15
