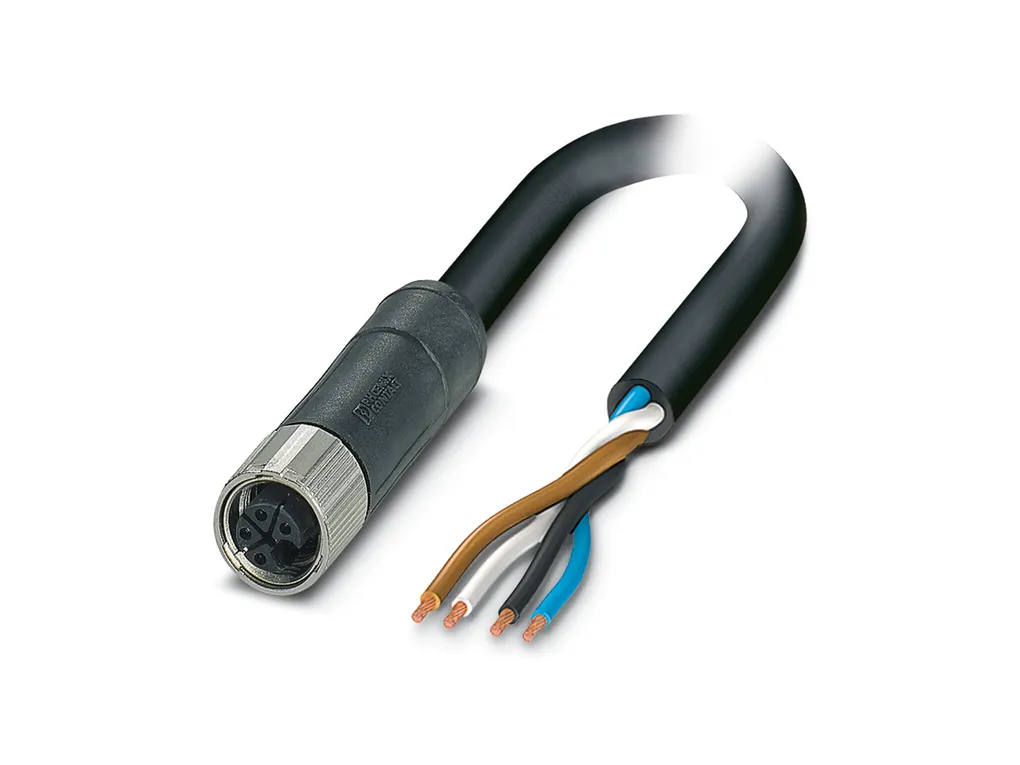

| Product properties | Product type: Sensor/actuator cable Number of positions: 4 No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 250 V AC 250 V DC Nominal current IN: 4 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: no Status display present: No |
| Connection data | Conductor connection Tightening torque: 0.4 Nm |
| Connector | Connection 1 Type: free cable end Connection 2 Type: Socket angled M12 Number of positions: 4 Coding type: A |
| Cable/line | Cable length: 45 m PVC black [PVC] Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/9012/full/b1500?format=jpg Cable weight: 40 kg/km UL AWM Style: 2464 / 1729 (80 °C/300 V) Number of positions: 4 Shielded: no Cable type: PVC black [PVC] Conductor structure signal line: 19x 0.15 mm AWG signal line: 22 Conductor cross section: 4x 0.34 mm² (Signal line) Wire diameter incl. insulation: 1.26 mm ñ0.05 mm External cable diameter: 4.70 mm ñ0.15 mm Outer sheath, material: PVC External sheath, color: black RAL 9005 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: brown, white, blue, black Thickness, insulation: ââ°¥ 0.23 mm (Core insulation) Thickness, outer sheath: ââ°¥ 0.76 mm Overall twist: 4 wires, twisted Max. conductor resistance: ââ°¤ 57 é/km (at 20 °C) Insulation resistance: ââ°¥ 200 Mé*km (at 20 °C) Nominal voltage, cable: ââ°¤ 300 V Test voltage: ââ°¥ 3000 V Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Smallest bending radius, fixed installation: 24 mm Smallest bending radius, movable installation: 47 mm Flame resistance: As per UL-Style 2464 Resistance to oil: according to DIN EN 60811-2-1, 168 h at 60 °C Ambient temperature (operation): -25 °C ... 80 °C (cable, fixed installation) -10 °C ... 80 °C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25 °C ... 90 °C (Plug / socket) -25 °C ... 80 °C (cable, fixed installation) -5 °C ... 80 °C (Cable, flexible installation) |
