| Notes | General: This product replaces 1884173 CK1,6-BR-1,50BU AG |
| Mounting | Assembly instructions: max. crimping speed for 2.5Ãmm² corresponds to a cycle time of 1Ãsecond A tool for automatically processing these contacts on automatic crimping devices can be obtained from U. Kolb GmbH, Neuer Weg 32, 71111 Waldenbuch, Germany, info@u-kolb-gmbh.de, phone +49-(0)7157-7371-0. Item no.: 20.2001-1004382/4383, lubricant for crimp contacts: KMT 200 (wieds Ecochem AG) Connection method: Crimp connection |
| Product properties | Product type: Crimp contact Type: Female contact for taped products Contact material type: rolled |
| Connection data | Connection method: Crimp connection Contact connection type: Socket Connection technology: Crimp connection Conductor cross section: 1.5 mm² ... 2.5 mm² Connection cross section AWG: 16 ... 14 Stripping length of the individual wire: 4 mm Conductor cross section flexible: 1.5 mm² ... 2.5 mm² Conductor cross section AWG: 16 ... 14 |
| Material specifications | Contact material: Cu alloy, nickel-plated Contact surface material: silver-plated |

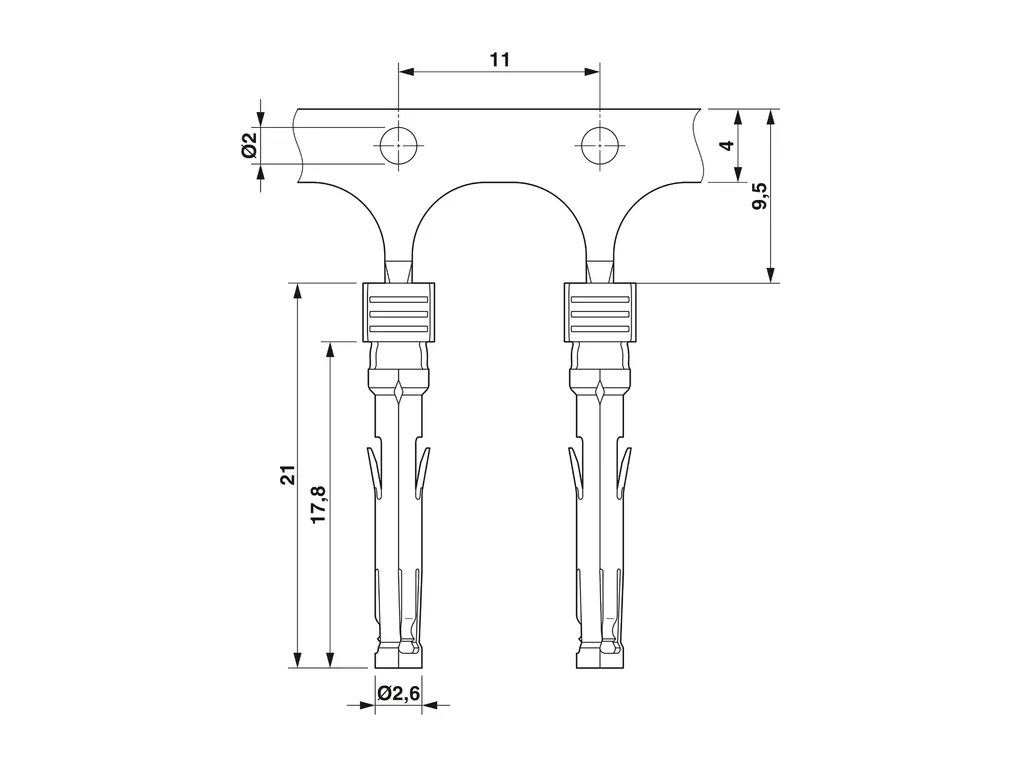

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/6e16c73406fc1f4a95b6dc3ae0b4f53d/-S204x204-FJPG Length: 21 mm Mechanical characteristics Contact diameter: 1.6 mm |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 50 |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C |
