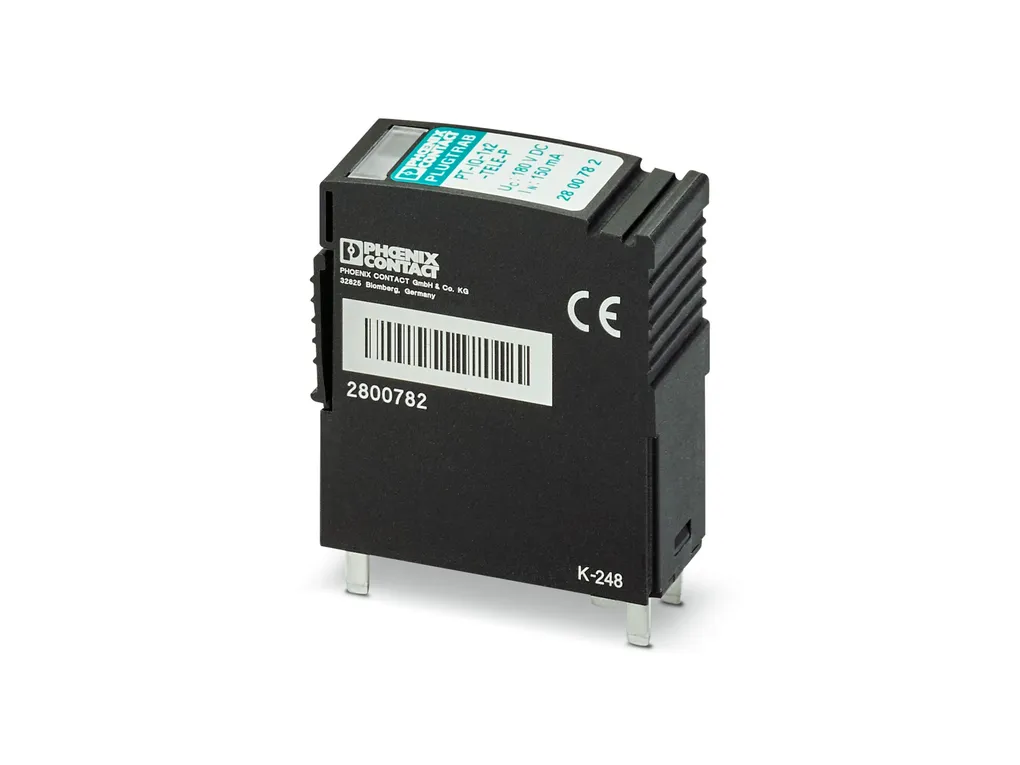

PT-IQ-1X2-TELE-P - Surge protection plug

Surge protection plug with integrated multi-stage status indicator on the module, for protecting a double wire from analog and digital telecommunications interfaces (up to 16 Mbps).

Cod. Articolo: 2800782 Copia - Copy

Cod. Fornitore: 2800782 Copia - Copy

PHOENIX CONTACT

Notes	General Note: Remote signaling as well as the power supply are established by inserting the connector into the base element.
Product properties	Type: Male Product type: Replacement plug Product family: PLUGTRAB IQ Surge protection fault message: Optical, multi-stage Wire pairs per module: 1 Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Nominal voltage U_N: 180 VÃDC
Connection data	Connection method: pluggable

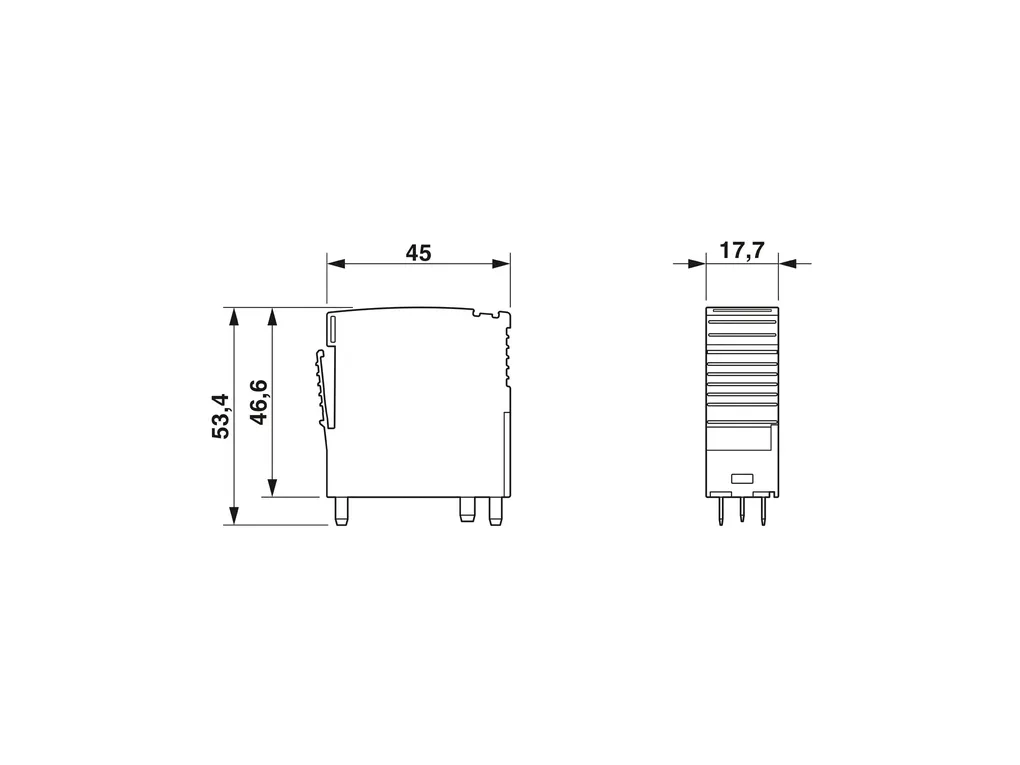

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b5446f667583404eaa1a059846ff2429/-S204x204-FJPG Width: 17.7 mm Height: 45 mm Depth: 53.4 mm Horizontal pitch: 1 Div. Complete module width: 17.7 mm Complete module height: 91.1 mm Complete module depth: 77.5 mm
Material specifications	Flammability rating according to UL 94: V-0 Housing material: PA 6.6
Protective circuit	Direction of action: Line-Line & Line-Earth Ground Maximum continuous voltage U_C: 180 VÃDC Rated current: 150 mA (25Ã°C) Surge protection fault message: Optical, multi-stage
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 4000 mm (amsl) Permissible humidity (operation): 5 % ... 95 %
Standards and regulations	Standards/specifications: IEC 61643-21 ENÃ61643-21 ENÃ61000-6-2 ENÃ61000-6-3 Note: 2000 + A1:2008 + A2:2012 2001 + A1:2009 + A2:2013 2005 2007 + A1:2011
Mounting	Mounting type: on base element
