TTC-6-3-HF-F-24AC-PT-I - Surge protection device

Surge protection with integrated status indicator for three signal wires with common reference potential. For HF applications and telecommunications interfaces without supply voltage (up to 90Mbps). Indirect grounding via gas discharge tube.
Cod. Articolo: 1088786
Cod. Fornitore: 1088786
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesIEC test classification: C1
C2
C3
D1
Type: DIN rail module, one-piece
Product type: Surge protection for information technology
Product family: TERMITRAB complete
Insulation characteristics
Overvoltage category: III
Pollution degree: 2
Electrical propertiesNominal voltage UN: 24 VÂAC
Connection dataConnection method: Push-in connection
Conductor cross section flexible: 0.2 mm² ... 2.5 mm²
Conductor cross section rigid: 0.2 mm² ... 4 mm²
Conductor cross section AWG: 24 ... 12

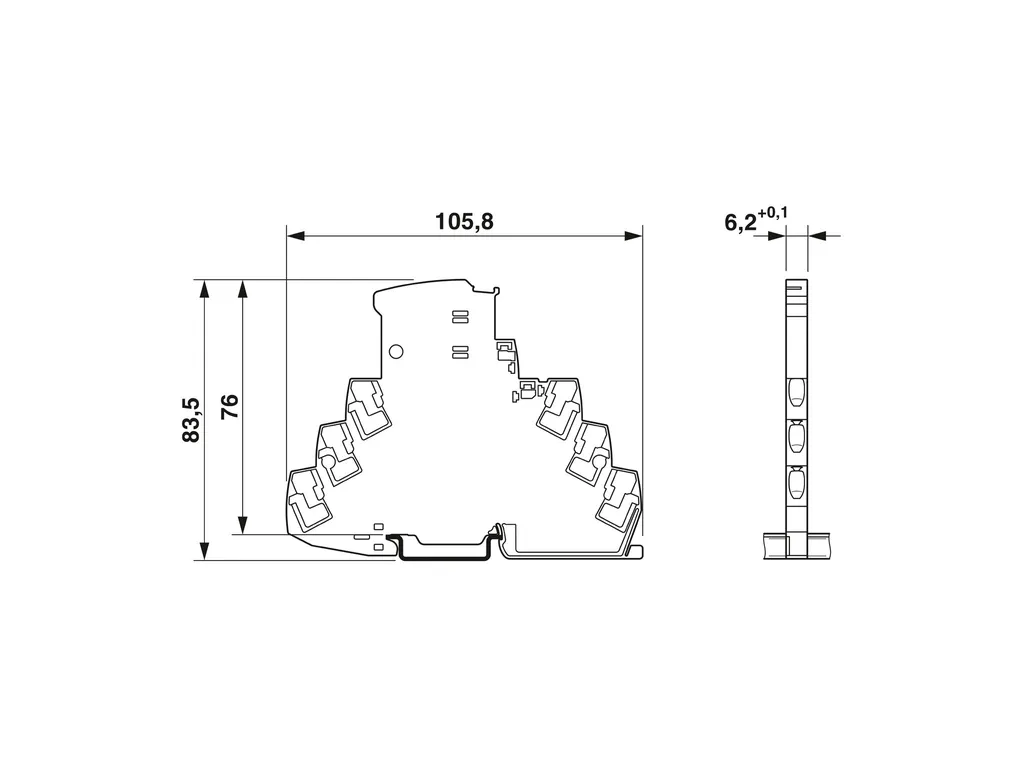

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7ab1192fe1594940a57f86a20b455dc8/-S204x204-FJPG
Width: 6.2 mm +0.1Âmm
Height: 105.8 mm
Depth: 83.5 mm (incl. DIN rail 7.5Âmm)
Material specificationsFlammability rating according to UL 94: V-0
Insulating material: PBT
Housing material: PBT
Mechanical propertiesMechanical data
Open side panel: No
Protective circuitDirection of action: Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground
Maximum continuous voltage UC: 43 VÂDC
30 VÂAC
Rated current: 600 mA (40°C)
Residual current IPE: ≤ 1 µA
Nominal discharge current In (8/20) µs: 10 kA
Pulse discharge current Iimp (10/350)µs: 2.5 kA
Total discharge current Itotal (8/20)µs: 10 kA
Voltage protection level Up (line-line): ≤ 80 V (C1 - 1ÂkV / 500ÂA)
≤ 80 V (C1 - 1ÂkV / 500ÂA, >1µs)
≤ 150 V (C2 - 10 kV / 5 kA)
≤ 70 V (C2 - 10ÂkV / 5ÂkA, >1µs)
≤ 75 V (C3 - 100ÂA)
≤ 75 V (C3 - 100ÂA, >1µs)
Voltage protection level Up (line-earth): ≤ 900 V (C1 - 1ÂkV / 500ÂA)
≤ 100 V (C1 - 1ÂkV / 500ÂA, >1µs)
≤ 1 kV (C2 - 10 kV / 5 kA)
≤ 70 V (C2 - 10ÂkV / 5ÂkA, >1µs)
≤ 1200 V (C3 - 100ÂA)
≤ 70 V (C3 - 100ÂA, >1µs)
Voltage protection level Up (line-signalground): ≤ 90 V (C1 - 1ÂkV / 500ÂA)
≤ 90 V (C1 - 1ÂkV / 500ÂA, >1µs)
≤ 170 V (C2 - 10 kV / 5 kA)
≤ 70 V (C2 - 10ÂkV / 5ÂkA, >1µs)
≤ 75 V (C3 - 70ÂA)
≤ 75 V (C3 - 70ÂA, >1µs)
Response time tA (line-line): ≤ 1 ms
Response time tA (line-earth): ≤ 55 ms
Response time tA (line-signalground): ≤ 1 ms
Input attenuation aE, sym.: typ. 0.3 dB (≤ 10 MHz/150 Ω)
Cut-off frequency fg (3ÂdB), sym. in 150ÂΩ system: typ. 60 MHz
Capacity (Core-Core): typ. 25 pF
Capacity (Core-Earth): typ. 50 pF
Capacity (line-signalground): typ. 25 pF
Resistance per path: 1.65 Ω ±20Â%
Surge protection fault message: optical
Max. required back-up fuse: 630 mA (FF)
Impulse durability (line-line): C1 - 1ÂkV / 500ÂA
C2 - 10ÂkV / 5ÂkA
C2 - 10ÂkA
C3 - 100ÂA
Impulse durability (line-earth): C1 - 1ÂkV / 500ÂA
C2 - 10ÂkV / 5ÂkA
C2 - 10ÂkA
C3 - 100ÂA
D1 - 2.5ÂkA
Impulse durability (line-signalground): C1 - 1ÂkV / 500ÂA
C2 - 10ÂkV / 5ÂkA
C2 - 10ÂkA
C3 - 70ÂA
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP20
Ambient temperature (operation): -40°C ... 85°C
Ambient temperature (storage/transport): -40°C ... 85°C
Altitude: ≤ 4000 m (amsl)
Permissible humidity (operation): 5 % ... 95 % (non-condensing)
Standards and regulationsStandards/specifications: IEC 61643-21
Note: 2000 + A1:2008 + A2:2012
EN 61643-21
Standards/specifications: ENÂ61643-21
Note: 2001 + A1:2009 + A2:2013
MountingMounting type: DIN rail: TH 35 - 7.5 mm
