| Product properties | IEC test classification: C1 C2 C3 D1 Type: Male Product type: Surge protection for MCR technology Product family: PLUGTRAB PT Number of positions: 2 Surge protection fault message: none |
| Electrical properties | Nominal voltage UN: 230 VÃAC Indicator/remote signaling Switching function: N/C contact |
| Connection data | Connection method: Screw connection (in connection with the base element) Screw thread: M3 Tightening torque: 0.8 Nm Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12 |

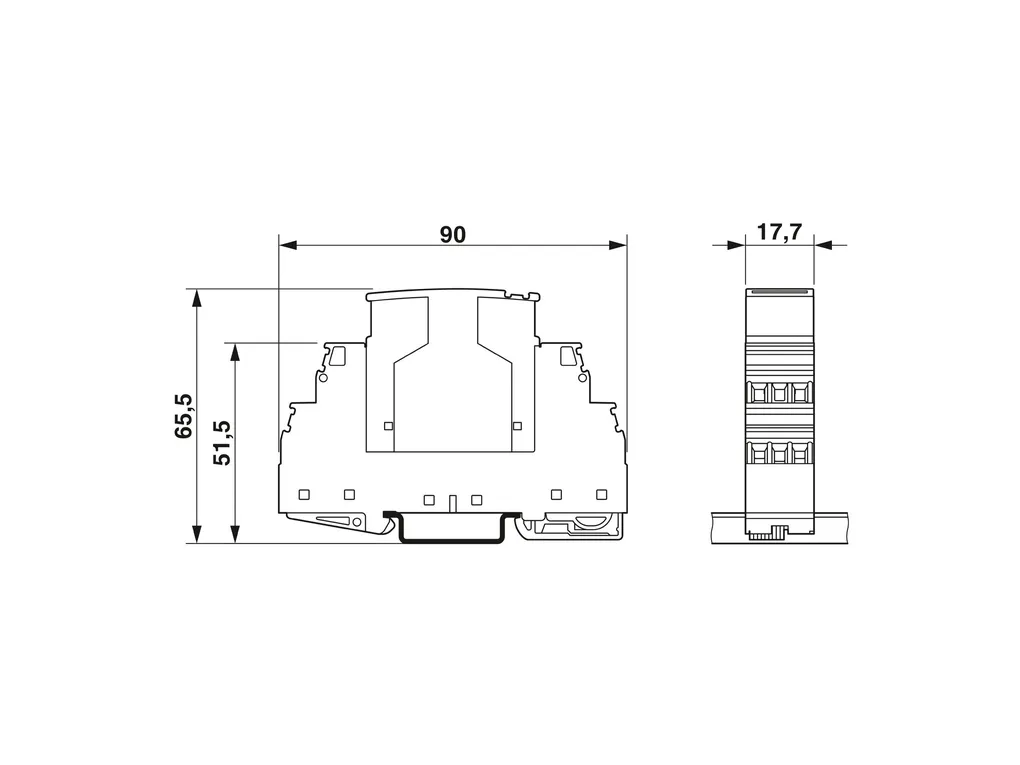

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ccdf98a6bdd749498f6c4126115c9c5f/-S204x204-FJPG Width: 17.5 mm Height: 44.8 mm Depth: 51.7 mm Horizontal pitch: 1 Div. Complete module width: 17.7 mm Complete module height: 90 mm Complete module depth: 65.5 mm |
| Material specifications | Flammability rating according to UL 94: V-0 Housing material: PA 6.6 |
| Mechanical properties | Mechanical data Open side panel: No |
| Protective circuit | Direction of action: Line-Line & Line-Earth Ground Maximum continuous voltage UC: 250 VÃAC Rated current: 6 A Operating effective current IC at UC: ââ°¤ 2 õA Residual current IPE: ââ°¤ 2 õA (at UN) Nominal discharge current In (8/20) õs: 3 kA Pulse discharge current Iimp (10/350)Ãõs: 500 A Total discharge current Itotal (8/20)Ãõs: 8 kA Total discharge current Itotal (10/350)Ãõs: 1 kA Max. discharge current Imax (8/20) õs: 8 kA Nominal pulse current Ian (10/1000) õs (line-earth): 100 A Output voltage limitation at 1 kV/õs (line-earth) static: ââ°¤ 1.4 kV Residual voltage at In (conductor-conductor): ââ°¤ 2 kV Residual voltage at In (conductor-ground): ââ°¤ 1 kV Residual voltage with Ian (10/1000) õs (line-line): ââ°¤ 1.4 kV Residual voltage with Ian (10/1000) õs (line-earth): ââ°¤ 700 V Max. energy absorption (2 ms): 150 J Voltage protection level Up (line-line): ââ°¤ 2.5 kV (C2 - 4 kV / 2 kA) ââ°¤ 1.8 kV (C3 - 100ÃA) ââ°¤ 2.6 kV (D1 - 500ÃA) Voltage protection level Up (line-earth): ââ°¤ 1.1 kV (C1 - 500 A) ââ°¤ 1.5 kV (C2 - 4 kV / 2 kA) ââ°¤ 1.6 kV (C3 - 100ÃA) ââ°¤ 1.8 kV (D1 - 500ÃA) Response time tA: ââ°¤ 100 ns Capacity (Core-Core): typ. 1.5 pF Capacity (Core-Earth): typ. 3 pF Resistance per path: 0 é Surge protection fault message: none Max. required back-up fuse: 6 A (gL/gG) Impulse durability (line-earth): C2 - 4ÃkV / 2ÃkA C3 - 100ÃA D1 - 500ÃA |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 2000 m (amsl) |
| Standards and regulations | Standards/specifications: ENÃ61643-21 Note: 2002 |
| Mounting | Mounting type: on base element |
