| Product properties | IEC test classification: B2 C1 C2 C3 D1 Type: DIN rail module, one-piece Product type: Surge protection for MCR technology Product family: TERMITRAB complete Wire pairs per module: 1 Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Connection data | Connection method: Push-in connection Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12 |

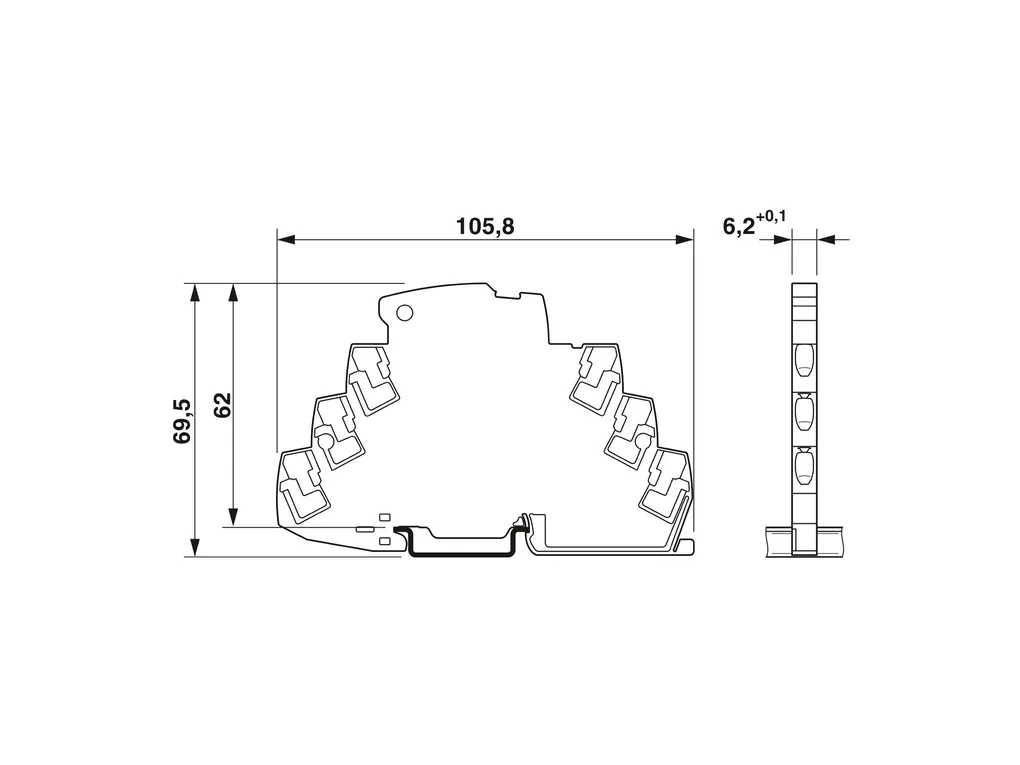

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/08a8d5d69369e344ae6343008a3a9f34/-S204x204-FJPG Width: 6.2 mm +0.1Ãmm Height: 105.8 mm Depth: 69.5 mm (incl. DIN rail 7.5Ãmm) |
| Material specifications | Flammability rating according to UL 94: V-0 Insulating material: PBT Housing material: PBT |
| Mechanical properties | Mechanical data Open side panel: No |
| Protective circuit | Maximum continuous voltage UC: 60 VÃDC Rated current: 200 mA Operating effective current IC at UC: ââ°¤ 1 õA Residual current IPE: ââ°¤ 1 õA Nominal discharge current In (8/20) õs (line-line): 5 kA Nominal discharge current In (8/20) õs (line-ground): 5 kA Pulse discharge current Iimp (10/350)Ãõs (line-line): 0.5 kA Pulse discharge current Iimp (10/350)Ãõs (line-earth): 0.5 kA Total discharge current Itotal (8/20)Ãõs: 10 kA Voltage protection level Up (line-line): ââ°¤ 650 V (B2 - 1ÃkV) ââ°¤ 800 V (B2 - 4ÃkV) ââ°¤ 1 kV (C1 - 1ÃkV / 500ÃA) ââ°¤ 1.4 kV (C2 - 10 kV / 5 kA) ââ°¤ 850 V (C3 - 15ÃA) ââ°¤ 1.1 kV (C3 - 25ÃA) ââ°¤ 1.4 kV (C3 - 100ÃA) Voltage protection level Up (line-earth): ââ°¤ 600 V (B2 - 1ÃkV) ââ°¤ 750 V (B2 - 4ÃkV) ââ°¤ 750 V (C1 - 1ÃkV / 500ÃA) ââ°¤ 800 V (C2 - 10 kV / 5 kA) ââ°¤ 650 V (C3 - 15ÃA) ââ°¤ 750 V (C3 - 25ÃA) ââ°¤ 1.2 kV (C3 - 100ÃA) Response time tA (line-line): ââ°¤ 100 ns Response time tA (line-earth): ââ°¤ 100 ns Input attenuation aE, sym.: typ. 1 dB (ââ°¤Ã40ÃMHzÃ/Ã150Ãé) Cut-off frequency fg (3ÃdB), sym. in 150Ãé system: typ. 100 MHz Capacity (Core-Core): typ. 10 pF Resistance per path: 6 é Surge protection fault message: none Impulse durability (line-line): B2 - 4ÃkV / 100ÃA C1 - 1ÃkV / 500ÃA C2 - 10ÃkV / 5ÃkA C3 - 100ÃA Impulse durability (line-earth): B2 - 4ÃkV / 100ÃA C1 - 1ÃkV / 500ÃA C2 - 10ÃkV / 5ÃkA C3 - 100ÃA D1 - 500ÃA Pulse reset time (line-line): ââ°¤Ã30Ãms Pulse reset time (line-earth): ââ°¤ 200Ãms |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: ââ°¤ 4000 m (amsl) Permissible humidity (operation): 5 % ... 95 % |
| Standards and regulations | Standards/specifications: IEC 61643-21 Note: 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 EN 61643-21 Standards/specifications: ENÃ61643-21 Note: 2001 + A1:2009 + A2:2013 |
| Mounting | Mounting type: DIN rail: TH 35 - 7.5 mm |
