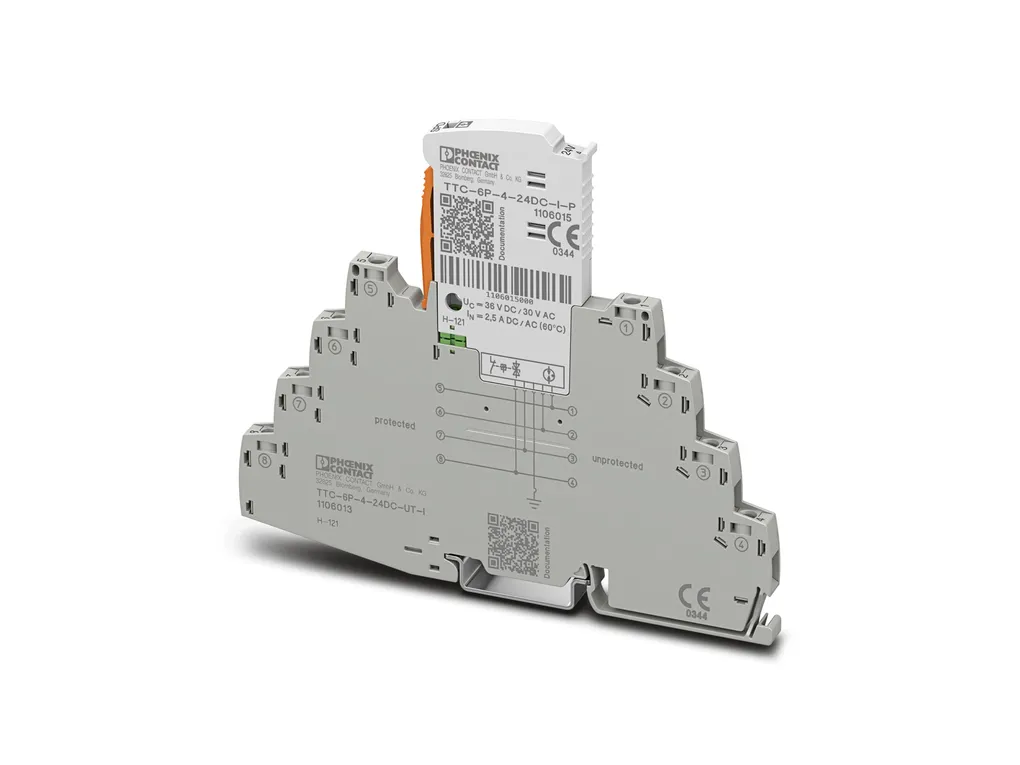

TTC-6P-4-24DC-UT-I - Surge protection device

Surge protection, consisting of protective plug and base element, with integrated status indicator for a 4-wire floating signal circuit with high nominal current. Ideal for 4-conductor measurements, e.g.,of temperature and weight.

Cod. Articolo: 1106013 Copia - Copy

Cod. Fornitore: 1106013 Copia - Copy

PHOENIX CONTACT

Product properties	IEC test classification: C1 C2 C3 D1 Type: DIN rail module, two-section, divisible Product type: Surge protection for MCR technology Product family: TERMITRAB complete Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Nominal voltage U_N: 24 VÃDC 24 VÃAC
Connection data	Connection method: Screw connection Screw thread: M3 Tightening torque: 0.5 Nm ... 0.6 Nm Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12

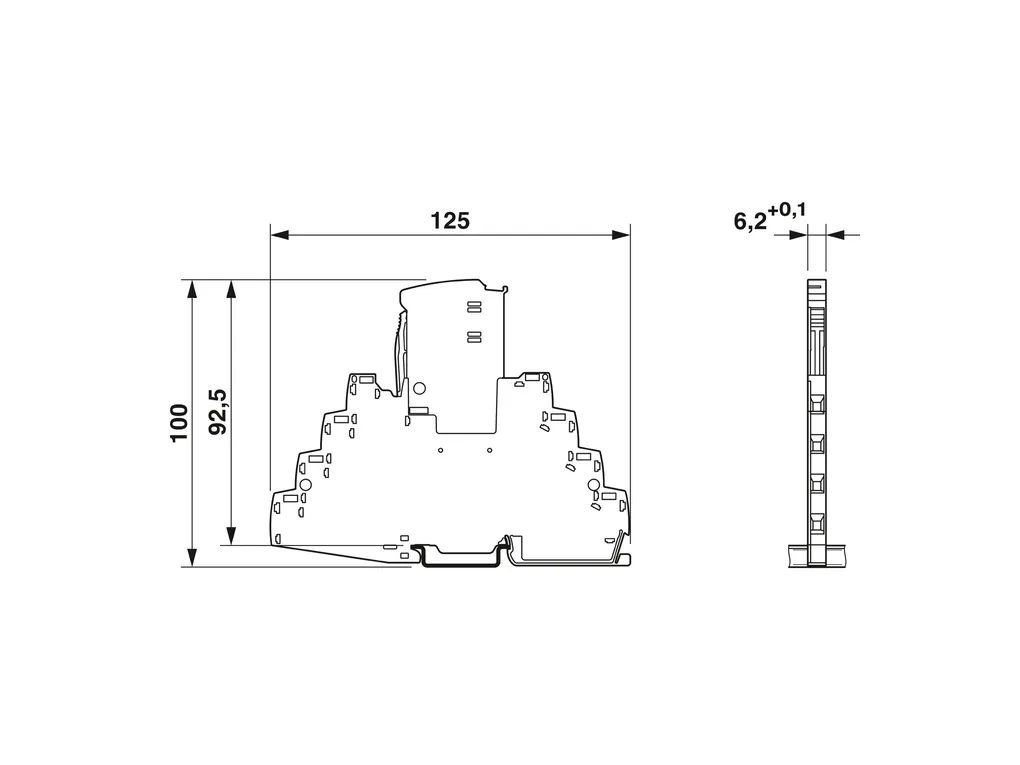

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/66330a33592451418c21406d5d82aafe/-S204x204-FJPG Width: 6.2 mm +0.1Ãmm Height: 125 mm Depth: 100 mm (incl. DIN rail 7.5Ãmm)
Material specifications	Flammability rating according to UL 94: V-0 Insulating material: PBT Housing material: PBT
Mechanical properties	Mechanical data Open side panel: No
Protective circuit	Direction of action: Line-Line & Line-Earth Ground Maximum continuous voltage U_C: 36 VÃDC 30 VÃAC Rated current: 2.5 A (60°CÃfor insulated systems) Operating effective current I_C at U_C: Ã¢Ã¢°¤ 5 ÃµA Residual current I_PE: Ã¢Ã¢°¤ 1 ÃµA Nominal discharge current I_n (8/20) Ãµs (line-line): 350 A Nominal discharge current I_n (8/20) Ãµs (line-ground): 5 kA Pulse discharge current I_imp (10/350)ÃÃµs (line-earth): 0.5 kA Total discharge current I_total (8/20)ÃÃµs: 10 kA Voltage protection level U_p (line-line): Ã¢Ã¢°¤ 100 V (C1 - 0.7 kV / 350 A) Ã¢Ã¢°¤ 100 V (C3 - 50ÃA) Ã¢Ã¢°¤ 80 V (C3 - 25ÃA) Voltage protection level U_p (line-earth): Ã¢Ã¢°¤ 900 V (C1 - 1ÃkV / 500ÃA) Ã¢Ã¢°¤ 900 V (C2 - 10 kV / 5 kA) Response time t_A (line-line): Ã¢Ã¢°¤ 1 ns Response time t_A (line-earth): Ã¢Ã¢°¤ 100 ns Input attenuation aE, sym.: typ. 0.3 dB (Ã¢Ã¢°¤ 12 MHz / 150 Ã©) Cut-off frequency fg (3ÃdB), sym. in 150ÃÃ© system: > 60 MHz Capacity (Core-Core): typ. 30 pF Capacity (Core-Earth): typ. 30 pF Resistance per path: 0.03 Ã© Surge protection fault message: optical Max. required back-up fuse: 2.5 A (F) Impulse durability (line-line): C1 - 700ÃV / 350ÃA C3 - 50ÃA Impulse durability (line-earth): C1 - 1ÃkV / 500ÃA C2 - 10ÃkV / 5ÃkA C3 - 100ÃA D1 - 500ÃA Additional technical data Max. total discharge current I _{total max} (8/20)ÃÃµs: 20 kA (1x)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 4000 m (amsl) Permissible humidity (operation): 5 % ... 95 %
Approvals	Conformity/Approvals UL, USA / Canada: Class I, Div. 2, Groups A, B, C, D T4A
Standards and regulations	Standards/specifications: IEC 61643-21 Note: 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 EN 61643-21 Standards/specifications: ENÃ61643-21 Note: 2001 + A1:2009 + A2:2013
Mounting	Mounting type: DIN rail: TH 35 - 7.5 mm
