Non disponibile

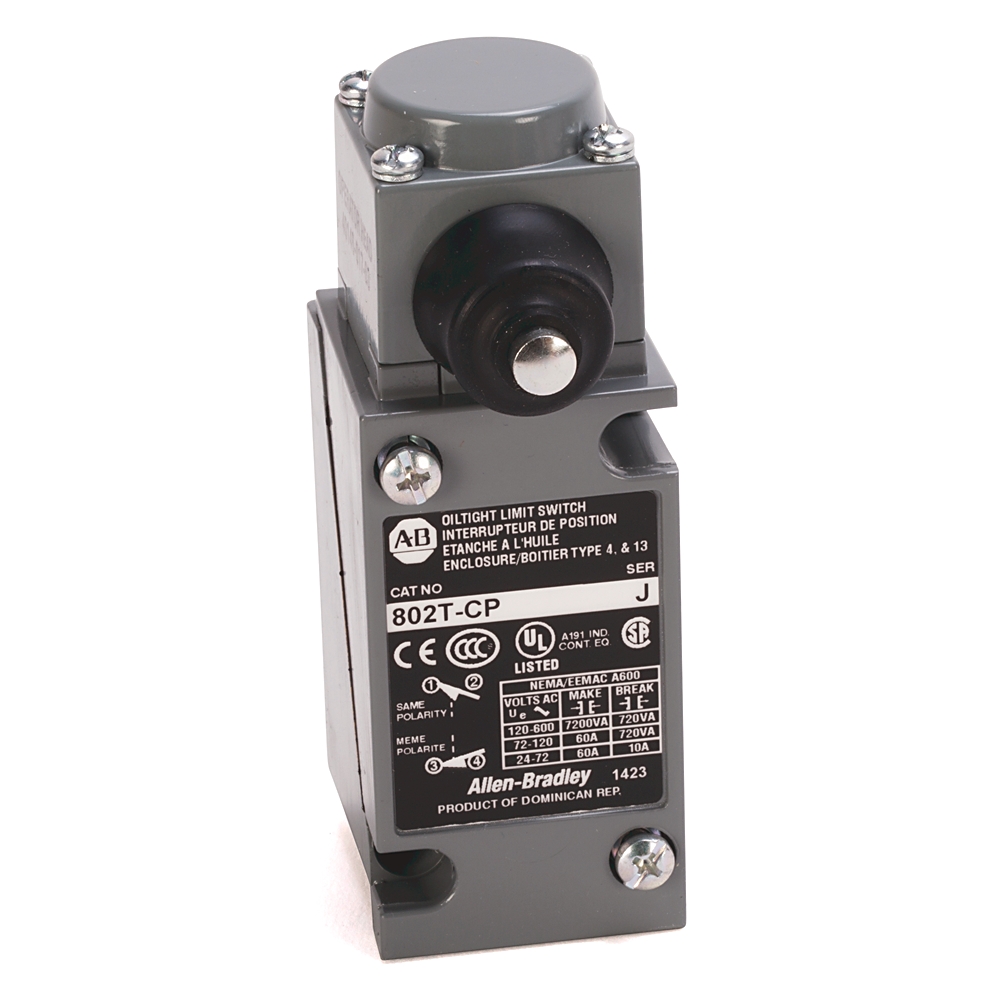

Plug-In Oiltight Limit Switch, Metal, 10 A Standard Energy, Side Push Rod, 4 Circuits, Standard Contacts, 2 Normally Open Contacts, 2 Normally Closed Contacts, Standard Low Temprature, -18Â°C, 110 Â°C High Temp Limit, Snap Acting, Push Accuation, Spring

Limit Switch, NEMA Type 4 and 13 Oiltight Construction, Plug-In, Side Push Rod, 4-Circuit, Head Only

Cod. Articolo: 802T-CTP1 Copia - Copy

Cod. Fornitore: 802T-CTP1 Copia - Copy

ROCKWELL AUTOMATION

Caratteristiche Tecniche

Download

Caratteristiche Tecniche

SWITCH DATAEnergy RatingStandard EnergyPlug-In or NonPlug-In StylePlug-InSwitch ComponentsOperator Head OnlyActuation TypeSide Push RodNumber of Circuits4-CircuitMode of OperationN/A (Push Type/Wobble/Whisker/Neutral)Safety SwitchNoTravel to Operate Contacts (Nominal)3.3mm (0.131in)Torque to Operate Contacts (Max.)24.9N (5.6lb)Travel to Reset Contacts (Max.)1.3mm (0.052in)Maximum Travel6.0mm (0.236in)OPERATING LEVER DATAOperating LeverOperating Lever Not SelectedAdditional DetailsTypeOiltight Limit Switches

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

limit-td001_-en-p.pdf

Altri prodotti correlati

Di seguito alcuni articoli correlati a quello che stai vedendo

802T Limit Switch Levers, Cast Rear Roller Lever, 1.5 in. Lever Length, Nylon Roller, 1.5 in. Roller Diameter, 0.28 in. Roller Width
Cod. Articolo: 802T-W1G

Operating Lever, Roller Lever, Non-Adjustable, 1.5 In, Roller On Rear, Nylon, 1.5 In, 0.28 In

Scopri di più →

Actuator, 802MC Limit Switch Operator, Front Roller Lever, Corrosion Resistant, 1.19" to 3.0" Adjustable Radius, 0.75" Dia x 0.25" Wide Roller
Cod. Articolo: 802MC-W2B

Operating Lever, Corrosion Resistant Roller Lever, Adjustable, 1.19 to 3.0 In, Roller On Front, Type 316 Stainless Steel, 0.75 In, 0.25 In

Scopri di più →

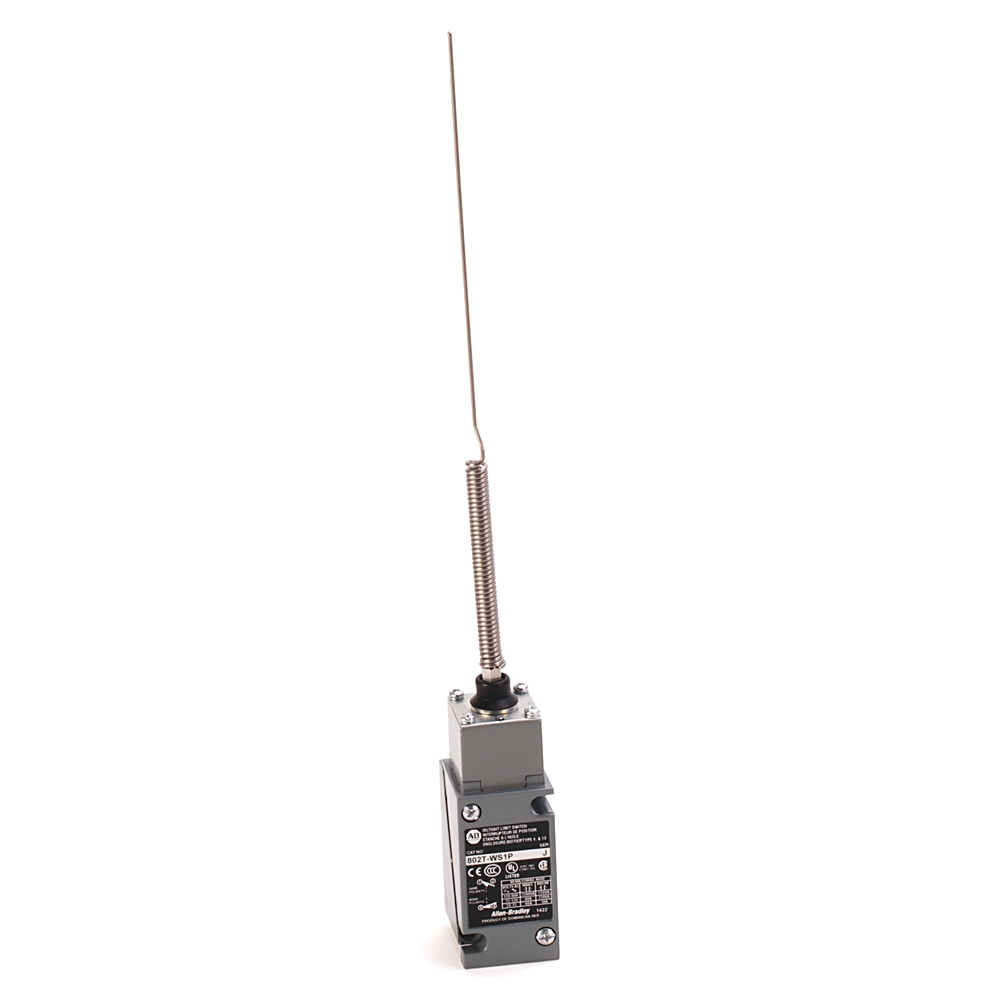

Plug-In Oiltight Limit Switch, Metal, 10 A Standard Energy, Wobble Stick, 2 Circuits, Standard Contacts, 1 Normally Open Contact, 1 Normally Closed Contact, Standard Low Temprature, -18Â°C, 54 Â°C High Temp Limit, Snap Acting, Push Accuation, Spring Retu
Cod. Articolo: 802T-WS1P1

Limit Switch, NEMA Type 4 and 13 Oiltight Construction, Plug-In, Wobble Stick, Wire, 2-Circuit, Head Only

Scopri di più →
