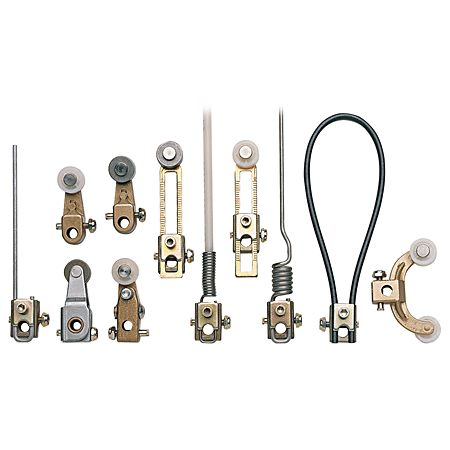

Actuator, 802MC Limit Switch Operator, Front Roller Lever, Corrosion Resistant, 1.19" to 3.0" Adjustable Radius, 0.75" Dia x 0.25" Wide Roller

Operating Lever, Corrosion Resistant Roller Lever, Adjustable, 1.19 to 3.0 In, Roller On Front, Type 316 Stainless Steel, 0.75 In, 0.25 In

Cod. Articolo: 802MC-W2B Copia - Copy

Cod. Fornitore: 802MC-W2B Copia - Copy

ROCKWELL AUTOMATION

Caratteristiche Tecniche

Specifiche

Download

Caratteristiche Tecniche

OPERATING LEVER DATALever TypeCorrosion Resistant Roller LeverAdjustable or Non-AdjustableAdjustableRadius1.19 to 3.0 InRoller MaterialType 316 Stainless SteelRoller Diameter0.75 InRoller Width0.25 InRoller PositionRoller On FrontADDITIONAL INFORMATIONMessageOperating Lever 802T-W3F Should Not Be Used With 802M-NPY5 or 802M-ASY5 Switches.MessageDo Not Use 802T-W7, 802T-W7A, 802T-W7B On Maintained Contact Limit Switches.

Specifiche

Operating Lever Data
Lever Type:Corrosion Resistant Roller Lever
Adjustable or Non-Adjustable:Adjustable
Radius:1.19 to 3.0 In
Roller Material:Type 316 Stainless Steel
Roller Diameter:0.75 In
Roller Width:0.25 In
Roller Position:Roller On Front
Additional Information
Message:Operating Lever 802T-W3F Should Not Be Used With 802M-NPY5 or 802M-ASY5 Switches.
Message:Do Not Use 802T-W7, 802T-W7A, 802T-W7B On Maintained Contact Limit Switches.

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

limit-td001_-en-p.pdf
