PT 2X1+F-BE/FM - Surge protection base-element

Base element to accept a protective plug with diagnostic and status indicator for two signal wires with common reference potential, integrated spark gap to provide a high-resistance connection between the ground of the protective circuit of the plug and ground potential.
Cod. Articolo: 2920049
Cod. Fornitore: 2920049
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: In the base elements PT...+F-BE/FM, the connections 9/10 (GND) are linked to the mounting foot via a gas-filled surge arrester.
Product propertiesType: Base element, DIN rail mounting
Product type: Base element
Product family: PLUGTRAB PT
Number of positions: 2
Electrical propertiesIndicator/remote signaling
Maximum operating voltage Umax. AC: 250 VÂAC
Max. operating current Imax: 0.2 A (250ÂVÂAC)
0.2 A (220 VÂDC)
1 A (60 V AC)
1 A (60ÂVÂDC)
Connection dataConnection method: Screw connection
Screw thread: M3
Tightening torque: 0.8 Nm
Conductor cross section flexible: 0.2 mm² ... 2.5 mm²
Conductor cross section rigid: 0.2 mm² ... 4 mm²
Conductor cross section AWG: 24 ... 12

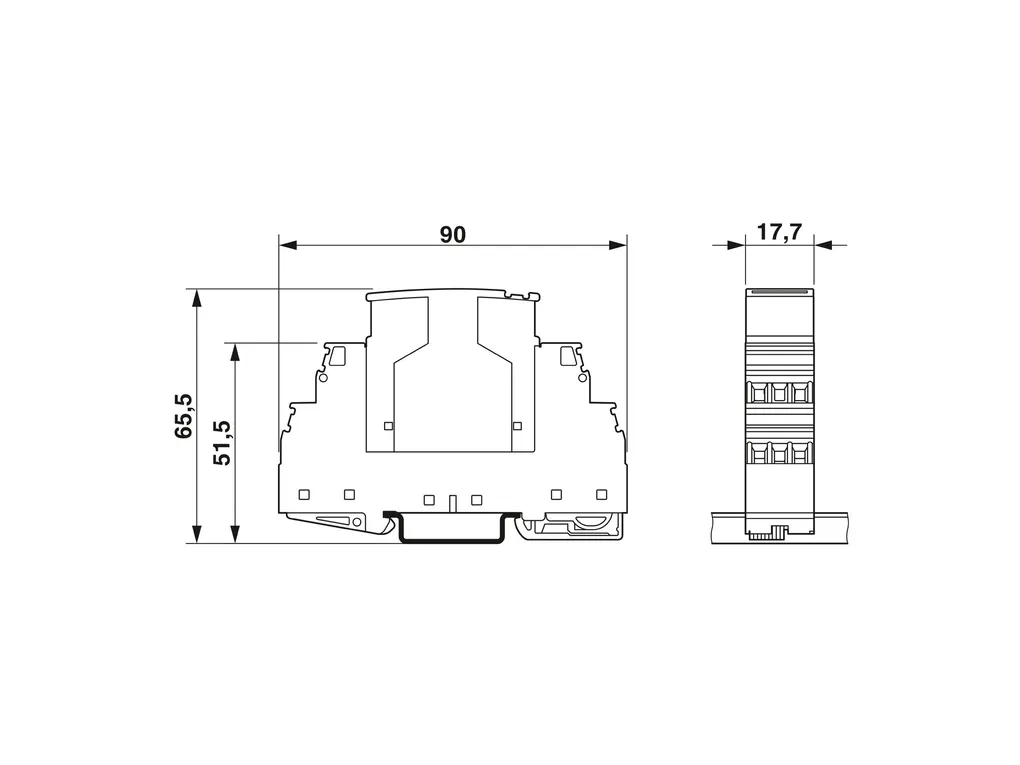

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ccdf98a6bdd749498f6c4126115c9c5f/-S204x204-FJPG
Width: 17.5 mm
Height: 90 mm
Depth: 51.7 mm
Horizontal pitch: 1 Div.
Complete module width: 17.7 mm
Complete module height: 90 mm
Complete module depth: 65.5 mm
Material specificationsFlammability rating according to UL 94: V-0
Mechanical propertiesMechanical data
Open side panel: No
Protective circuitDirection of action: Signal Ground/Shield-Earth Ground
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP20
Ambient temperature (operation): 40°C ... 85°C
MountingMounting type: DIN rail: 35 mm
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_00062.pdf

Flyer_00001.pdf

Flyer_00002.pdf

Manufacturer_declaration_00934.pdf

Manufacturer_declaration_02057.pdf

Package_slip_00350.pdf

Technical_drawing_41076.pdf
