PT-IQ-5-HF-5DC-P - Surge protection plug

Surge protection plug with integrated multi-stage status indicator on the module for five signal wires. For HF applications. Nominal voltage: 5 V DC

Cod. Articolo: 2800795 Copia - Copy

Cod. Fornitore: 2800795 Copia - Copy

PHOENIX CONTACT

Product properties	Type: Male Product type: Replacement plug Product family: PLUGTRAB IQ Wire pairs per module: 2 Insulation characteristics Pollution degree: 2
Electrical properties	Nominal voltage U_N: 5 VÃDC
Connection data	Connection method: pluggable

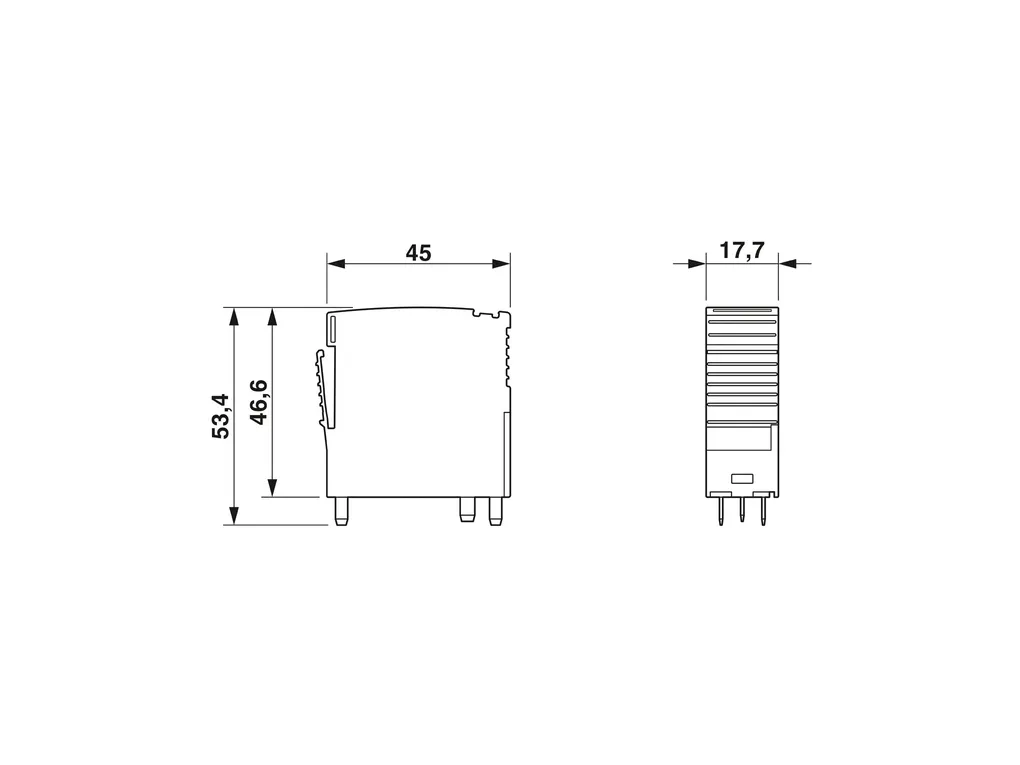

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b5446f667583404eaa1a059846ff2429/-S204x204-FJPG Width: 17.7 mm Height: 45 mm Depth: 46.6 mm Horizontal pitch: 1 Div. Complete module width: 17.7 mm Complete module height: 91.1 mm Complete module depth: 77.5 mm
Material specifications	Flammability rating according to UL 94: V-0 Housing material: PA 6.6
Protective circuit	Direction of action: Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground Maximum continuous voltage U_C: 6 VÃDC 4 VÃAC Rated current: 600 mA (40Ã°C) Surge protection fault message: Optical, multi-stage
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: max. 4000 m Permissible humidity (operation): 5 % ... 95 %
Standards and regulations	Air clearances and creepage distances Standards/regulations: IEC 60664-1 Standards/specifications: ENÃ61643-21/A1 IEC 61643-21/A2 ENÃ61000-6-2/A1 ENÃ61000-6-3 Note: 2009 2012 2011 2005
Mounting	Mounting type: on base element
