| Product properties | IEC test classification: II T2 EN type: T2 IEC power supply system: DC Type: Male Product type: Replacement plug Product family: SEC Family Number of positions: 1 Surge protection fault message: optical Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Nominal voltage UN: 48 VÃDC ... 60 VÃDC |
| Connection data | Connection method: pluggable |

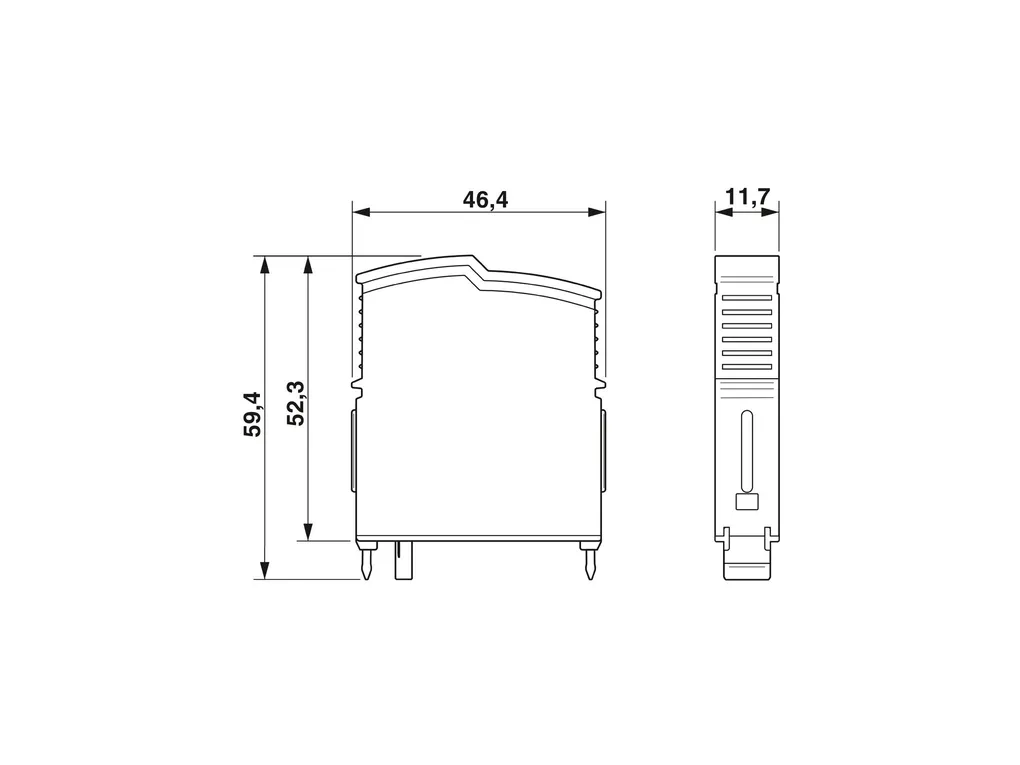

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e7cb446bdeab77498a0d023a1cee84c2/-S204x204-FJPG Width: 11.7 mm Height: 46.4 mm Depth: 59.4 mm Horizontal pitch: 0.6 Div. |
| Material specifications | Flammability rating according to UL 94: V-0 CTI value of material: 600 Insulating material: PA6.6-FR 20% GF PBT-FR Material group: I Housing material: PA 6.6-FR 20Ã% GF PBT-FR |
| Protective circuit | Mode of protection: (DC+) - (DC-) (DC+) - PE (DC-) - PE Direction of action: (DC+/DC-) - PE Nominal voltage UN: 60ÃVÃAC (TN) 48 VÃDC ... 60 VÃDC Maximum continuous voltage UC: 75 VÃDC 75 VÃAC Residual current IPE: ââ°¤ 50 õA DC Nominal discharge current In (8/20) õs: 20 kA Maximum discharge current Imax (8/20) õs: 40 kA Impulse discharge current (10/350)Ãõs, charge: 2 As Impulse discharge current (10/350)Ãõs, specific energy: 4 kJ/é Impulse discharge current (10/350)Ãõs, peak value limp: 4 kA Short-circuit current rating ISCCR: 0.2 kA DC (without backup fuse) 6 kA DC (for 20 A gG/B backup fuse) 10 kA AC (C63ÃA miniature circuit breaker) 25 kA AC (for a backup fuse of up to 315ÃAÃgG) 50 kA AC (for a backup fuse of up to 200ÃAÃgG) Voltage protection level Up: ââ°¤ 0.5 kV Residual voltage Ures: ââ°¤ 0.5 kV (at In) ââ°¤ 0.4 kV (at 10 kA) ââ°¤ 0.35 kV (at 5 kA) ââ°¤ 0.3 kV (at 2 kA) TOV behavior at UT: 87 VÃDC (5Ãs / withstand mode) 100 VÃAC (5Ãs / withstand mode) Response time tA: ââ°¤ 25 ns Max. backup fuse with V-type through wiring: 20 AÃDC (gG / B at ISCCR > 200 A) Max. backup fuse with branch wiring: 20 AÃDC (gG / B at ISCCR > 200 A) 315 A AC |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 6000 m (amsl) Permissible humidity (operation): 5 % ... 95 % Shock (operation): 30g (Half-sine / 11 ms / 3x ñX, ñY, ñZ) Vibration (operation): 5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
| Approvals | UL specifications Maximum continuous operating voltage MCOV: 75 VÃDC Short-circuit current rating (SCCR): 50 kA Voltage protection rating VPR: 400 V Nominal discharge current In: 20 kA Mode of protection: (DC+) - G (DC-) - G Nominal voltage: 48 VÃDC Power distribution system: DC SPD Type: 1CA |
| Standards and regulations | Standards/specifications: IEC 61643-11 Note: 2011 EN 61643-11 Standards/specifications: ENÃ61643-11 Note: 2012 |
| Mounting | Mounting type: on base element |
