| Product properties | IEC test classification: C1 C2 C3 D1 Type: DIN rail module, one-piece Product type: Surge protection for information technology Product family: TERMITRAB complete Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Nominal voltage UN: 12 VÃDC |
| Connection data | Connection method: Screw connection Screw thread: M3 Tightening torque: 0.5 Nm ... 0.6 Nm Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12 |
| Ex data | Maximum inner capacitance Ci: negligible Max. internal inductance Li: negligible Max. input current Ii: 400 mA (T4 / -40ðC ...Ã+50ðC) 250 mA (T4 / -40ðC ...Ã+70ðC) 350 mA (T6 / -40ðC ...Ã+35ðC) 100 mA (T6 / -40ðC ...Ã+70ðC) Max. input voltage Ui: 15 VÃDC Insulation voltage to ground: > 180 VÃDC Ambient temperature (operation): -40°C ... 70°C (with current derating) |

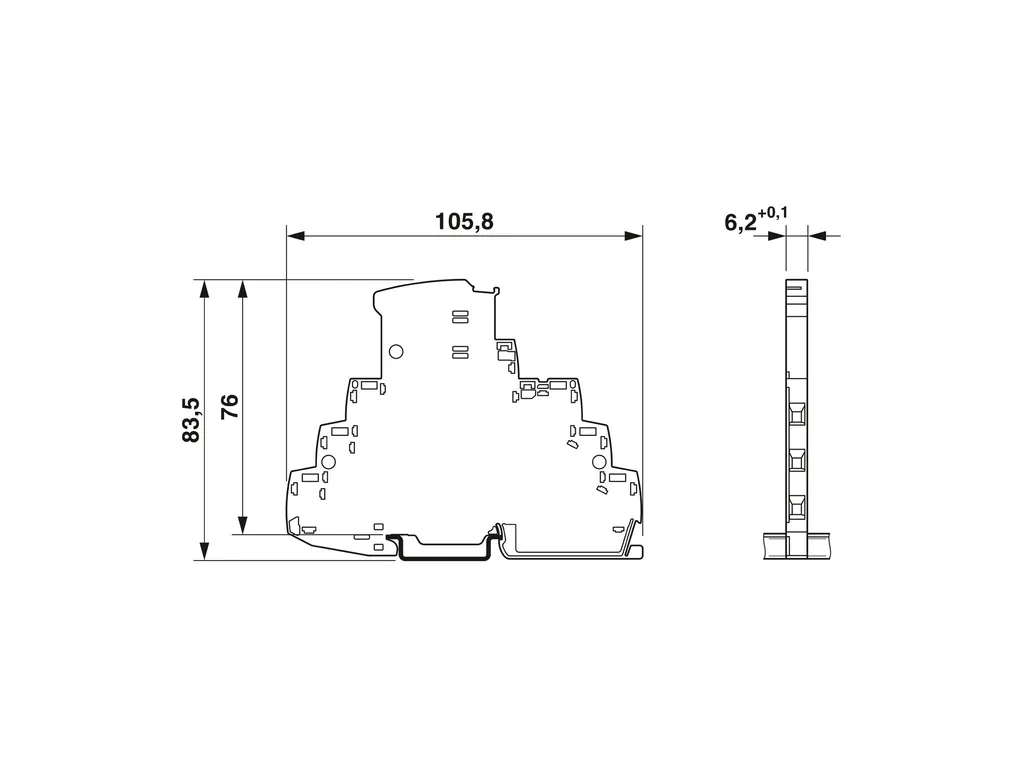

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f51f7b681a5ebf41986027fad50782e7/-S204x204-FJPG Width: 6.2 mm +0.1Ãmm Height: 105.8 mm Depth: 83.5 mm (incl. DIN rail 7.5Ãmm) |
| Material specifications | Flammability rating according to UL 94: V-0 Insulating material: PBT Housing material: PBT |
| Mechanical properties | Mechanical data Open side panel: No |
| Protective circuit | Direction of action: Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground Maximum continuous voltage UC: 15 VÃDC Rated current: 600 mA (40ðC) Operating effective current IC at UC: ââ°¤ 100 õA Residual current IPE: ââ°¤ 1 õA Nominal discharge current In (8/20) õs (line-line): 5 kA Nominal discharge current In (8/20) õs (line-ground): 5 kA Nominal discharge current In (8/20) õs (line-signal ground): 5 kA Pulse discharge current Iimp (10/350)Ãõs (line-line): 0.5 kA Pulse discharge current Iimp (10/350)Ãõs (line-earth): 0.5 kA Pulse discharge current Iimp (10/350)Ãõs (line-signalground): 0.5 kA Total discharge current Itotal (8/20)Ãõs: 10 kA Voltage protection level Up (line-line): ââ°¤ 145 V (C1 - 1ÃkV / 500ÃA) ââ°¤ 120 V (C2 - 10 kV / 5 kA) ââ°¤ 30 V (C3 - 100ÃA) Voltage protection level Up (line-earth): ââ°¤ 750 V (C1 - 1ÃkV / 500ÃA) ââ°¤ 750 V (C2 - 10 kV / 5 kA) ââ°¤ 1.2 kV (C3 - 100ÃA) Voltage protection level Up (line-signalground): ââ°¤ 80 V (C1 - 1ÃkV / 500ÃA) ââ°¤ 80 V (C2 - 10 kV / 5 kA) ââ°¤ 30 V (C3 - 100ÃA) Voltage protection level Up static (line-line): ââ°¤ 40 V (C1 - 1ÃkV / 500ÃA) ââ°¤ 95 V (C2 - 10 kV / 5 kA) Voltage protection level Up static (line-earth): ââ°¤ 750 V (C1 - 1ÃkV / 500ÃA) ââ°¤ 750 V (C2 - 10 kV / 5 kA) Voltage protection level Up static (line-signalground): ââ°¤ 40 V (C1 - 1ÃkV / 500ÃA) ââ°¤ 95 V (C2 - 10 kV / 5 kA) Response time tA (line-line): ââ°¤ 1 ns Response time tA (line-earth): ââ°¤ 100 ns Response time tA (line-signalground): ââ°¤ 1 ns Input attenuation aE, sym.: typ. 0.3 dB (ââ°¤Ã8.7ÃMHzÃ/Ã150Ãé) Input attenuation aE, asym.: typ. 0.3 dB (ââ°¤Ã10.5ÃMHzÃ/Ã150Ãé) Cut-off frequency fg (3ÃdB), sym. in 150Ãé system: typ. 60 MHz Cut-off frequency fg (3ÃdB), asym. (signal ground) in 150Ãé system: typ. 60 MHz Capacity (Core-Core): typ. 32 pF Capacity (line-signalground): typ. 32 pF Resistance per path: 1.65 é ñ20Ã% Surge protection fault message: optical Max. required back-up fuse: 630 mA (FF) Impulse durability (line-line): C1 - 1ÃkV / 500ÃA C2 - 10ÃkV / 5ÃkA C3 - 100ÃA Impulse durability (line-earth): C1 - 1ÃkV / 500ÃA C2 - 10ÃkV / 5ÃkA C3 - 100ÃA D1 - 500ÃA Impulse durability (line-signalground): C1 - 1ÃkV / 500ÃA C2 - 10ÃkV / 5ÃkA C3 - 100 A D1 - 500ÃA Pulse reset time (line-line): ââ°¤Ã30Ãms Pulse reset time (line-earth): ââ°¤ 30Ãms Pulse reset time (line-signalground): ââ°¤ 30Ãms |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: ââ°¤ 2000 m (amsl) Permissible humidity (operation): 5 % ... 95 % |
| Approvals | Conformity/Approvals UL, USA / Canada: Class I, Div. 2, Groups A, B, C, D T4 |
| Standards and regulations | Standards/specifications: ENÃ60079-0 ENÃ60079-11 Note: 2018 2012 EN 61643-21 Standards/specifications: ENÃ61643-21 IEC 60079-0 IEC 60079-11 IEC 61643-21 Note: 2001 + A1:2009 + A2:2013 2017 2008 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 |
| Mounting | Mounting type: DIN rail: TH 35 - 7.5 mm |
