| Product properties | Type: Single-level terminal block ââ¬Ã¢ separate PE connection Product type: Interference filters Number of positions: 1 Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Nominal voltage UN: 230 VÃAC |
| Connection data | Connection method: Screw connection Screw thread: M3 Tightening torque: 0.5 Nm Conductor cross section flexible: 0.2 mm² ... 4 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12 |
| Dimensions | Width: 6.2 mm Height: 66.5 mm Depth: 69.5 mm |
| Material specifications | Flammability rating according to UL 94: V-2 Housing material: PA |
| Mechanical properties | Mechanical data Open side panel: Yes |

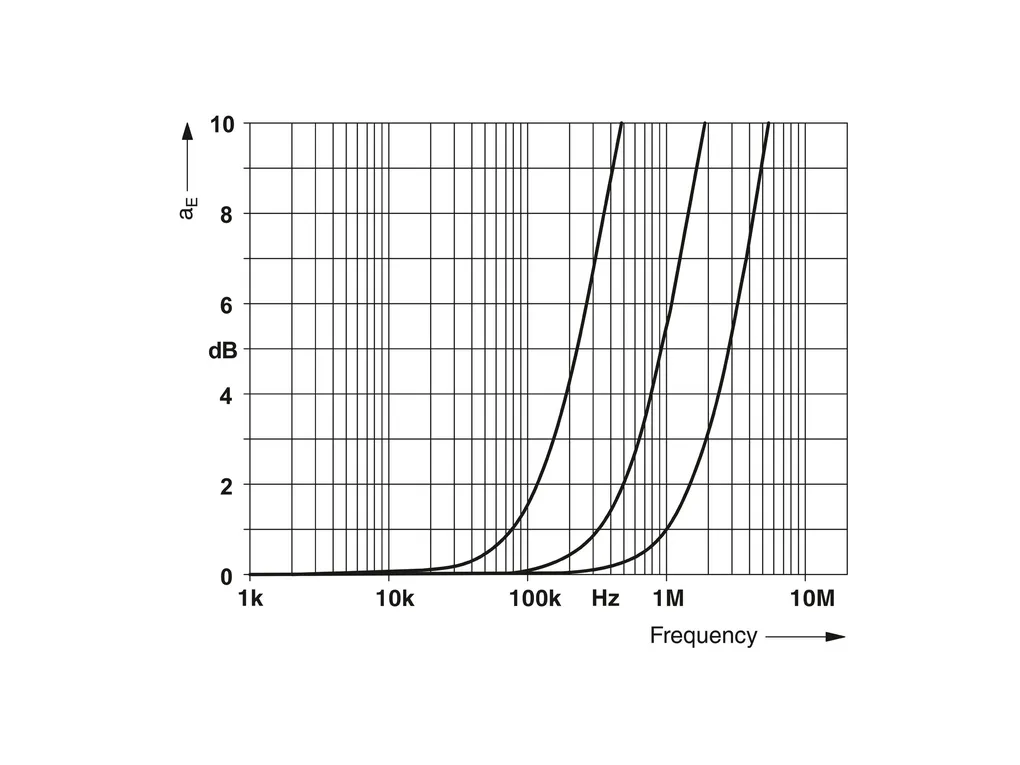

| Protective circuit | Direction of action: Line-Earth Ground Maximum continuous voltage UC: 250 VÃAC Rated current: 30 A (45ðC) Residual current IPE: typ. 0.5 mA Cut-off frequency fg (3ÃdB), asym. (PE) in 50Ãé system: typ. 2 MHz Cut-off frequency fg (3ÃdB), asym. (PE) in 150Ãé system: typ. 550 kHz (50ÃHz) Cut-off frequency fg (3ÃdB), asym. (PE) in 600Ãé system: typ. 170 kHz Capacity (Core-Earth): typ. 3.3 nF Y2 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 (with end cover) Ambient temperature (operation): -20°C ... 85°C |
| Standards and regulations | Standards/specifications: ENÃ60947-7-1 ENÃ60947-4-2 ENÃ60384-14 Note: 2009 |
| Mounting | Mounting type: DIN rail: 35 mm |
