| Notes | General Note: The product is also suitable for use in photovoltaic systems with max. short-circuit current ISCPV = 15 kA (in accordance with EN 50539-11: 2013). |

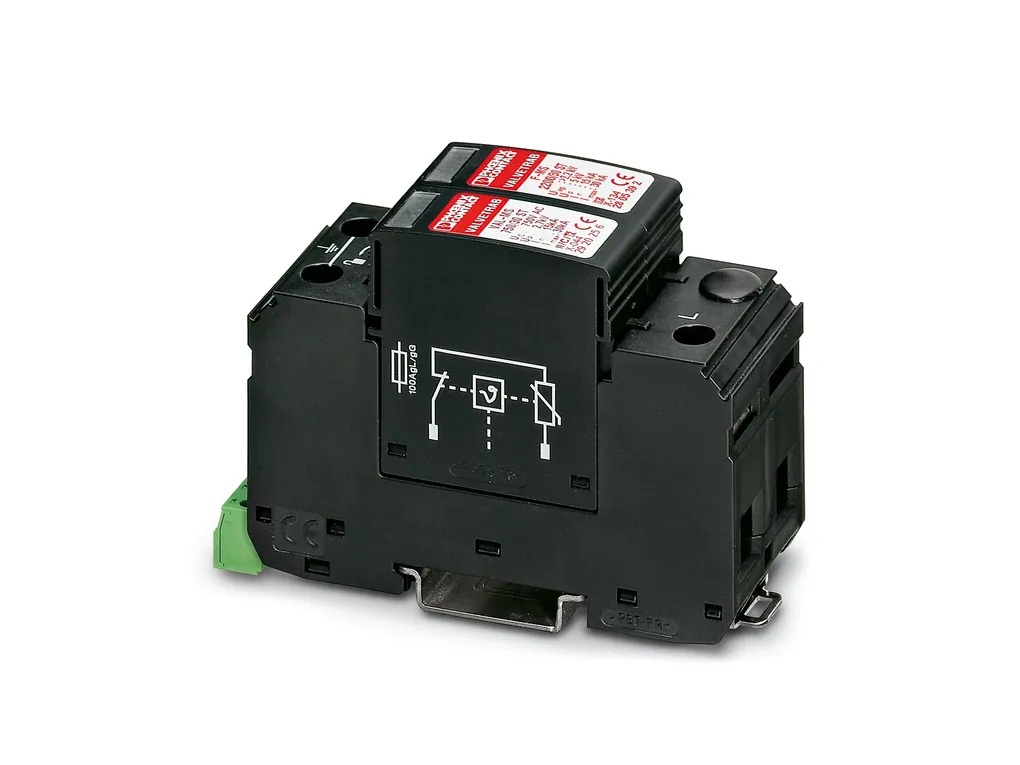

| Product properties | IEC test classification: PV II PV T2 EN type: T2 IEC power supply system: DC Type: DIN rail module, one-piece Product type: PV arrester Product family: VALVETRAB MB Installation location: Interior Installation location of the disconnect device: Internal Accessibility: Accessible Connection configuration: Y configuration SPD failure behavior: OCFM (Open-Circuit Failure Mode) Surge protection fault message: optical Insulation characteristics Pollution degree: 2 |
| Connection data | Connection method: Screw connection Screw thread: M5 Tightening torque: 3 Nm Stripping length: 16 mm Conductor cross section flexible: 2.5 mm² ... 35 mm² Conductor cross section AWG: 14 ... 2 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f287b5e8e540194fb41b84c8d6131892/-S204x204-FJPG Width: 71.2 mm Height: 120 mm Depth: 65.5 mm (incl. DIN rail 7.5Ãmm) Horizontal pitch: 4 Div. |
| Material specifications | Flammability rating according to UL 94: V-0 Insulating material: PA 6.6 PBT Housing material: PA 6.6 |
| Mechanical properties | Mechanical data Open side panel: No |
| Protective circuit | Mode of protection: (L+) - (L-) (L+) - PE (L-) - PE Direction of action: (L+)-PE & (L-)-PE & (L+)-(L-) Rated load current IL: 50 A Residual current IPE: ââ°¤ 55 õA DC ââ°¤ 430 õA AC Standby power consumption PC: ââ°¤ 85 mVA Nominal discharge current In (8/20) õs: 20 kA Maximum discharge current Imax (8/20) õs: 40 kA Total discharge current Itotal (8/20)Ãõs: 40 kA Voltage protection level Up: ââ°¤ 4.5 kV Residual voltage Ures: ââ°¤ 4.5 kV (at In) ââ°¤ 3.3 kV (at 3ÃkA) ââ°¤ 3.6 kV (at 6.25 kA) ââ°¤ 3.8 kV (at 10 kA) ââ°¤ 4.2 kV (at 15 kA) ââ°¤ 5.4 kV (at 40 kA) Response time tA: ââ°¤ 25 ns PV protective circuit Connection configuration: Y configuration SPD failure behavior: OCFM (Open-Circuit Failure Mode) Protective circuit DC voltage side (DC) Open circuit voltage UOCSTC: ââ°¤ 1250 VÃDC Maximum discharge current Imax (8/20) õs: 40 kA Response time tA: ââ°¤ 25 ns Total discharge current Itotal (8/20)Ãõs: 40 kA Insulation resistance Riso: > 5 Gé (at 500 V DC) Nominal discharge current In (8/20) õs: 20 kA Rated load current IL: 50 A Continuous operating current ICPV: < 55 õA Maximum continuous operating voltage UCPV: 1500 VÃDC Short-circuit current rating ISCPV: 2000 A Residual voltage Ures: ââ°¤ 4.5 kV (at In) ââ°¤ 3.3 kV (at 3ÃkA) ââ°¤ 3.6 kV (at 6.25 kA) ââ°¤ 3.8 kV (at 10 kA) ââ°¤ 4.2 kV (at 15 kA) ââ°¤ 5.4 kV (at 40 kA) Residual current IPE: ââ°¤ 55 õA DC ââ°¤ 430 õA AC Voltage protection level Up: ââ°¤ 4.5 kV Standby power consumption PC: ââ°¤ 85 mVA |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 (only when all terminal points are used) Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 6000 m (amsl) Permissible humidity (operation): 5 % ... 95 % Shock (operation): 50g (Half-sine / 11 ms / 3x ñX, ñY, ñZ) Vibration (operation): 5g (5 - 500 Hz/2.5 h/X, Y, Z) |
| Standards and regulations | Standards/specifications: ENÃ61643-31 IEC 61643-31 Note: 2019 2018 |
| Mounting | Mounting type: DIN rail: 35 mm |
