| Product properties | IEC test classification: PV EN type: PVï² Product type: PV arrester Product family: PRINTRAB Installation location: Interior Installation location of the disconnect device: Internal Accessibility: Accessible Connection configuration: Y configuration SPD failure behavior: OCFM Insulation characteristics Overvoltage category: II |
| Electrical properties | Nominal frequency fN: 50 Hz (60ÃHz) Dielectric strength: < 5.8 kV DC (1Ãmin) Indicator/remote signaling Connection name: NC/NO Switching function: normal/deterioration Operating voltage: 30 VÃAC 30 VÃDC Operating current: 1 A AC 1 AÃDC |

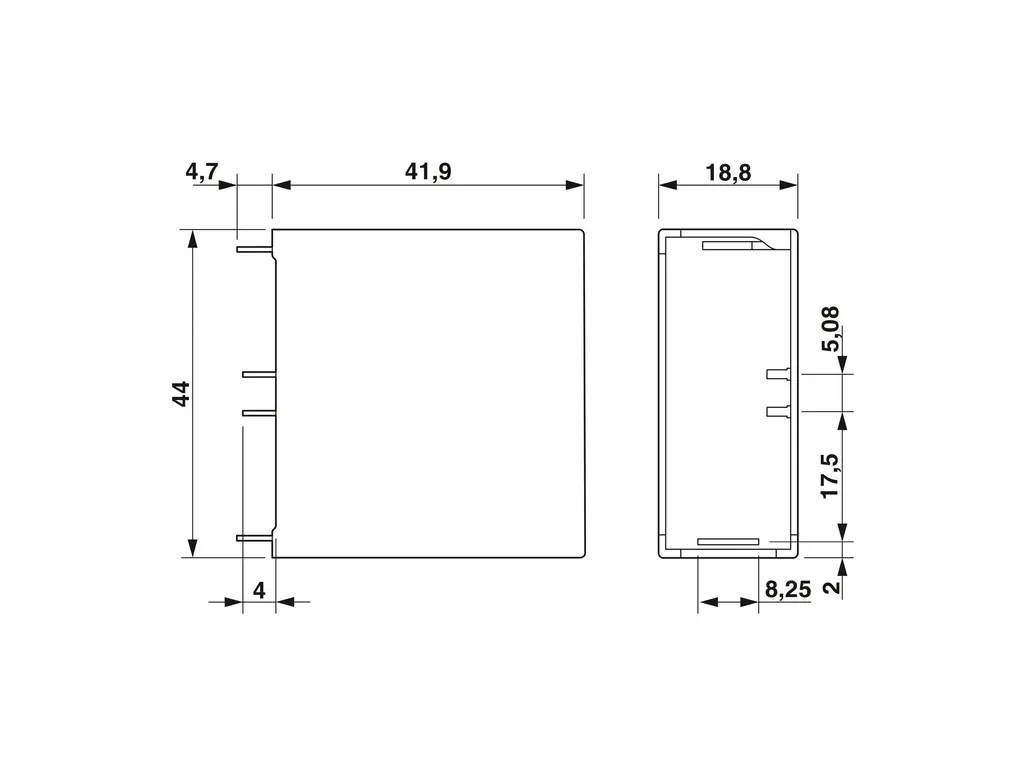

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7c163b6322d195419144f8ceb34ee7d8/-S204x204-FJPG Width: 18.8 mm Height: 44 mm Depth: 41.9 mm (Without pin length) |
| Material specifications | Flammability rating according to UL 94: V-0 CTI value of material: 600 Insulating material: PBT 10 % GF / PA 6.6 Material group: I Housing material: PBT 10Ã% GF/PA 6.6 |
| Protective circuit | Nominal voltage UN: 500ÃVÃAC (IT) Nominal frequency fN: 50 Hz (60ÃHz) Maximum continuous voltage UC: 550 VÃAC (single item) Residual current IPE: ââ°¤ 100 õA (Ucpv/Single) ââ°¤ 100 õA () Nominal discharge current In (8/20) õs: 20 kA Maximum discharge current Imax (8/20) õs: 40 kA Short-circuit current rating ISCCR: 25 kA Voltage protection level Up: ââ°¤ 2.4 kV (Single) ââ°¤ 4.6 kV (2 serial connections) Response time tA: ââ°¤ 25 ns Max. backup fuse with branch wiring: 125 A (aR) PV protective circuit Connection configuration: Y configuration SPD failure behavior: OCFM Protective circuit DC voltage side (DC) Maximum discharge current Imax (8/20) õs: 40 kA Response time tA: ââ°¤ 25 ns Insulation resistance Riso: > 5 Mé () Max. backup fuse with branch wiring: 125 A (aR) Nominal discharge current In (8/20) õs: 20 kA Continuous operating current ICPV: ââ°¤ 20 õA (2 serial connections) Maximum continuous operating voltage UCPV: 750 VÃDC (Single) 1500 VÃDC (2 serial connections) Short-circuit current rating ISCPV: 2000 A Residual current IPE: ââ°¤ 100 õA (Ucpv/Single) ââ°¤ 100 õA () Voltage protection level Up: ââ°¤ 2.4 kV (Single) ââ°¤ 4.6 kV (2 serial connections) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP00 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: ââ°¤ 5000 m (Standard insulation) ââ°¤ 3000 m (Reinforced insulation) Permissible humidity (operation): 5 % ... 95 % Shock (operation): 25g ñX, ñY, ñZ () Vibration (operation): 5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
| Standards and regulations | Standards/specifications: IEC 61643-31 ENÃ61643-31 |
| Mounting | Mounting type: PCB mounting |
