2905496 PHOENIX CONTACT - Technology Bsa

Notes	General Note: This item is a replacement base element for accommodating surge protection plugs from the PLUGTRAB PT-IQ product family (note compatibility). The base element contains the contacts that convey the remote signaling and power supply to the protective plug.
Product properties	Type: Base element, DIN rail mounting Product type: Base element Product family: PLUGTRAB IQ Number of positions: 3 Insulation characteristics Overvoltage category: III Pollution degree: 2
Connection data	Connection method: Screw connection Screw thread: M3 Tightening torque: 0.5 Nm Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 14

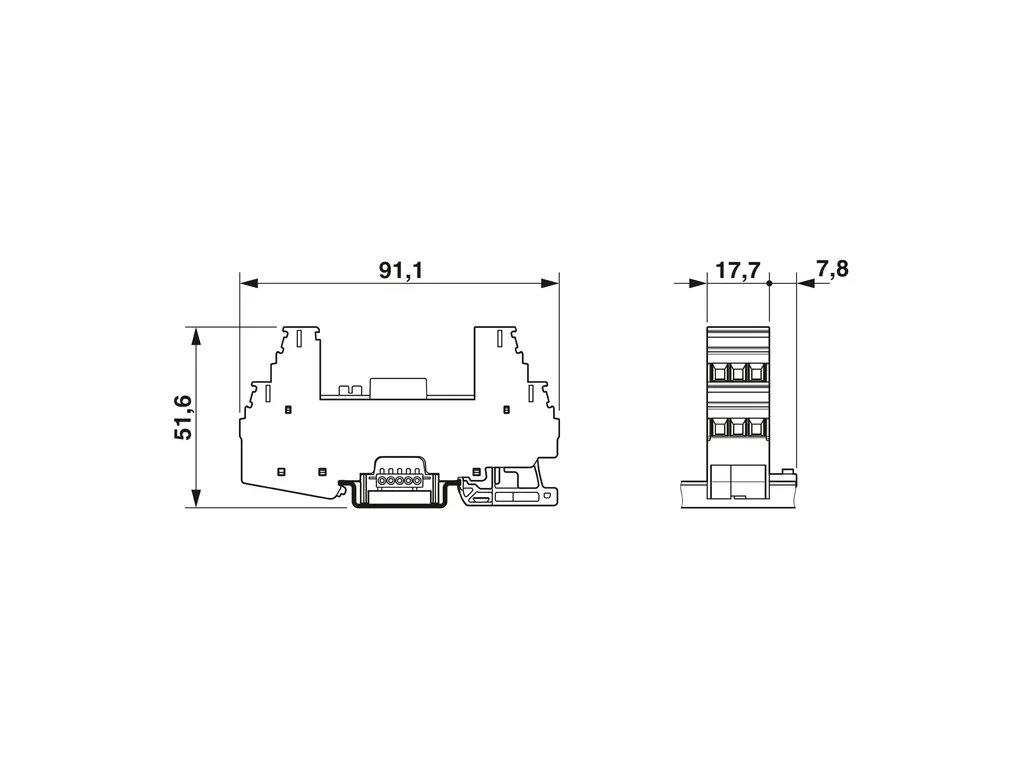

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4647bb8e90ee1c4cb81ccd3aae11f0ef/-S204x204-FJPG Width: 17.7 mm Height: 91.1 mm Depth: 51.6 mm Horizontal pitch: 1 Div.
Material specifications	Flammability rating according to UL 94: V-0 Housing material: PA 6.6
Mechanical properties	Mechanical data Open side panel: No
Protective circuit	Rated current: 350 mA Resistance per path: 1.2 Ã© Ã±5Ã% Surge protection fault message: none
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 (with inserted protective plug) Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 2000 m (amsl)
Standards and regulations	Standards/specifications: ENÃ61643-21 IEC 61643-21 ENÃ60079-0 ENÃ60079-11 ENÃ60079-15 IEC 60079-0 IEC 60079-11 IEC 60079-15 Note: A2:2013 A2:2012 2018 2012 2010 2017 2011 2010
Mounting	Mounting type: DIN rail: 35 mm
