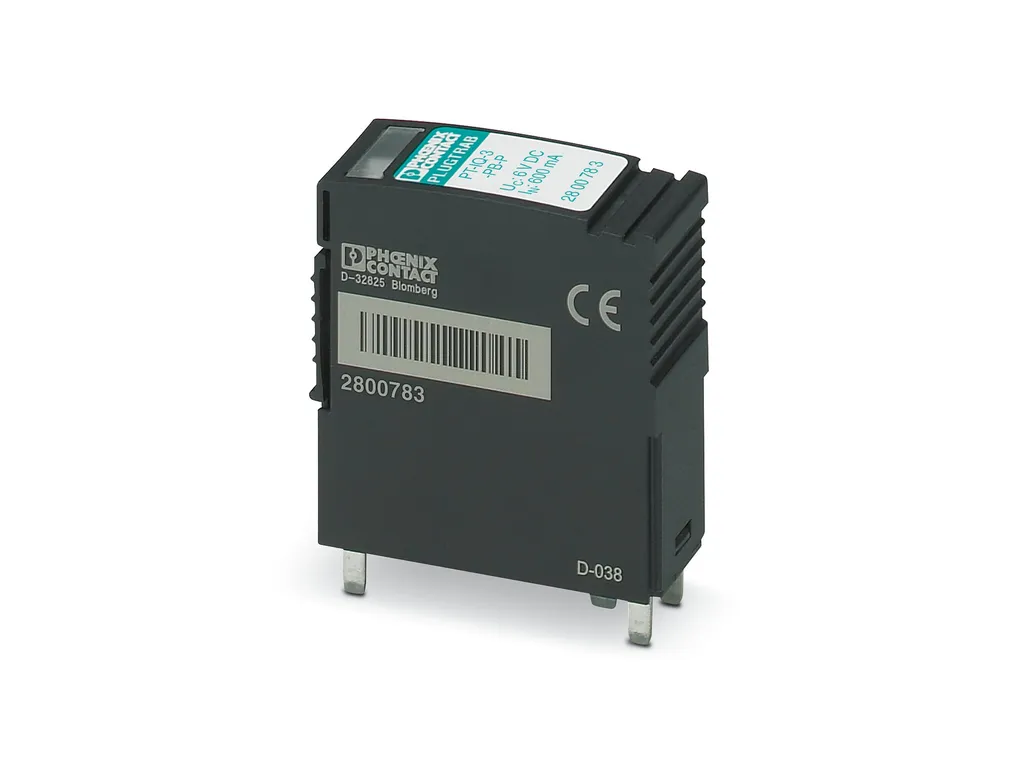

| Product properties | IEC test classification: C1 C2 C3 Type: DIN rail module, two-section, divisible Product type: Surge protection for MCR technology Product family: PLUGTRAB PT Number of positions: 2 Arrester can be tested with CHECKMASTER from software version:: SW Version 2.13 or later Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Nominal voltage UN: 120 VÃAC Indicator/remote signaling Switching function: N/C contact |
| Connection data | Connection method: Screw connection (in connection with the base element) Screw thread: M3 Tightening torque: 0.8 Nm Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12 |

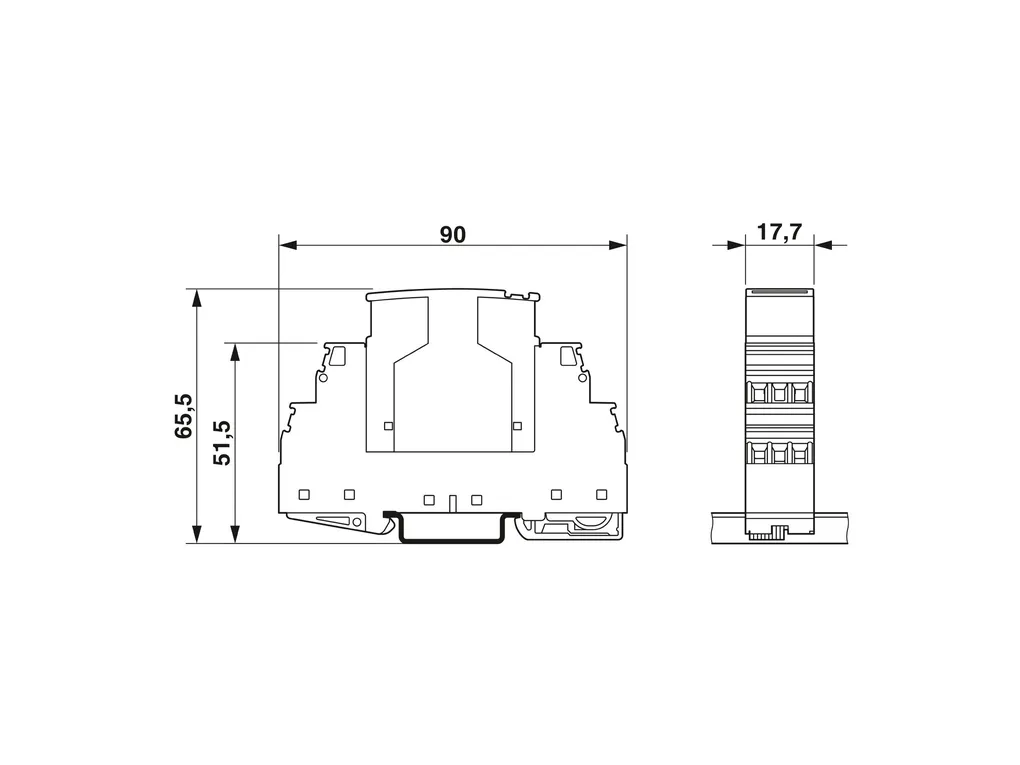

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ccdf98a6bdd749498f6c4126115c9c5f/-S204x204-FJPG Width: 17.7 mm Height: 90 mm Depth: 51.7 mm Horizontal pitch: 1 Div. Complete module width: 17.7 mm Complete module height: 90 mm Complete module depth: 65.5 mm |
| Material specifications | Flammability rating according to UL 94: V-0 Housing material: PA 6.6 |
| Mechanical properties | Mechanical data Open side panel: No |
| Protective circuit | Direction of action: Line-Line & Line-Earth Ground Maximum continuous voltage UC: 175 VÃAC Rated current: 6 A Operating effective current IC at UC: ââ°¤ 2 õA Residual current IPE: ââ°¤ 4 õA Nominal discharge current In (8/20) õs: 3 kA Pulse discharge current Iimp (10/350)Ãõs: 300 A Total discharge current Itotal (8/20)Ãõs: 8 kA Max. discharge current Imax (8/20) õs: 8 kA Nominal pulse current Ian (10/1000) õs (line-earth): 40 A Output voltage limitation at 1 kV/õs (line-earth) spike: ââ°¤ 800 V Output voltage limitation at 1 kV/õs (line-earth) static: ââ°¤ 800 V Residual voltage at In (conductor-ground): ââ°¤ 600 V Voltage protection level Up: ââ°¤ 1 kV (C2 - 2 kA) Voltage protection level Up (line-earth): ââ°¤ 900 V (C1 - 500 A) ââ°¤ 950 V (C2 - 1 kA) ââ°¤ 1 kV (C3 - 25ÃA) ââ°¤ 1.1 kV (Iimp-300 A) Response time tA: ââ°¤ 100 ns Capacity (Core-Earth): typ. 3 pF Resistance per path: 0 é Surge protection fault message: none Max. required back-up fuse: 6 A (gL/gG) Impulse durability (line-earth): C1 - 1ÃkV / 500ÃA C2 - 4ÃkV / 2ÃkA C3 - 25ÃA |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 2000 m (amsl) |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: IEC 60664-1 / DINÃVDEÃ0110-1 Standards/specifications: ENÃ61643-21 IEC 61643-21 Note: 2002 |
| Mounting | Mounting type: DIN rail: 35 mm |
