2905363 PHOENIX CONTACT - Technology Bsa

Product properties	Type: Base element, DIN rail mounting Product type: Base element Product family: PLUGTRAB IQ Number of positions: 5 Surge protection fault message: none Insulation characteristics Overvoltage category: III Pollution degree: 2
Connection data	Connection method: Screw connection Screw thread: M3 Tightening torque: 0.5 Nm Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12

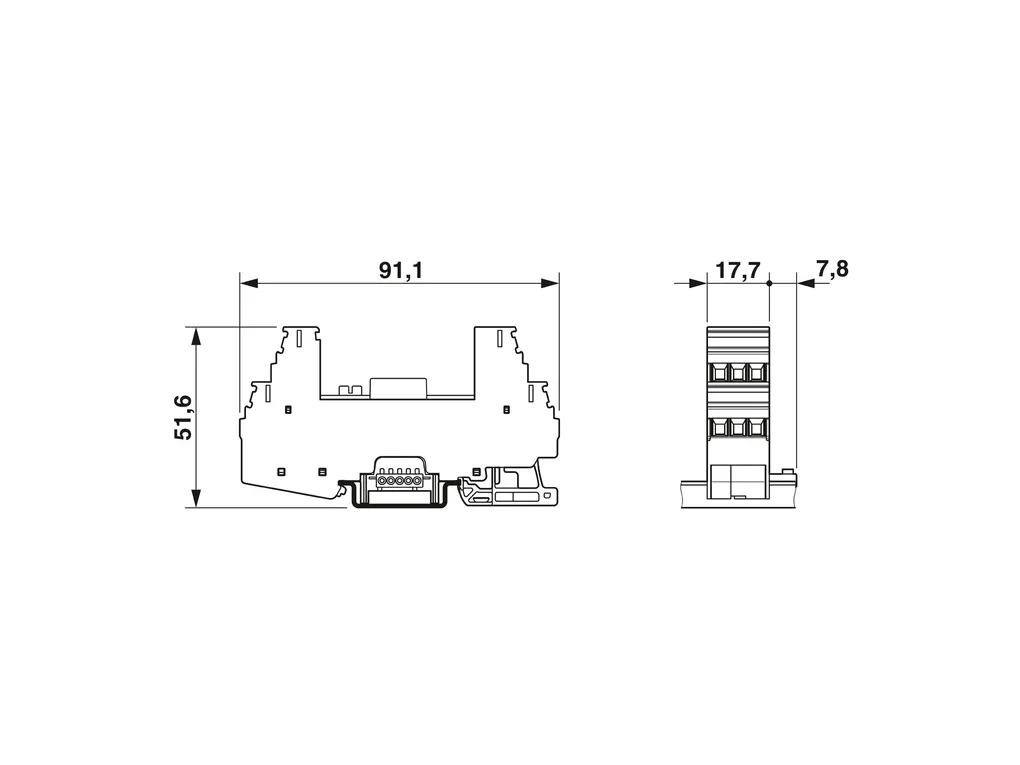

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4647bb8e90ee1c4cb81ccd3aae11f0ef/-S204x204-FJPG Width: 17.7 mm Height: 91.1 mm Depth: 51.5 mm (incl. DIN rail 7.5Ãmm) Horizontal pitch: 1 Div.
Material specifications	Flammability rating according to UL 94: V-0 Housing material: PA 6.6
Mechanical properties	Mechanical data Open side panel: No
Protective circuit	Resistance per path: 1.2 Ã© Ã±5Ã%
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 4000 m (amsl)
Standards and regulations	Air clearances and creepage distances Standards/regulations: IEC 60664-1 Standards/specifications: IEC 61643-21 ENÃ61643-21 ENÃ61000-6-3 ENÃ61000-6-2 Note: 2000 + A1:2008, modified 2001 + A1:2009 2007 + A1:2011 2005
Mounting	Mounting type: DIN rail: 35 mm
