2800768 PHOENIX CONTACT - Technology Bsa

Notes	General: Remote signaling as well as the power supply of the DIN rail connector are established by snapping the module into place on the DIN rail connector. GeneralÃ¢Ã¢¬Ã¢¹ Note: Remote signaling as well as the power supply of the DIN rail connector are established by snapping the module into place on the DIN rail connector.

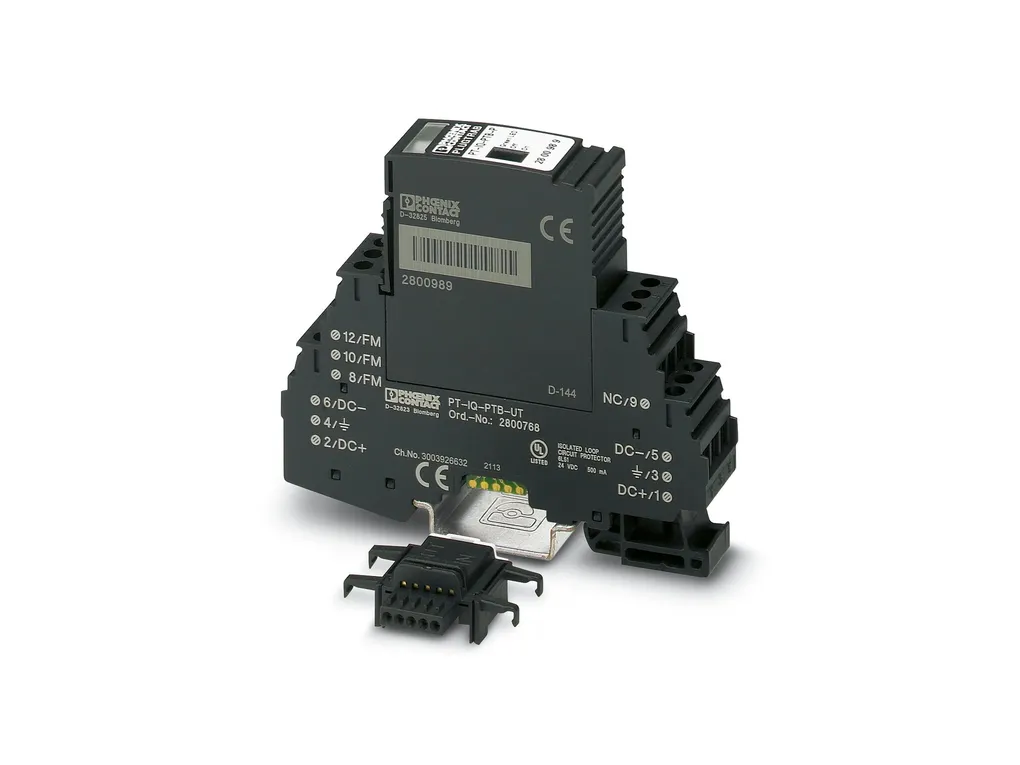

Product properties	Type: DIN rail module, two-section, divisible Product type: Surge protection for MCR technology Product family: PLUGTRAB IQ Insulation characteristics Overvoltage category: II Pollution degree: 2
Electrical properties	Indicator/remote signaling Switching function: 2x N/C contacts Supply: Status indicator/remote signaling Operating voltage: 20 VÃDC ... 30 VÃDC Rated current: max. 130 mA (24ÃVÃDC) max. 160 mA (20ÃVÃDC) Max. required back-up fuse: 500 mA (T) Number of surge protection modules that can be mounted side by side: 28 (32Ã°C)
Connection data	Connection method: Screw connection Screw thread: M3 Tightening torque: 0.5 Nm Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12
Ex data	Altitude: Ã¢Ã¢°¤ 2000 m (amsl) Ambient temperature (operation): -40°C ... 50°C (T6) -40°C ... 70°C (T4) Number of surge protection modules that can be mounted side by side: max. 10 Operating voltage: 20 VÃDC ... 30 VÃDC Nominal current I_N: max. 130 mA (at 20 V DC) max. input voltage U_m: 35 VÃDC Maximum switching voltage U_m: 60 VÃDC
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fc46ccf10e2bae4da270189f6d2038dc/-S204x204-FJPG Width: 17.7 mm Height: 91.1 mm Depth: 77.5 mm (incl. DIN rail 7.5Ãmm) Horizontal pitch: 1 Div.
Material specifications	Flammability rating according to UL 94: V-0 Housing material: PA 6.6
Mechanical properties	Mechanical data Open side panel: No
Protective circuit	Surge protection fault message: Optical, multi-stage remote indication contact Max. required back-up fuse: 500 mA (F)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 4000 m (amsl) Permissible humidity (operation): 5 % ... 95 %
Standards and regulations	Standards/specifications: ENÃ61000-6-2 ENÃ61000-6-3 ENÃ60950-1 ENÃ60079-0 ENÃ60079-11 ENÃ60079-15 IEC 60079-0 IEC 60079-11 IEC 60079-15 Note: 2005 2007 + A1:2011 2006 + A2:2013 2018 2012 2010 2017 2011 2010
Mounting	Mounting type: DIN rail: 35 mm
