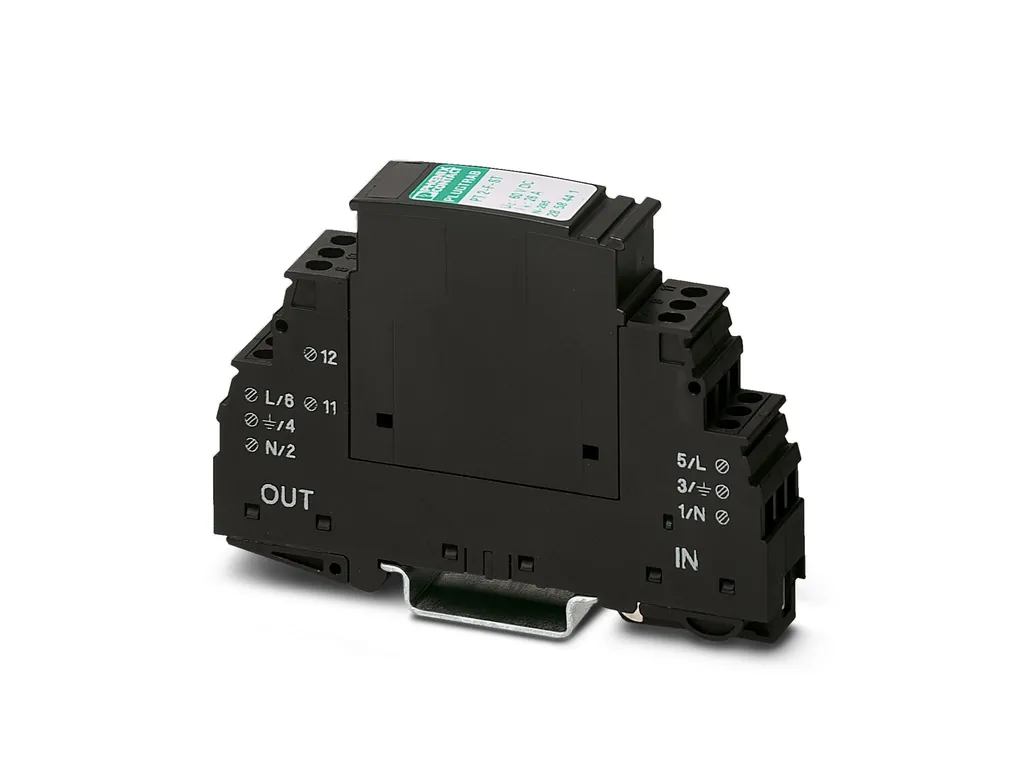

| Product properties | IEC test classification: C1 C2 C3 D1 Type: Male Product type: Surge protection for MCR technology Product family: PLUGTRAB PT Surge protection fault message: none Arrester can be tested with CHECKMASTER from software version:: From SW rev. 1.10 Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Nominal voltage UN: 48 VÃAC |
| Connection data | Connection method: Screw connection (in connection with the base element) Screw thread: M3 Tightening torque: 0.5 Nm Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ccdf98a6bdd749498f6c4126115c9c5f/-S204x204-FJPG Width: 17.7 mm Height: 45 mm Depth: 52 mm Horizontal pitch: 1 Div. Complete module width: 17.7 mm Complete module height: 90 mm Complete module depth: 65.5 mm |
| Material specifications | Flammability rating according to UL 94: V-0 Housing material: PA 6.6 |
| Mechanical properties | Mechanical data Open side panel: No |
| Protective circuit | Direction of action: Line-Earth Ground Maximum continuous voltage UC: 60 VÃDC 48 VÃAC Rated current: 2 A AC (80ðC) 150 mA DC (80ðC) Operating effective current IC at UC: ââ°¤ 2 õA Residual current IPE: ââ°¤ 4 õA Nominal discharge current In (8/20) õs (line-ground): 20 kA Pulse discharge current Iimp (10/350)Ãõs (line-earth): 5 kA Total discharge current Itotal (8/20)Ãõs: 20 kA Output voltage limitation at 1 kV/õs (line-earth) spike: ââ°¤ 600 V Output voltage limitation at 1 kV/õs (line-earth) static: ââ°¤ 25 V Voltage protection level Up (line-earth): ââ°¤ 600 V (C2 - 10 kV / 5 kA) Voltage protection level Up static (line-earth): ââ°¤ 25 V (C2 - 10 kV / 5 kA) Response time tA (line-earth): ââ°¤ 100 ns Input attenuation aE, asym.: typ. 0.1 dB (ââ°¤ 1 MHz / 50 é) Cut-off frequency fg (3ÃdB), asym. (siganl ground) in 50Ãé system: typ. 100 MHz Capacity (Core-Earth): typ. 2 pF Resistance per path: 0 é Surge protection fault message: none Max. required back-up fuse: 2 A AC (T) 150 mA DC (T) Impulse durability (line-earth): C2 - 10ÃkV / 5ÃkA C1 - 1ÃkV / 500ÃA C3 - 100ÃA D1 - 2.5ÃkA |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: ââ°¤ 2000 m (amsl) |
| Standards and regulations | Standards/specifications: IEC 61643-21 ENÃ61643-21 Note: 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 2001 + A1:2009 + A2:2013 |
| Mounting | Mounting type: on base element |
