Non disponibile

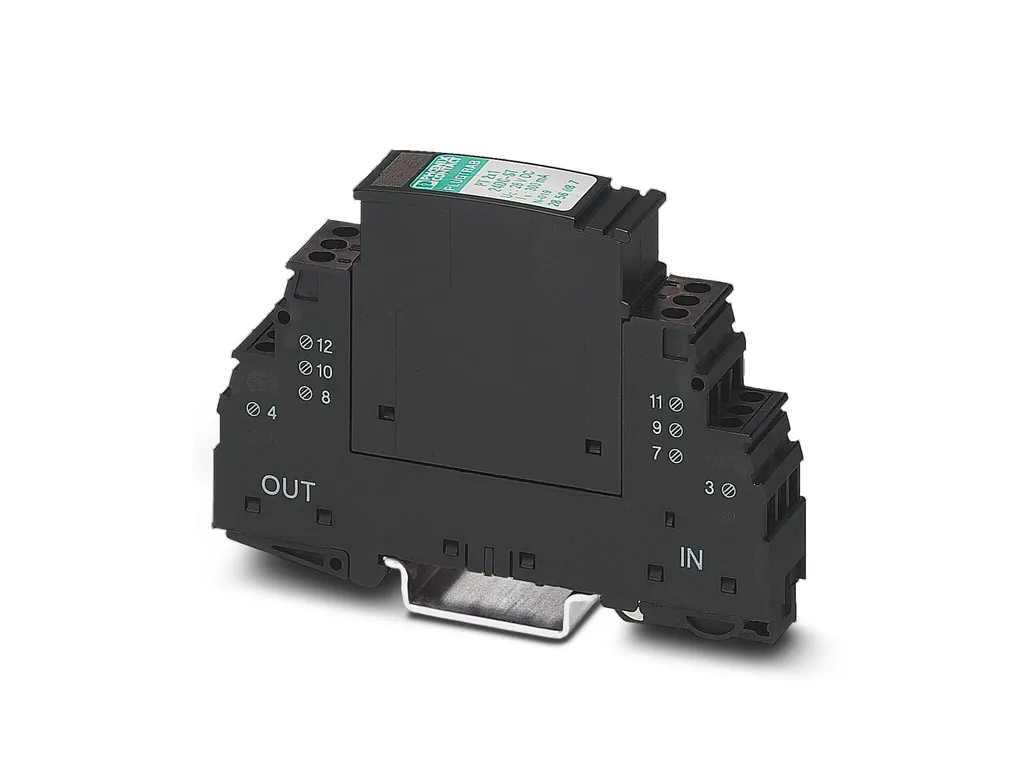

| Product properties | IEC test classification: C1 C2 C3 D1 VDE requirement class: C1 C2 C3 D1 Type: Male Product type: Surge protection for MCR technology Product family: PLUGTRAB PT Surge protection fault message: none Arrester can be tested with CHECKMASTER from software version:: From SW rev. 1.00 Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Nominal voltage UN: 24 VÃDC |
| Connection data | Connection method: Screw connection (in connection with the base element) Screw thread: M3 Tightening torque: 0.8 Nm Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ccdf98a6bdd749498f6c4126115c9c5f/-S204x204-FJPG Width: 17.5 mm Height: 44.8 mm Depth: 51.7 mm Horizontal pitch: 1 Div. Complete module width: 17.7 mm Complete module height: 90 mm Complete module depth: 65.5 mm |
| Material specifications | Color: Copper Flammability rating according to UL 94: V-0 Housing material: PA 6.6 |
| Mechanical properties | Mechanical data Open side panel: No |
| Protective circuit | Direction of action: Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground Maximum continuous voltage UC: 28 VÃDC 20 VÃAC Rated current: 300 mA (45ðC) Operating effective current IC at UC: ââ°¤ 5 õA Residual current IPE: ââ°¤ 1 õA (with PT 2X1+F-BE) ââ°¤ 10 õA (Directly grounded) Nominal discharge current In (8/20) õs (line-ground): 10 kA Pulse discharge current Iimp (10/350)Ãõs: 2.5 kA (per path) Total discharge current Itotal (8/20)Ãõs: 20 kA Max. discharge current Imax (8/20) õs maximum (line-earth): 10 kA Nominal pulse current Ian (10/1000) õs (line-earth): 30 A Output voltage limitation at 1 kV/õs (line-earth) spike: ââ°¤ 45 V ââ°¤ 600 V (with PT 2X1+F-BE) Output voltage limitation at 1 kV/õs (line-earth) static: ââ°¤ 40 V Residual voltage at In (conductor-ground): ââ°¤ 40 V Residual voltage with Ian (10/1000) õs (line-earth): ââ°¤ 50 V Voltage protection level Up (line-earth): ââ°¤ 60 V (C1 - 1ÃkV / 500ÃA) ââ°¤ 80 V (C2 - 10 kV / 5 kA) ââ°¤ 70 V (6 kV / 3 kA) ââ°¤ 50 V (C3 - 30 A) Response time tA (line-earth): ââ°¤ 1 ns Input attenuation aE, asym.: 0.5 dB (ââ°¤ 1 MHz) 0.3 dB (ââ°¤ 400 kHz / 150 é) Cut-off frequency fg (3ÃdB), asym. (PE) in 50Ãé system: typ. 4.5 MHz Capacity (Core-Earth): typ. 0.7 nF Resistance per path: 4.7 é ñ10Ã% (7-8/11-12) Surge protection fault message: none Max. required back-up fuse: 315 mA (T) Impulse durability (line-earth): C2 - 10ÃkV / 5ÃkA D1 - 2.5ÃkA |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 85°C |
| Standards and regulations | VDE requirement class: C1 C2 C3 D1 Air clearances and creepage distances Standards/regulations: VDEÃ0110-1 / IEC 60664-1 Standards/specifications: ENÃ61643-21/A1 IEC 61643-21/A1 ULÃ497B Note: 2009 2008 |
| Mounting | Mounting type: on base element |
