PT 4X1-OC-BE - Surge protection base-element

Base element for PT protective plug with protective circuit for four conductors of signal circuits grounded on one side, without bridge between the connections 3-4 (GND) and 9-10, for mounting on NS 35/7,5 and NS 35/15, without coding, housing width: 17.5 mm
Cod. Articolo: 2800614
Cod. Fornitore: 2800614
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesType: Base element, DIN rail mounting
Product type: Base element
Product family: PLUGTRAB PT
Number of positions: 4
Surge protection fault message: none
Insulation characteristics
Overvoltage category: III
Connection dataConnection method: Screw connection
Screw thread: M3
Tightening torque: 0.8 Nm
Conductor cross section flexible: 0.2 mm² ... 2.5 mm²
Conductor cross section rigid: 0.2 mm² ... 4 mm²
Conductor cross section AWG: 24 ... 12

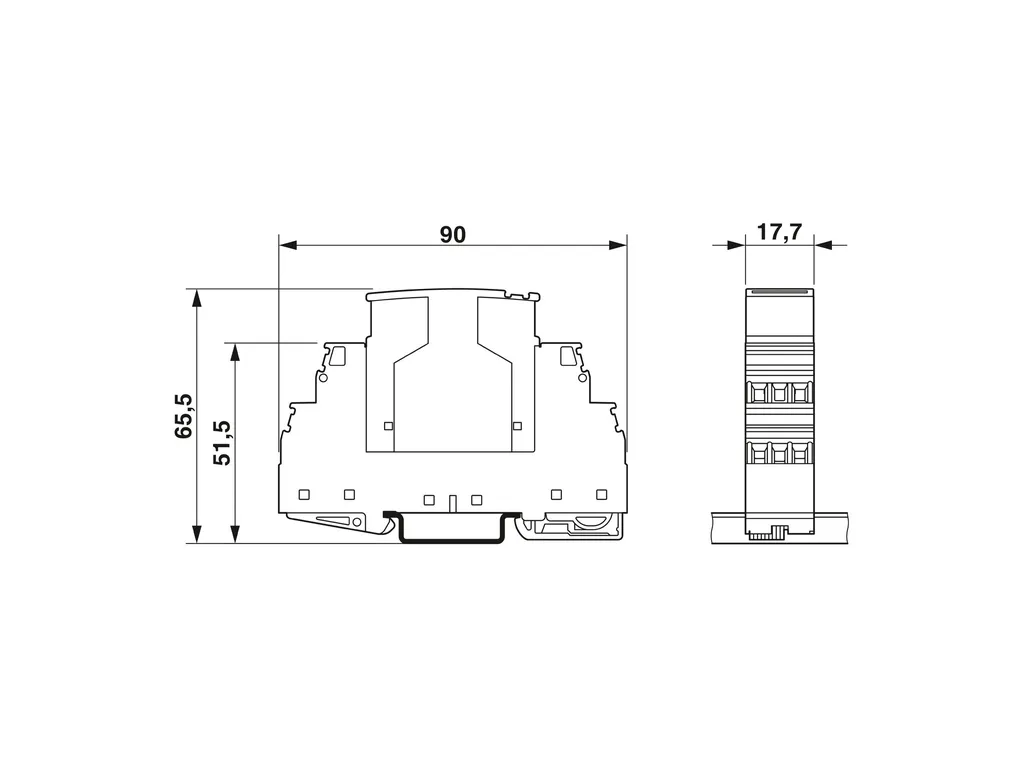

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ccdf98a6bdd749498f6c4126115c9c5f/-S204x204-FJPG
Width: 17.7 mm
Height: 89.8 mm
Depth: 52 mm
Horizontal pitch: 1 Div.
Complete module width: 17.7 mm
Complete module height: 90 mm
Complete module depth: 65.5 mm
Material specificationsFlammability rating according to UL 94: V-0
Housing material: PA 6.6
Mechanical propertiesMechanical data
Open side panel: No
Protective circuitSurge protection fault message: none
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP20
Ambient temperature (operation): -40°C ... 85°C
MountingMounting type: DIN rail: 35 mm
