| Notes | General: In the base elements PT...+F-BE, the connections 9/10 (GND) are linked to the mounting foot via a gas-filled surge arrester. |

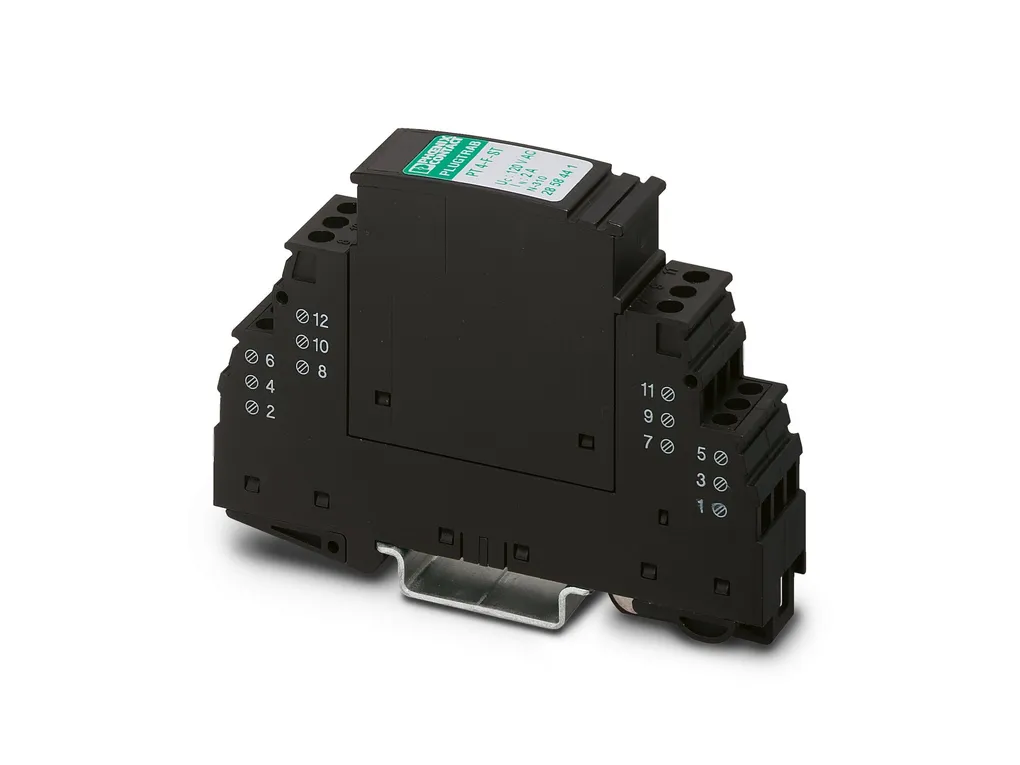

| Product properties | Type: Base element, DIN rail mounting Product type: Base element Product family: PLUGTRAB PT Number of positions: 4 Wire pairs per module: 2 Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Nominal voltage UN: 24 VÃAC |
| Connection data | Connection method: Screw connection Screw thread: M3 Tightening torque: 0.5 Nm Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f8998b053f0d754d92907f440e2375f4/-S204x204-FJPG Width: 17.7 mm Height: 90 mm Depth: 51.5 mm (incl. DIN rail 7.5Ãmm) Horizontal pitch: 1 Div. |
| Material specifications | Color: Copper Flammability rating according to UL 94: V-0 Housing material: PA 6.6 |
| Mechanical properties | Mechanical data Open side panel: No |
| Protective circuit | Maximum continuous voltage UC: 60 VÃDC 120 VÃAC Rated current: 150 mA DC (80ðC) 2 A AC (80ðC) 1.6 AÃDC (with PT 2X2-FF-ST) Resistance per path: 0 é Surge protection fault message: none Max. required back-up fuse: 160 mA DC (T) 2 A AC (T) 1.6 A (FF, with PT 2X2-FF-ST) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: ââ°¤ 2000 m (amsl) |
| Standards and regulations | Standards/specifications: IEC 61643-21 ENÃ61643-21 Note: 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 2001 + A1:2009 + A2:2013 |
| Mounting | Mounting type: DIN rail: 35 mm |
