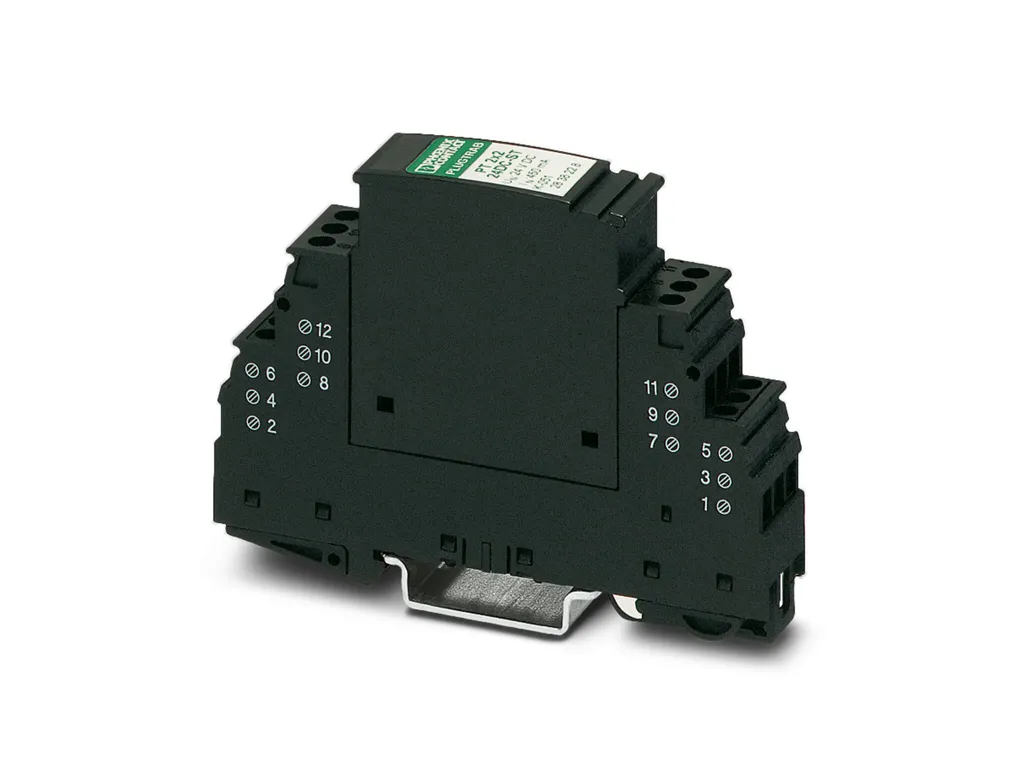

| Product properties | IEC test classification: C1 C2 C3 D1 Type: Male Product type: Surge protection for MCR technology Product family: PLUGTRAB PT Surge protection fault message: none Arrester can be tested with CHECKMASTER from software version:: From SW rev. 1.00 Wire pairs per module: 2 Insulation characteristics Overvoltage category: III |
| Electrical properties | Nominal voltage UN: 12 VÃDC |
| Connection data | Connection method: Screw connection (in connection with the base element) Screw thread: M3 Tightening torque: 0.8 Nm Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ccdf98a6bdd749498f6c4126115c9c5f/-S204x204-FJPG Width: 17.5 mm Height: 44.8 mm Depth: 51.7 mm Horizontal pitch: 1 Div. Complete module width: 17.7 mm Complete module height: 90 mm Complete module depth: 65.5 mm |
| Material specifications | Color: Copper Flammability rating according to UL 94: V-0 Housing material: PA 6.6 |
| Mechanical properties | Mechanical data Open side panel: No |
| Protective circuit | Direction of action: Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground Maximum continuous voltage UC: 13 VÃDC 9 VÃAC Rated current: 450 mA (45ðC) Operating effective current IC at UC: ââ°¤ 5 õA Residual current IPE: ââ°¤ 1 õA (with PT 2X2+F-BE) ââ°¤ 4 õA Nominal discharge current In (8/20) õs (line-line): 10 kA Nominal discharge current In (8/20) õs (line-ground): 10 kA Pulse discharge current Iimp (10/350)Ãõs: 2.5 kA (per path) Total discharge current Itotal (8/20)Ãõs: 20 kA Max. discharge current Imax (8/20) õs maximum (line-line): 10 kA Max. discharge current Imax (8/20) õs maximum (line-earth): 10 kA Output voltage limitation at 1 kV/õs (line-line) spike: ââ°¤ 20 V Output voltage limitation at 1 kV/õs (line-earth) spike: ââ°¤ 450 V Output voltage limitation at 1 kV/õs (line-line) static: ââ°¤ 18 V Output voltage limitation (10/700) õs (line-earth): ââ°¤ 450 V Output voltage limitation (10/700)Ãõs (line-signalground): ââ°¤ 18 V Residual voltage at In (conductor-conductor): ââ°¤ 18 V Residual voltage at In (line-signalground): ââ°¤ 450 V Residual voltage with Ian (10/1000) õs (line-line): ââ°¤ 23 V Response time tA (line-line): ââ°¤ 1 ns Response time tA (line-earth): ââ°¤ 100 ns Input attenuation aE, sym.: 0.5 dB (ââ°¤ 600 kHz) Cut-off frequency fg (3ÃdB), sym. in 50Ãé system: typ. 3 MHz Capacity (Core-Core): 3 nF Resistance per path: 2.2 é Surge protection fault message: none Impulse durability (line-line): C2 - 10ÃkV / 5ÃkA Impulse durability (line-earth): C2 - 10ÃkV / 5ÃkA D1 - 2.5ÃkA |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 85°C |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: VDEÃ0110-1 / IEC 60664-1 Standards Information technology specification Standards/regulations: IEC 61643-21 DINÃENÃ61643-21 ULÃ497B IEC 61643-21 DINÃENÃ61643-21 ULÃ497B |
| Mounting | Mounting type: on base element |
