PHOENIX CONTACT 2838241
PHOENIX CONTACT 2838241
PHOENIX CONTACTNon disponibile

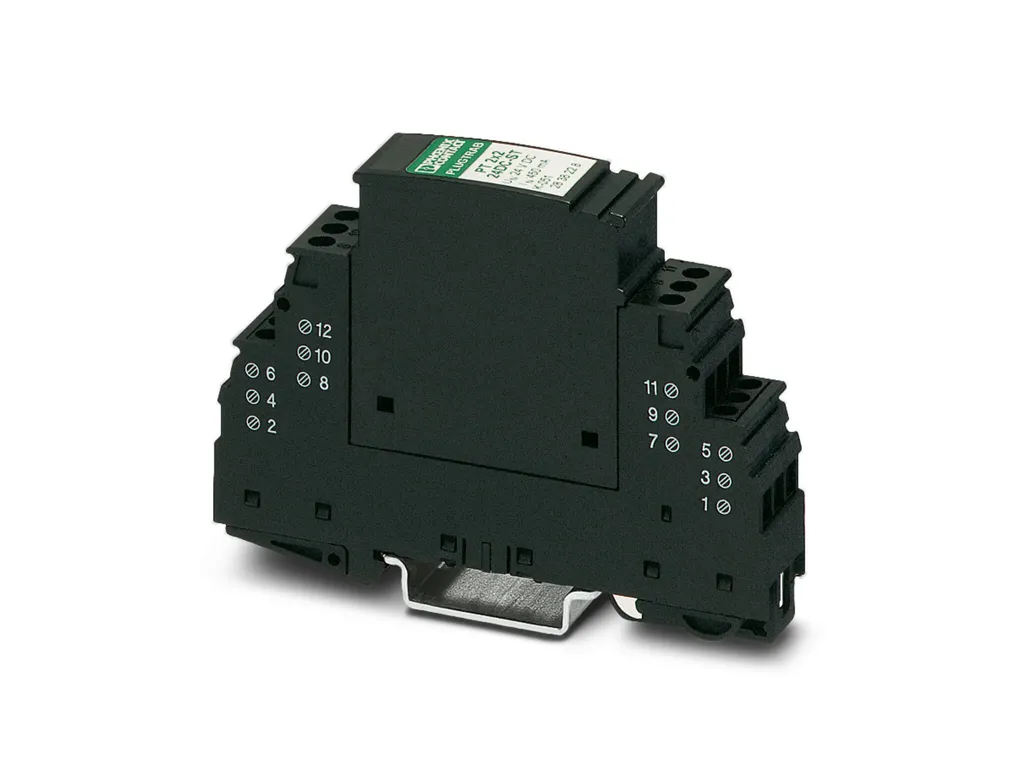

PT 2X2- 5DC-ST - Surge protection plug

PT protective connector with protective circuit for two 2-wire floating signal circuits. 5 V DC nominal voltage. HART-compatible.
Cod. Articolo: 2838241
Cod. Fornitore: 2838241
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesIEC test classification: C1
C2
C3
D1
Type: Male
Product type: Surge protection for MCR technology
Product family: PLUGTRAB PT
Surge protection fault message: none
Arrester can be tested with CHECKMASTER from software version:: From SW rev. 1.00
Wire pairs per module: 2
Insulation characteristics
Overvoltage category: III
Electrical propertiesNominal voltage UN: 5 VÂDC
Connection dataConnection method: Screw connection (in connection with the base element)
Screw thread: M3
Tightening torque: 0.8 Nm
Conductor cross section flexible: 0.2 mm² ... 2.5 mm²
Conductor cross section rigid: 0.2 mm² ... 4 mm²
Conductor cross section AWG: 24 ... 12
DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ccdf98a6bdd749498f6c4126115c9c5f/-S204x204-FJPG
Width: 17.5 mm
Height: 44.8 mm
Depth: 51.7 mm
Horizontal pitch: 1 Div.
Complete module width: 17.7 mm
Complete module height: 90 mm
Complete module depth: 65.5 mm
Material specificationsColor: Copper
Flammability rating according to UL 94: V-0
Housing material: PA 6.6
Mechanical propertiesMechanical data
Open side panel: No
Protective circuitDirection of action: Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground
Maximum continuous voltage UC: 6 VÂDC
4 VÂAC
Rated current: 450 mA (45°C)
Operating effective current IC at UC: ≤ 1 mA
Residual current IPE: ≤ 1 µA (with PT 2X2+F-BE)
≤ 4 µA
Nominal discharge current In (8/20) µs (line-line): 10 kA
Nominal discharge current In (8/20) µs (line-ground): 10 kA
Pulse discharge current Iimp (10/350)µs: 2.5 kA (per path)
Total discharge current Itotal (8/20)µs: 20 kA
Max. discharge current Imax (8/20) µs maximum (line-line): 10 kA
Max. discharge current Imax (8/20) µs maximum (line-earth): 10 kA
Output voltage limitation at 1 kV/µs (line-line) spike: ≤ 12 V
Output voltage limitation at 1 kV/µs (line-earth) spike: ≤ 450 V
Output voltage limitation at 1 kV/µs (line-line) static: ≤ 10 V
Residual voltage at In (conductor-conductor): ≤ 10 V
Residual voltage at In (line-signalground): ≤ 450 V
Residual voltage with Ian (10/1000) µs (line-line): ≤ 12 V
Response time tA (line-line): ≤ 1 ns
Response time tA (line-earth): ≤ 100 ns
Input attenuation aE, sym.: 0.5 dB (≤Â200ÂkHz)
Cut-off frequency fg (3ÂdB), sym. in 50ÂΩ system: typ. 1 MHz
Capacity (Core-Core): 6 nF
Resistance per path: 2.2 Ω
Surge protection fault message: none
Impulse durability (line-line): C2 - 10ÂkV / 5ÂkA
Impulse durability (line-earth): C2 - 10ÂkV / 5ÂkA
D1 - 2.5ÂkA
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP20
Ambient temperature (operation): -40°C ... 85°C
Standards and regulationsAir clearances and creepage distances
Standards/regulations: VDEÂ0110-1 / IEC 60664-1
Standards Information technology specification
Standards/regulations: IEC 61643-21
DINÂENÂ61643-21
ULÂ497B
IEC 61643-21
DINÂENÂ61643-21
ULÂ497B
Standards/specifications: IEC 61643-21
Note: 2000
MountingMounting type: on base element
