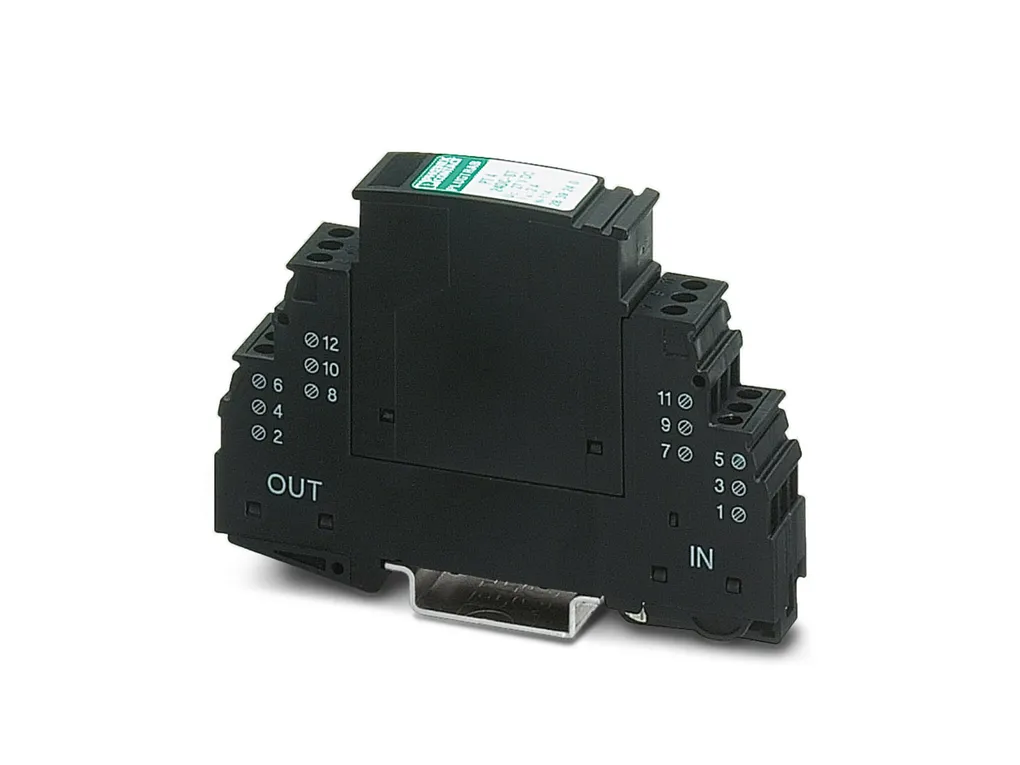

2800078 PHOENIX CONTACT - Technology Bsa

Notes	General Note: If the maximum permissible short-circuit current at the installation location exceeds the specified values, a fuse should be selected which ensures a shutdown time of < 5Ãs. Technical data is valid in association with the following specified base elements: with PT 4+F-BE with PT 4-BE
Product properties	IEC test classification: C1 C2 C3 D1 Type: Male Product type: Surge protection for MCR technology Product family: PLUGTRAB PT Surge protection fault message: none Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Nominal voltage U_N: 24 VÃAC
Connection data	Connection method: Screw connection (in connection with the base element) Screw thread: M3 Tightening torque: 0.5 Nm Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ccdf98a6bdd749498f6c4126115c9c5f/-S204x204-FJPG Width: 17.7 mm Height: 45 mm Depth: 52 mm Horizontal pitch: 1 Div. Complete module width: 17.7 mm Complete module height: 90 mm Complete module depth: 65.5 mm
Material specifications	Flammability rating according to UL 94: V-0 Housing material: PA 6.6
Mechanical properties	Mechanical data Open side panel: No
Protective circuit	Direction of action: Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground Maximum continuous voltage U_C: 40 VÃDC 28 VÃAC Rated current: 2 A AC (80Ã°C) 500 mA DC (80Ã°C) Operating effective current I_C at U_C: Ã¢Ã¢°¤ 5 ÃµA Residual current I_PE: Ã¢Ã¢°¤ 4 ÃµA (with PT 4-BE) Ã¢Ã¢°¤ 1 ÃµA (with PT 4+F-BE) Nominal discharge current I_n (8/20) Ãµs (line-line): 187 A Nominal discharge current I_n (8/20) Ãµs (line-ground): 10 kA Pulse discharge current I_imp (10/350)ÃÃµs: 2.5 kA Total discharge current I_total (8/20)ÃÃµs: 20 kA Max. discharge current I_max (8/20) Ãµs maximum (line-line): 187 A Max. discharge current I_max (8/20) Ãµs maximum (line-earth): 10 kA Nominal pulse current Ian (10/1000) Ãµs (line-line): 36 A Output voltage limitation at 1 kV/Ãµs (line-line) spike: Ã¢Ã¢°¤ 75 V Output voltage limitation at 1 kV/Ãµs (line-earth) spike: Ã¢Ã¢°¤ 450 V (with PT 4-BE) Ã¢Ã¢°¤ 1 kV (with PT 4+F-BE) Output voltage limitation at 1 kV/Ãµs (line-line) static: Ã¢Ã¢°¤ 75 V Output voltage limitation at 1 kV/Ãµs (line-earth) static: Ã¢Ã¢°¤ 25 kV (with PT 4-BE) Ã¢Ã¢°¤ 50 V (with PT 4+F-BE) Residual voltage at I_n (conductor-conductor): Ã¢Ã¢°¤ 105 V Residual voltage with Ian (10/1000) Ãµs (line-line): Ã¢Ã¢°¤ 80 V Voltage protection level U_p (line-line): Ã¢Ã¢°¤ 85 V (C1 - 500ÃV / 250ÃA) Ã¢Ã¢°¤ 70 V (C3 - 10ÃA) Ã¢Ã¢°¤ 75 V (C3 - 25ÃA) Voltage protection level U_p (line-earth): Ã¢Ã¢°¤ 450 V (C2 - 10ÃkV / 5ÃkA with PT 4-BE) Ã¢Ã¢°¤ 1 kV (C2 - 10ÃkV / 5ÃkA with PT 4+F-BE) Voltage protection level U_p static (line-earth): Ã¢Ã¢°¤ 50 V (C2 - 10ÃkV / 5ÃkA with PT 4-BE) Ã¢Ã¢°¤ 100 V (C2 - 10ÃkV / 5ÃkA with PT 4+F-BE) Response time t_A (line-line): Ã¢Ã¢°¤ 1 ns Response time t_A (line-earth): Ã¢Ã¢°¤ 100 ns Input attenuation aE, sym.: 0.1 dB (Ã¢Ã¢°¤ 2 MHz / 50 Ã©) 0.1 dB (Ã¢Ã¢°¤ 600 kHz / 150 Ã©) Cut-off frequency fg (3ÃdB), sym. in 50ÃÃ© system: typ. 10 MHz Cut-off frequency fg (3ÃdB), sym. in 150ÃÃ© system: typ. 3 MHz Capacity (Core-Core): typ. 0.7 nF Capacity (Core-Earth): typ. 40 pF (with PT 4-BE) typ. 20 pF (with PT 4+F-BE) Resistance per path: 0 Ã© Surge protection fault message: none Impulse durability (line-line): C1 - 500ÃV / 250ÃA C3 - 10ÃA C3 - 25ÃA Impulse durability (line-earth): C2 - 10ÃkV / 5ÃkA D1 - 2.5ÃkA
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 2000 m (amsl)
Standards and regulations	Standards/specifications: IEC 61643-21 ENÃ61643-21 Note: 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 2001 + A1:2009 + A2:2013
Mounting	Mounting type: on base element
