CBC-PRC 3-FT25-MS6 400V - Panel feed-through

Panel feed-through, Range of articles: ArcZero, color: black, number of positions: 3, min. conductor cross section: 1.5 mm2, max. conductor cross section: 6 mm2, rated voltage: 400 VDC, rated current: 20 A, Connection method: Screw connection, Contact connection type: Pin, Maximum load when disconnecting: 8 kW, scope: DC-Grids
Cod. Articolo: 1437018
Cod. Fornitore: 1437018
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Descrizione
Download
Caratteristiche Tecniche
NotesNote on application: Maximum load when disconnecting: 8 kW (6.7 µF/5 mH)
Maximum load when connecting: 2 kW (6.7 µF/5 mH)
Observe the specifications of the packing slip.
Notes on safety: Fit the protective cap when not plugged in.
Product propertiesProduct type: Installation connector
Product family: ArcZero
Area of application: DC-Grids
Number of positions: 3
Data management status
Article revision: 02
Insulation characteristics
Protection class: II (plastic housing)
Electrical propertiesNominal voltage ATD: 400 VDC (III/2.00) in accordance with IEC 61984
250 VDC Minimum system voltage
400 VDC (III/2.00) in accordance with IEC 61535
400 VDC (III/2.00) in accordance with UL 2238 / UL 2237
Rated current: 20 A (With 2.5 mm² conductor cross section in accordance with IEC 61984)

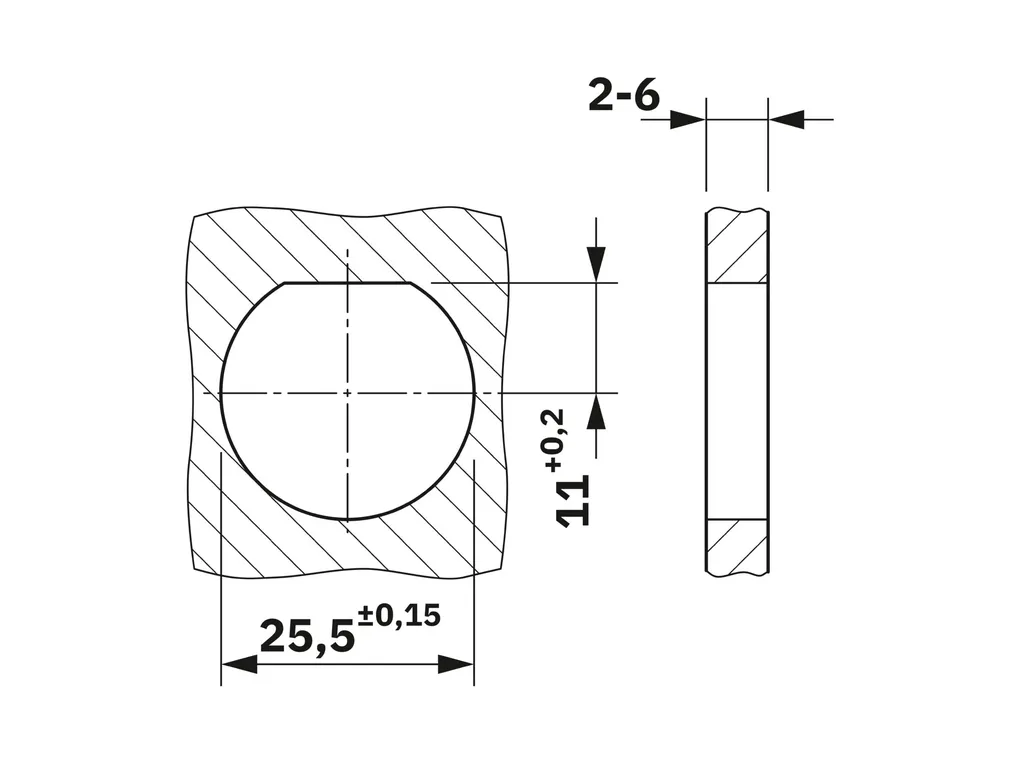

DimensionsDimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/161712/full/b1500?format=jpg
Width: 35 mm
Height: 35 mm
Length: 54.7 mm
Material specificationsColor: black
Cable/lineSingle wire, cross section: 1.5 mm² 6 mm²
Stripping length of the individual wire: 13 mm (Lay PE conductor 10 mm leading)
Halogen-free: yes
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: 500 (under rated load)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP66
IP68 (2 m / 2 h)
IP69
Ambient temperature (operation): -40 °C ... 105 °C
Ambient temperature (storage/transport): -40 °C ... 105 °C
Ambient temperature (assembly): -20 °C ... 60 °C
Standards and regulationsStandards/specifications: IEC 61984
IEC TS 62735-1
