PHOENIX CONTACT 1408573
PHOENIX CONTACT 1408573
PHOENIX CONTACTNon disponibile

SACC-SQ-M12FS-8CON-20-L180 - Device connector front mounting

Device connector front mounting, Universal, 8-position, Socket, straight, M12-SPEEDCON, coding: A, Front mounting, Square flange, Wave soldering, 0.25 mm2, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1238782
Cod. Articolo: 1408573
Cod. Fornitore: 1408573
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.

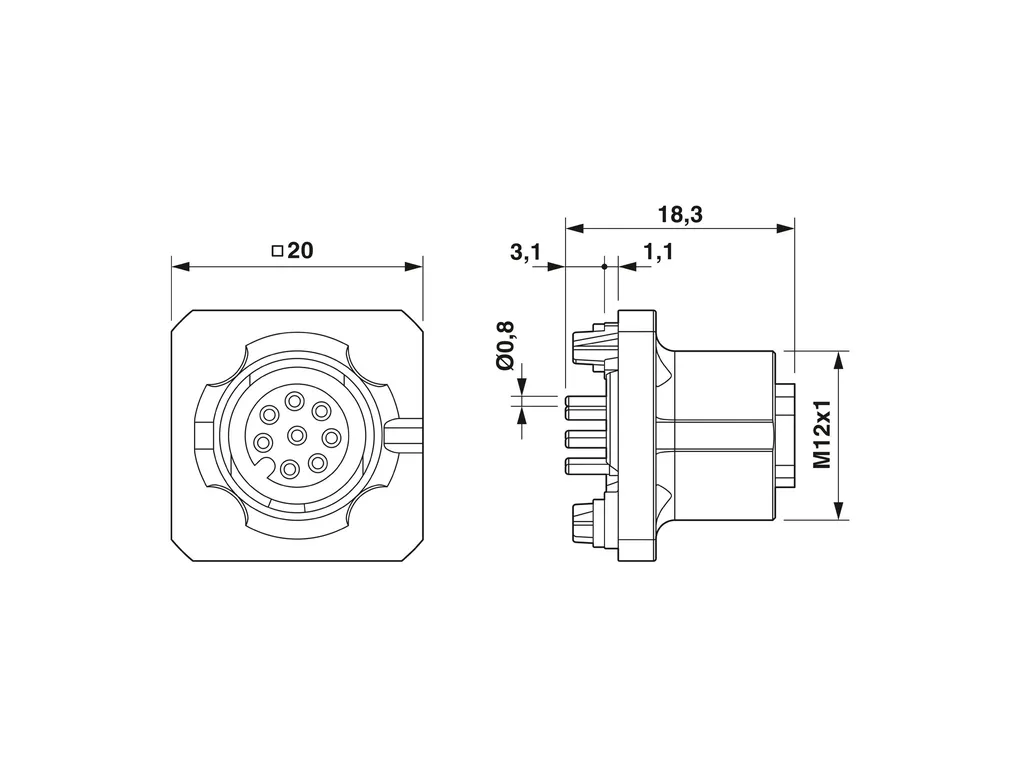

MountingMounting type: Front mounting Square flange 20 mm side length
Assembly instructions: 20 mm side length
Connection method: Wave soldering
Product propertiesProduct type: Circular connectors (device side)
Sensor type: Universal
Number of positions: 8
No. of cable outlets: 1
Shielded: yes
Coding: A
Thread type: M12
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: FKM
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PA 6.6
Material for screw connection: Zinc die-cast, tin-plated
Electrical propertiesRated surge voltage: 0.8 kV
Contact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 30 V
Nominal current IN: 2 A
Max. conductor resistance: 57.6 mΩ/m
Connection dataConductor connection
Connection method: Wave soldering
Contact connection type: Socket
Conductor cross section: 0.25 mm²
Tightening torque: 3 Nm
4 Nm
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: > 100
ConnectorConnection 1
Head design: Socket
Head cable outlet: straight
Head thread type: M12
Head locking type: SPEEDCON
Coding: A
Cable/lineSignal type/category: Universal
Wire diameter incl. insulation: 1.15 mm ±0.07mm
Cable cross section: 0.25 mm²
Conductor structure signal line: 14x 0.15 mm
Thickness, insulation: 0.21 mm
Nominal voltage, cable: 300 V
Test voltage, cable: 2000 VAC
Cable resistance: ≤ 57.6 mΩ/m
Cable insulation resistance: ≥ 20 MΩ*km
Ambient temperature (operation): -40°C ... 85°C (cable, fixed installation)
-25°C ... 85°C (Cable, flexible installation)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP20
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
-40°C ... 85°C (without mechanical actuation)
-25°C ... 85°C (Cable, flexible installation)
-40°C ... 85°C (cable, fixed installation)
Standards and regulationsM12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-101
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_00353.pdf

Approvals_01641.pdf

Manufacturer_declaration_05485.pdf

Manufacturer_declaration_07301.pdf

Technical_drawing_12752.pdf
