| Notes | General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Contact connection method: Crimp connection Safety note Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. ⢠WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. ⢠WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. ⢠The products are suitable for applications in plant, controller, and electrical device engineering. ⢠When operating the connectors in outdoor applications, they must be separately protected against environmental influences. ⢠Assembled products may not be manipulated or improperly opened. ⢠Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). ⢠When using the product in direct connection with third-party manufacturers, the user is responsible. ⢠For operating voltages > 50V AC, conductive connector housings must be grounded ⢠Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. ⢠Observe the corresponding technical data. You will find information: o On the product o On the packing label o In the supplied documentation o Online at phoenixcontact.com/products under the product ⢠Only use tools recommended by PhoenixContact ⢠Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products ⢠Ensure that the protective or functional ground has been properly connected. ⢠VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector ⢠The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). |
| Mounting | Mounting type: Front mounting Square flange 20 mm side length Assembly instructions: 20 mm side length Connection method: Individual wires |

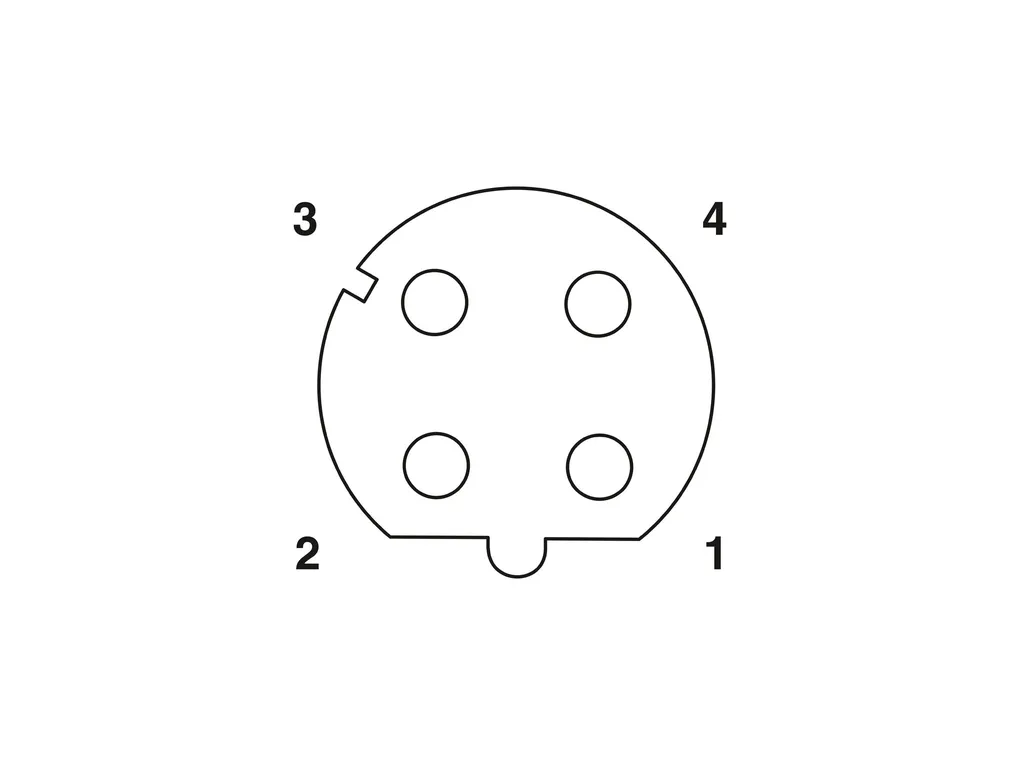

| Product properties | Product type: Circular connectors (device side) Sensor type: Universal Number of positions: 4 Application: Signal No. of cable outlets: 1 Shielded: no Coding: D Thread type: M12 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: FKM Material of grip body: Zinc die-cast, nickel-plated Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated Conductor material: Tin-plated Cu litz wires |
| Electrical properties | Rated surge voltage: 2.5 kV Contact resistance: ⤠3 mé Insulation resistance: ⥠100 Mé Nominal voltage UN: 250 V (AC) 250 V (DC) Nominal current IN: 4 A Max. conductor resistance: 57.6 mé/m |
| Connection data | Conductor connection Connection method: Individual wires Contact connection type: Socket Conductor cross section: 0.34 mm² Tightening torque: 3 Nm 4 Nm |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: > 100 |
| Connector | Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M12 Coding: D Connection 2 Head design: free cable end |
| Cable/line | Cable length: 0.5 m Cable type: TPE litz wire Signal type/category: Universal Wire diameter incl. insulation: 1.2 mm ±0.07mm Single wire, color: yellow, orange, white, blue Cable cross section: 0.34 mm² Conductor material: Tin-plated Cu litz wires Conductor structure signal line: 7x 0.25 mm AWG signal line: 22 Material wire insulation: TPE Thickness, insulation: 0.21 mm (Core insulation) Nominal voltage, cable: 300 V Test voltage, cable: 2000 VAC Cable resistance: ⤠57.6 mé/m Cable insulation resistance: ⥠20 Mé*km Ambient temperature (operation): -40°C ... 85°C (cable, fixed installation) -25°C ... 85°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 85°C (without mechanical actuation) -25°C ... 85°C (Cable, flexible installation) -40°C ... 85°C (cable, fixed installation) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
