| Notes | Order information:: Lock nut is included in the scope of delivery |
| Mounting | Mounting type: Rear mounting M12 x 1 With flat nut Assembly note: With flat nut |

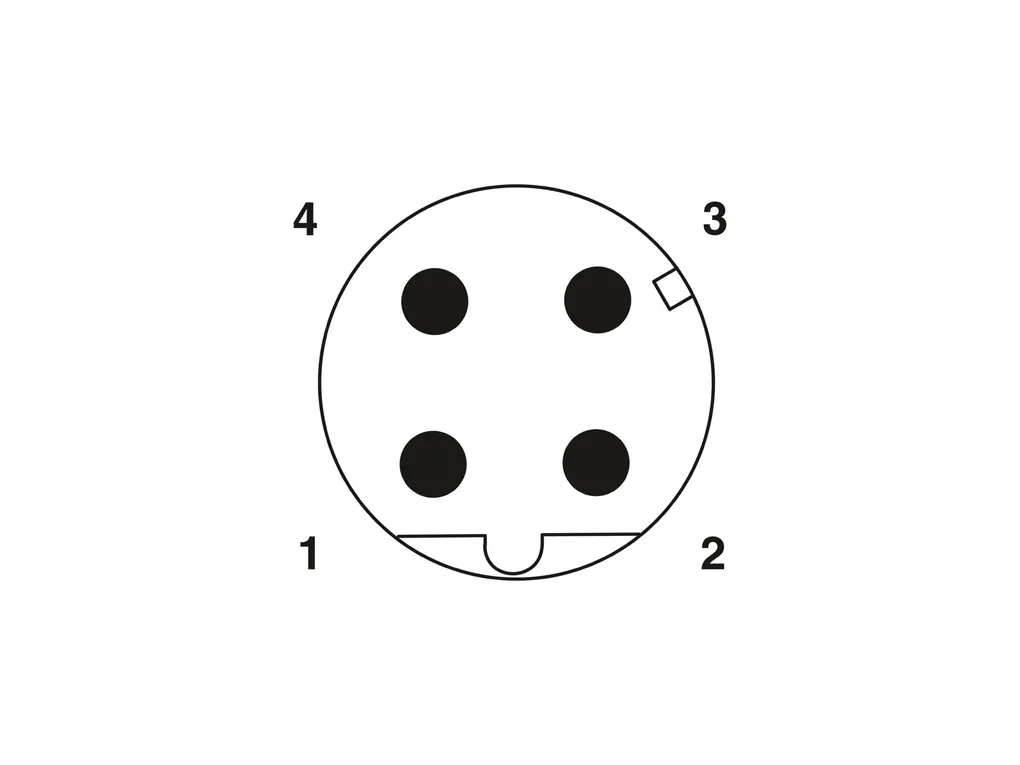

| Product properties | Product type: Circular connectors (device side) Number of positions: 4 Shielded: no Coding: D Thread type: M12 Data management status Article revision: 06 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: FKM / EPDM Contact material: CuZn Contact surface material: Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 3 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 250 V Nominal current IN: 4 A |
| Connection data | Conductor connection Connection method: THR solder connection Contact connection type: Pin |
| Connector | Connection 1 Head design: Pin Head cable outlet: straight Head thread type: M12 Head locking type: SPEEDCON Coding: D |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25 °C ... 85 °C (Plug) |
