PHOENIX CONTACT 1036252
PHOENIX CONTACT 1036252
PHOENIX CONTACTNon disponibile

SACC-DSI-M12FS-12CON-M16/1,0 - Device connector rear mounting

Device connector rear mounting, Universal, 12-position, Socket, straight, M12-Standard, coding: A, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 1 m, 0.14 mm2, TPE litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1238138
Cod. Articolo: 1036252
Cod. Fornitore: 1036252
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesNotes on operation: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Order information:: Lock nut is included in the scope of delivery
General: Contact connection method: Crimp connection
MountingMounting type: Rear mounting M16 x 1.5 With flat nut
Assembly note: With flat nut
Product propertiesProduct type: Circular connectors (device side)
Sensor type: Universal

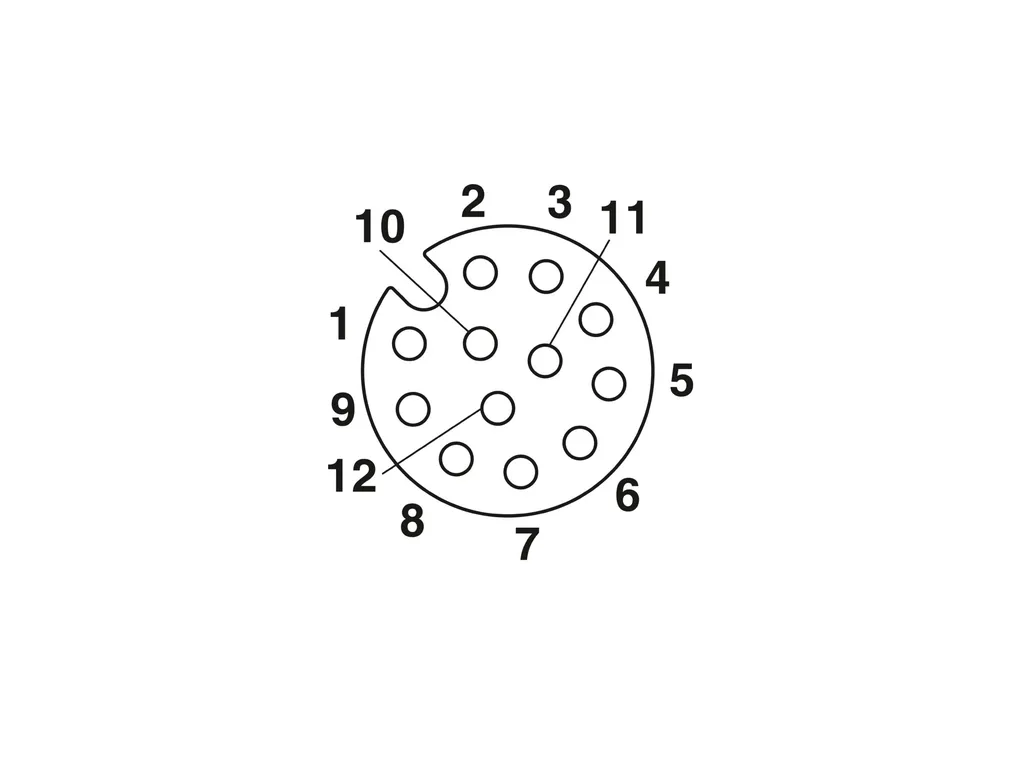

Number of positions: 12
No. of cable outlets: 1
Shielded: no
Coding: A
Thread type: M12
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: FKM
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PA 6.6
Material for screw connection: Zinc die-cast, nickel-plated
Conductor material: Tin-plated Cu litz wires
Electrical propertiesRated surge voltage: 0.8 kV
Contact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 30 V (AC)
30 V (DC)
Nominal current IN: 1.5 A
Max. conductor resistance: 57.6 mΩ/m
Connection dataConductor connection
Connection method: Individual wires
Contact connection type: Socket
Conductor cross section: 0.14 mm²
Tightening torque: 3 Nm ... 4 Nm (Installation-side)
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: > 100
ConnectorConnection 1
Head design: Socket
Head cable outlet: straight
Head thread type: M12
Head locking type: Standard
Coding: A
Connection 2
Head design: free cable end
Cable/lineCable length: 1 m
Cable type: TPE litz wire
Signal type/category: Universal
Wire diameter incl. insulation: 1.1 mm ±0.05 mm
Single wire, color: brown, blue, white, green, pink, yellow, black, gray, red, violet, gray/pink, red/blue
Cable cross section: 0.14 mm²
Conductor material: Tin-plated Cu litz wires
Conductor structure signal line: 7x 0.16 mm
AWG signal line: 26
Material wire insulation: TPE
Thickness, insulation: 0.21 mm (Core insulation)
Nominal voltage, cable: 300 V
Test voltage, cable: 2000 V AC
Cable resistance: ≤ 57.6 mΩ/m
Cable insulation resistance: ≥ 20 MΩ*km
Ambient temperature (operation): -40 °C ... 85 °C (cable, fixed installation)
-25 °C ... 85 °C (Cable, flexible installation)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67 (When plugged in)
IP65 (When plugged in)
IP65/IP67
Ambient temperature (operation): -25 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (without mechanical actuation)
-25 °C ... 85 °C (Cable, flexible installation)
-40 °C ... 85 °C (cable, fixed installation)
Standards and regulationsM12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-101
