Distribution block, Basic terminal block with supply, nom. voltage: 450 V, nominal current: 24 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm²-4 mm², Push-in connection, Line contact, Rated cross section: 6 mm², cross section: 0.5 mm²-10 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: black

Distribution block, Basic terminal block with supply, nom. voltage: 450 V, nominal current: 24 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm²-4 mm², Push-in connection, Line contact, Rated cross section: 6 mm², cross section: 0.5 mm²-10 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: violet

Distribution block, nom. voltage: 690 V, nominal current: 24 A, number of connections: 6, number of positions: 1, connection method: Push-in connection, Rated cross section: 2.5 mm², cross section: 0.14 mm²-4 mm², mounting type: NS 35/7,5, NS35/15, color: red

Distribution block, Basic terminal block with supply, nom. voltage: 450 V, nominal current: 24 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm²-4 mm², Push-in connection, Line contact, Rated cross section: 6 mm², cross section: 0.5 mm²-10 mm², mounting type: adhesive, color: gray

Distribution block, Basic terminal block with supply, nom. voltage: 450 V, nominal current: 24 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm²-4 mm², Push-in connection, Line contact, Rated cross section: 6 mm², cross section: 0.5 mm²-10 mm², mounting type: adhesive, color: blue

Distribution block, Block with vertical alignment and integrated supply, number of connections: 19, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: gray

Distribution block, number of connections: 19, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: blue

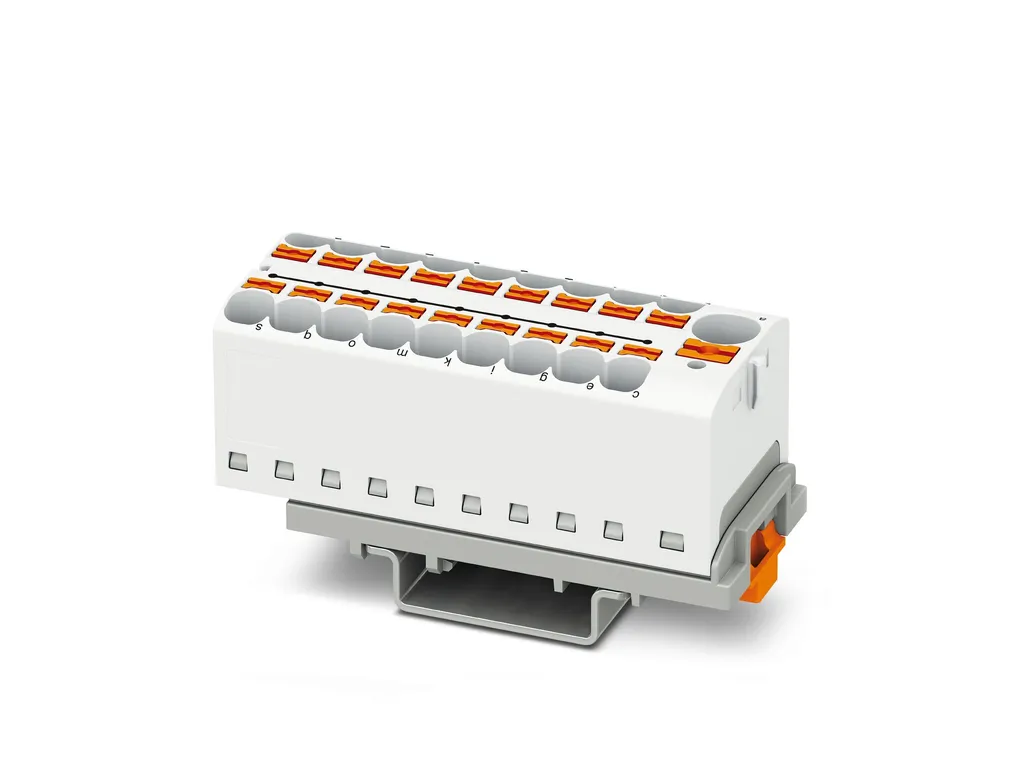

Distribution block, number of connections: 19, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: white

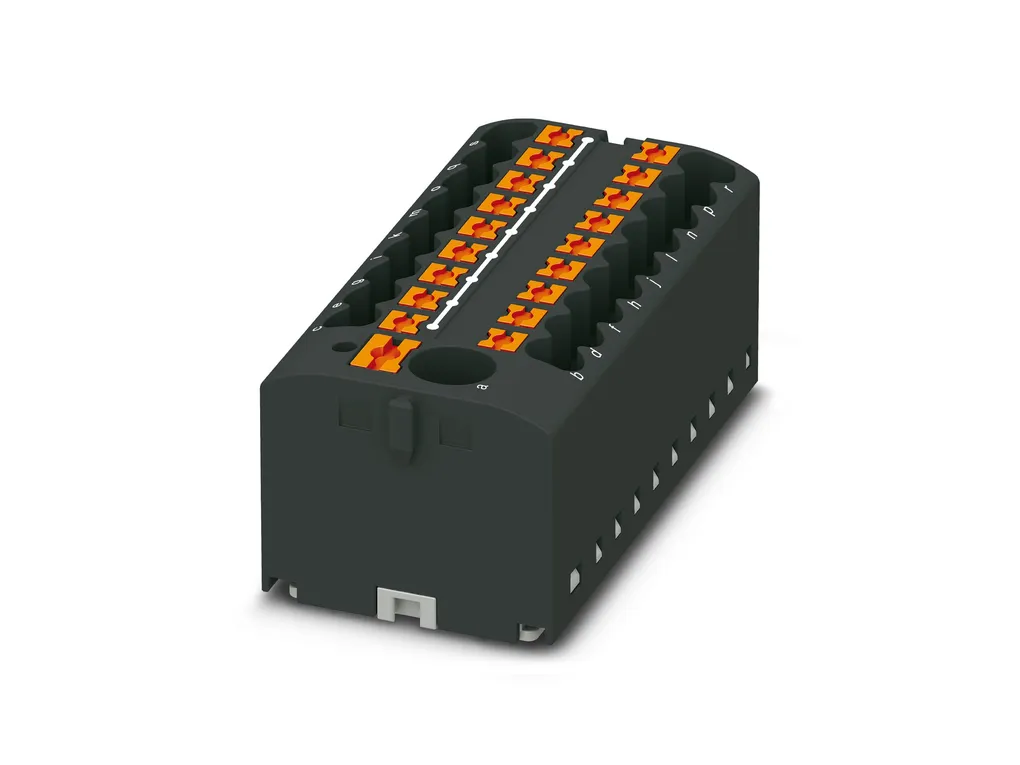

Distribution block, number of connections: 19, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: black

Distribution block, number of connections: 19, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: violet

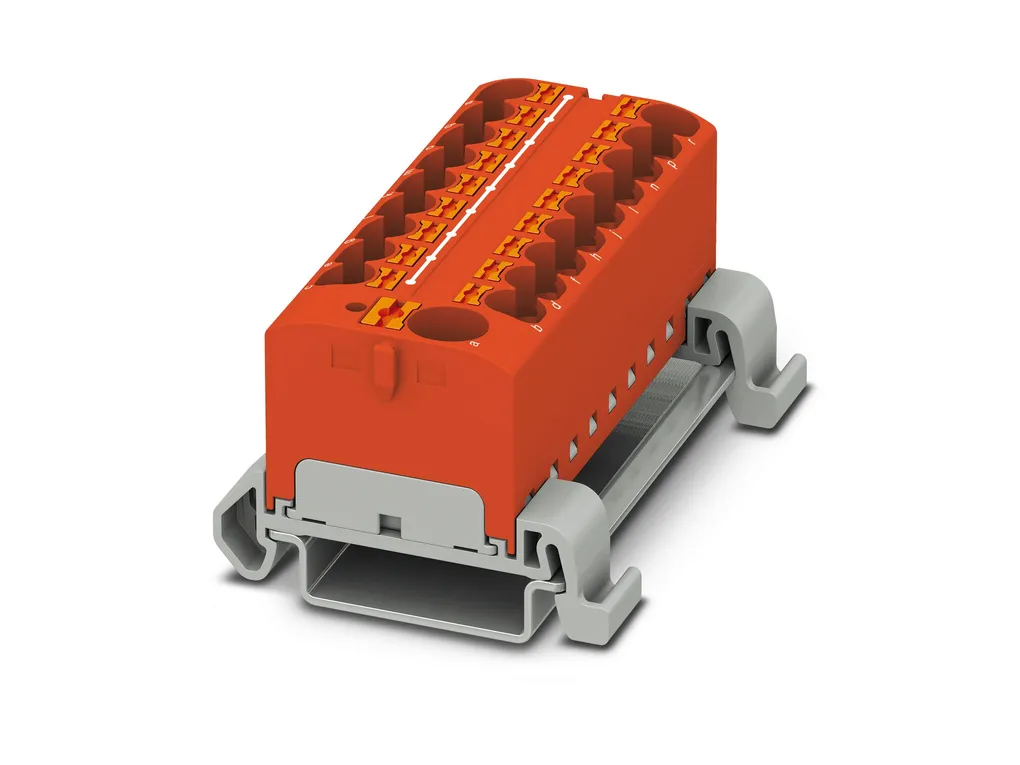

Distribution block, number of connections: 19, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: red

Distribution block, number of connections: 19, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: yellow

Distribution block, number of connections: 19, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: green

Distribution block, number of connections: 19, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: brown

Distribution block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.2 mm²-6 mm², Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², mounting type: NS 35/7,5, NS35/15, color: blue

Distribution block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.2 mm²-6 mm², Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², mounting type: NS 35/7,5, NS35/15, color: red

Distribution block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.2 mm²-6 mm², Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², mounting type: NS 35/7,5, NS35/15, color: yellow

Distribution block, number of connections: 19, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: pink
