Catalogo Prodotti - Technology Bsa

Distribution block, Basic terminal block with supply, nominal current: 41 A, number of connections: 19, connection method: Push-in connection, Line contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², Load contact, cross section: 0.14 mm²-2.5 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: green

Distribution block, Basic terminal block with supply, nominal current: 41 A, number of connections: 19, connection method: Push-in connection, Line contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², Load contact, cross section: 0.14 mm²-2.5 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: yellow

Distribution block, Basic terminal block with supply, nominal current: 41 A, number of connections: 19, connection method: Push-in connection, Line contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², Load contact, cross section: 0.14 mm²-2.5 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: black

Distribution block, Basic terminal block with supply, nominal current: 41 A, number of connections: 19, connection method: Push-in connection, Line contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², Load contact, cross section: 0.14 mm²-2.5 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: white

Distribution block, Basic terminal block with supply, nominal current: 41 A, number of connections: 19, connection method: Push-in connection, Line contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², Load contact, cross section: 0.14 mm²-2.5 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: black/yellow

Distribution block, Basic terminal block with supply, nominal current: 41 A, number of connections: 19, connection method: Push-in connection, Line contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², Load contact, cross section: 0.14 mm²-2.5 mm², mounting type: adhesive, color: gray

Distribution block, bridged internally, nominal current: 41 A, number of connections: 19, connection method: Push-in connection, Line contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², Load contact, cross section: 0.14 mm²-2.5 mm², mounting type: adhesive, color: blue

Distribution block, Block with horizontal alignment and integrated supply, nominal current: 41 A, number of connections: 19, Line contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², Push-in connection, Load contact, cross section: 0.14 mm²-2.5 mm², mounting type: NS15, color: gray

Distribution block, Block with vertical alignment and integrated supply, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm²-2.5 mm², Line contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: gray

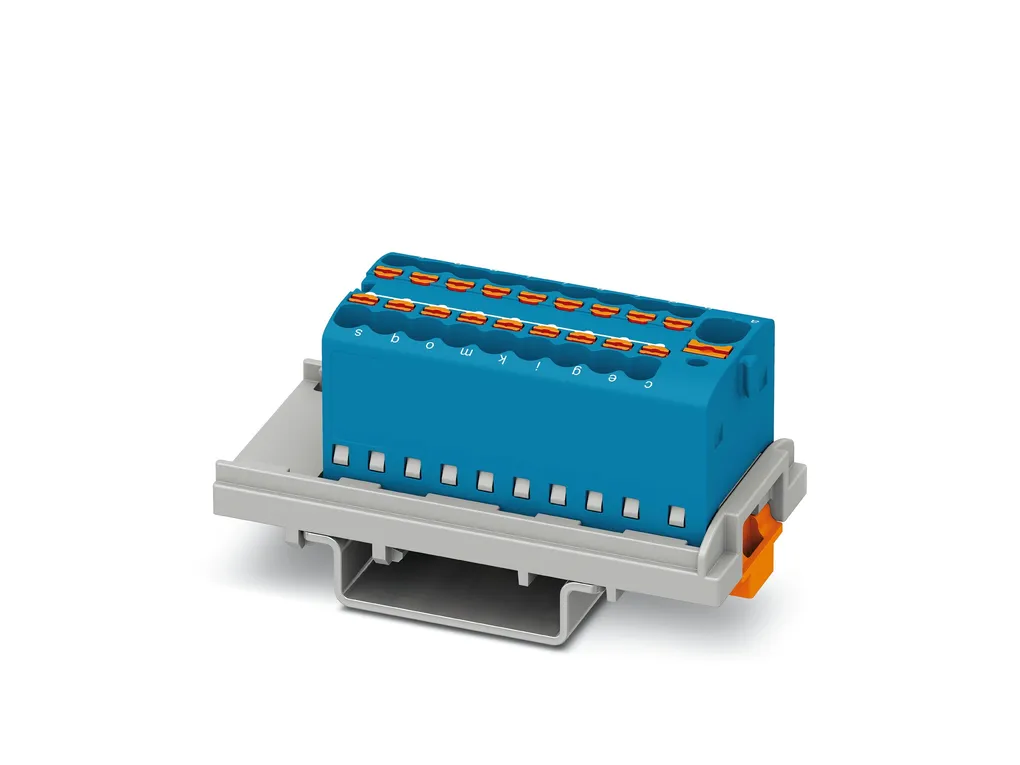

Distribution block, Block with vertical alignment and integrated supply, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm²-2.5 mm², Line contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: blue

Distribution block, Block with vertical alignment and integrated supply, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm²-2.5 mm², Line contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: red

Distribution block, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm²-2.5 mm², Line contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: white

Distribution block, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm²-2.5 mm², Line contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: violet

Distribution block, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm²-2.5 mm², Line contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: orange

Distribution block, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm²-2.5 mm², Line contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: brown

Distribution block, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm²-2.5 mm², Line contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: green

Distribution block, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm²-2.5 mm², Line contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: yellow

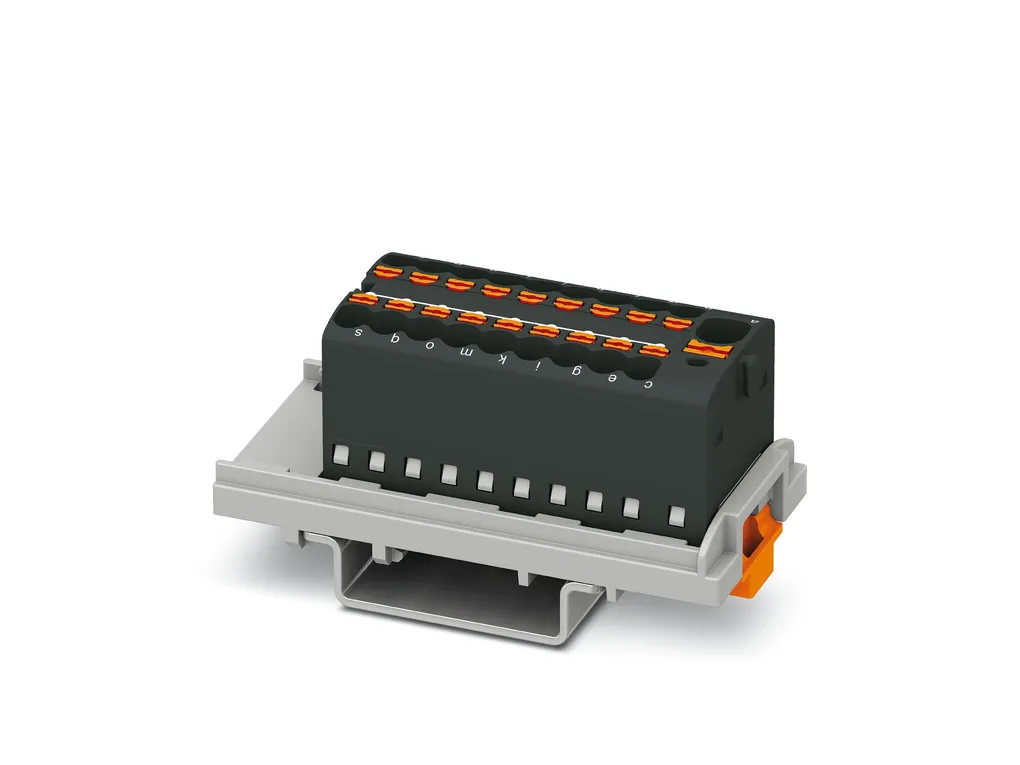

Distribution block, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm²-2.5 mm², Line contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: black
