N disconnect terminal block, Assembly instructions:
For secure fastening of the neutral busbar, supports must be set at the beginning and end of each terminal strip as well as every 20cm on longer terminal strips., nom. voltage: 400 V, nominal current: 110 A, Special and hybrid connection, 1st level connection right, Rated cross section: 35 mm², cross section:0.75 mm²-35 mm², mounting type: NS 35/7,5, NS35/15, NS32, color:blue

Installation terminal block, nom. voltage: 800 V, nominal current: 125 A, Screw connection, Rated cross section: 35 mm², cross section:0.75 mm²-35 mm², mounting type: NS 35/7,5, NS35/15, NS32, color:blue

Accessories, pitch: 5.08 mm, mounting type: NS 35/7,5, NS35/15, NS32, color: gray

Installation ground terminal block, number of connections: 2, connection method: Screw connection, Rated cross section: 16 mm², cross section: 2.5 mm²-25 mm², mounting: PE foot with mounting screw, M4, mounting type: NS 35/7,5, NS35/15, NS32, color: green-yellow

Installation ground terminal block, Use an NS 32... or NS 35... copper DIN rail for connection cross sections of 35 mm²/2 AWG., nom. voltage: 800 V, nominal current: 125 A, number of connections: 2, number of positions: 1, cross section: 0.75 mm²-35 mm², mounting: PE foot with mounting screw, M5, mounting type: NS 35/7,5, NS35/15, NS32, color: green-yellow

Double-level terminal block, 32-pos. blocked, nom. voltage: 250 V, nominal current: 10 A, number of connections: 128, number of positions: 32, connection method: Screw/plug-in connection, 1st and 2nd level connection left, cross section: 0.2 mm²-4 mm², mounting type: NS 35/7,5, NS35/15, NS32, color: gray

Installation terminal block, nom. voltage: 400 V, nominal current: 76 A, Screw connection, Rated cross section: 16 mm², cross section:2.5 mm²-25 mm², mounting type: NS 35/7,5, NS35/15, NS32, color:blue

Feed-through terminal block, nom. voltage: 250 V, nominal current: 24 A, number of connections: 3, number of positions: 1, connection method: Screw/plug-in connection, 1 level, cross section: 0.2 mm²-4 mm², mounting type: NS32, NS35/15, NS 35/7,5, color: gray

Double-level terminal block, nom. voltage: 250 V, nominal current: 12 A, number of connections: 4, number of positions: 1, connection method: Screw/plug-in connection, 1st and 2nd level connection left, cross section: 0.2 mm²-4 mm², mounting type: NS 35/7,5, NS35/15, NS32, color: gray

Double-level modular terminal block with COMBICON plug-in zone, nominal current: 12 A, nominal voltage: 250 V, cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, mounting type: NS 35/7.5, NS 35/15, NS 32, pitch: 5.08 mm, width: 5.08, color: gray

Double-level terminal block, Current and voltage are determined by the plug used., 32-pos. blocked, nom. voltage: 250 V, nominal current: 10 A, connection method: Screw/plug-in connection, 1st and 2nd level connection left, cross section: 0.2 mm² - 4 mm², mounting type: NS 35/7,5, NS35/15, NS32, color: gray

Double-level terminal block, for MSTB flange plug screw connection, pitch: 5.08 mm, mounting type: NS 35/7,5, NS35/15, NS32, color: gray

Feed-through terminal block, nom. voltage: 800 V, nominal current: 20 A, number of connections: 4, number of positions: 1, connection method: Screw/plug-in connection, cross section: 0.2 mm²-4 mm², mounting type: NS 35/7,5, NS35/15, NS32, color: gray

Feed-through terminal block, nom. voltage: 250 V, nominal current: 12 A, number of connections: 3, number of positions: 1, connection method: Screw/plug-in connection, 2nd level connection left, cross section: 0.2 mm²-4 mm², mounting type: NS32, NS35/15, NS 35/7,5, color: gray

Feed-through terminal block, nom. voltage: 250 V, nominal current: 12 A, number of connections: 2, number of positions: 1, connection method: Screw/plug-in connection, 1st level connection left, cross section: 0.2 mm²-4 mm², mounting type: NS32, NS35/15, NS 35/7,5, color: gray

Flange, fitted on the left and right of UPCV3K 4-G-7,62, for a reliable screw connection with plugs with a screw flange

High-current terminal block, nom. voltage: 1000 V, nominal current: 380 A, number of connections: 2, number of positions: 1, connection method: Screw connection, Rated cross section: 240 mm², cross section: 35 mm²-240 mm², Rated cross section: 240 mm², cross section: 35 mm²-240 mm², mounting type: Screw mounting, color: gray

Flat-type fuse terminal block, cross section: 0.2-6 mm², AWG: 26-8, width: 8.2 mm, color: black, with LED, voltage LED: 60 V DC, current LED: 2 mA

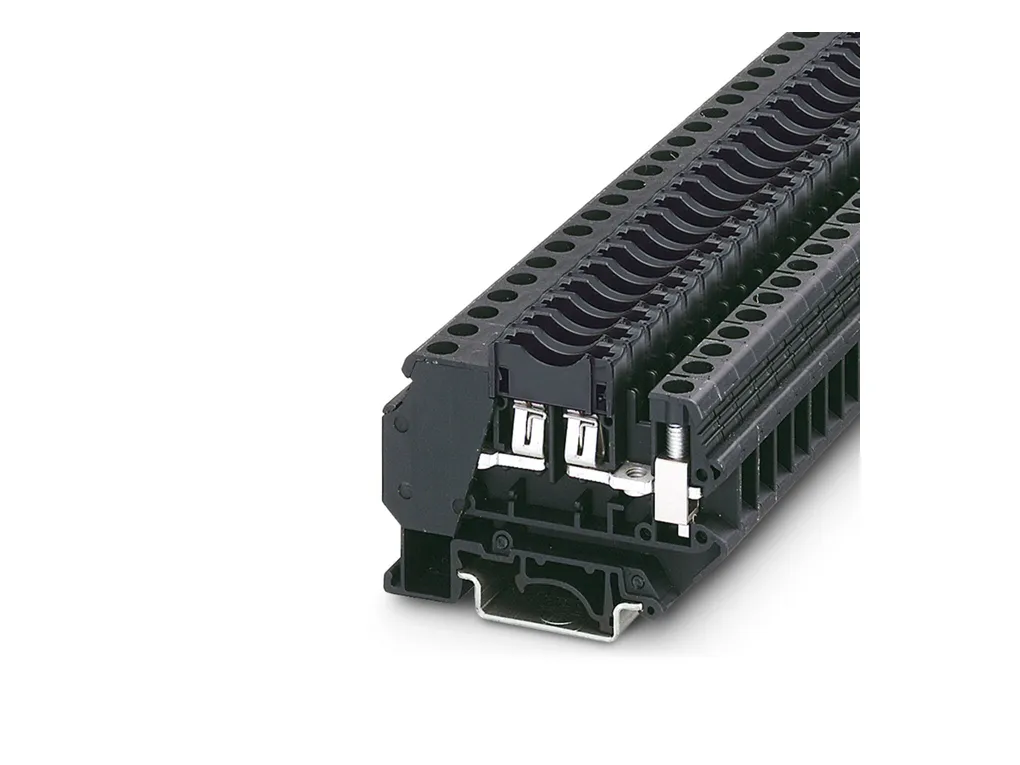

Fuse modular terminal block, fuse type: Flat, fuse type: C, nom. voltage: 250 V, nominal current: 30 A, number of positions: 1, connection method: Screw connection, 1 level, Rated cross section: 4 mm², cross section:0.2 mm²- 10 mm², mounting type: NS 35/7,5, NS35/15, NS32, color: black

Fuse modular terminal block, fuse type: Screw cartridge, fuse type: D 02 / E 18, nom. voltage: 400 V, nominal current: 63 A, connection method: Screw connection, Rated cross section: 35 mm², cross section:1.5 mm²- 35 mm², mounting type: NS 35/7,5, NS35/15, color: light gray
