Component terminal block, with two soldered-in resistors, 1.4 kOhm and 10 kOhm, nom. voltage: 500 V, nominal current: 32 A, number of connections: 4, connection method: Screw connection, 1st and 2nd level, Rated cross section: 4 mm², cross section: 0.2 mm²-4 mm², mounting type: NS 35/7,5, NS35/15, NS32, color: gray

Component terminal block, nom. voltage:500 V, nominal current:0.5 A, 1 level, connection method: Screw connection, Rated cross section:4 mm², cross section:0.2 mm²-6 mm², mounting: NS 35/7,5, NS35/15, NS32, color:black

Component terminal block, The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A., with integrated diode, nom. voltage: 500 V, nominal current: 0.5 A, connection method: Screw connection, 1st and 2nd level, Rated cross section: 4 mm², cross section: 0.2 mm² - 4 mm², mounting type: NS 35/7,5, NS35/15, NS32, color: gray

Component terminal block, with integrated diode, nom. voltage: 500 V, nominal current: 0.5 A, number of connections: 4, connection method: Screw connection, 1st and 2nd level, Rated cross section: 4 mm², cross section: 0.2 mm²-4 mm², mounting type: NS 35/7,5, NS35/15, NS32, color: gray

Component terminal block, Maximum width of components to be soldered in: 5 mm, for installing components that can be individually selected, nom. voltage:500 V, nominal current:32 A, 1st and 2nd level, connection method: Screw connection, Rated cross section:4 mm², cross section:0.2 mm²-4 mm², mounting: NS 35/7,5, NS35/15, NS32, color:gray

Component terminal block, Maximum width of components to be soldered in: 5 mm, nom. voltage:500 V, nominal current:32 A, 1st and 2nd level, connection method: Screw connection, Rated cross section:4 mm², cross section:0.2 mm²-4 mm², mounting: NS 35/7,5, NS35/15, NS32, color:gray

Device terminal block, nom. voltage: 800 V, nominal current: 57 A, number of connections: 4, number of positions: 2, connection method: Screw connection, Rated cross section: 10 mm², cross section: 0.5 mm²-16 mm², mounting type: direct screw connection, color: gray

Device terminal block, nom. voltage: 800 V, nominal current: 57 A, number of connections: 6, number of positions: 3, connection method: Screw connection, Rated cross section: 10 mm², cross section: 0.5 mm²-16 mm², mounting type: direct screw connection, color: gray

Device terminal block, nom. voltage: 800 V, nominal current: 57 A, number of connections: 8, number of positions: 4, connection method: Screw connection, Rated cross section: 10 mm², cross section: 0.5 mm²-16 mm², mounting type: direct screw connection, color: gray

Component terminal block, with integrated diode, nom. voltage: 500 V, nominal current: 0.5 A, number of connections: 4, connection method: Screw connection, 1st and 2nd level, Rated cross section: 4 mm², cross section: 0.2 mm²-4 mm², mounting type: NS 35/7,5, NS35/15, NS32, color: gray

Device terminal block, nom. voltage: 800 V, nominal current: 57 A, number of connections: 10, number of positions: 5, connection method: Screw connection, Rated cross section: 10 mm², cross section: 0.5 mm²-16 mm², mounting type: direct screw connection, color: gray

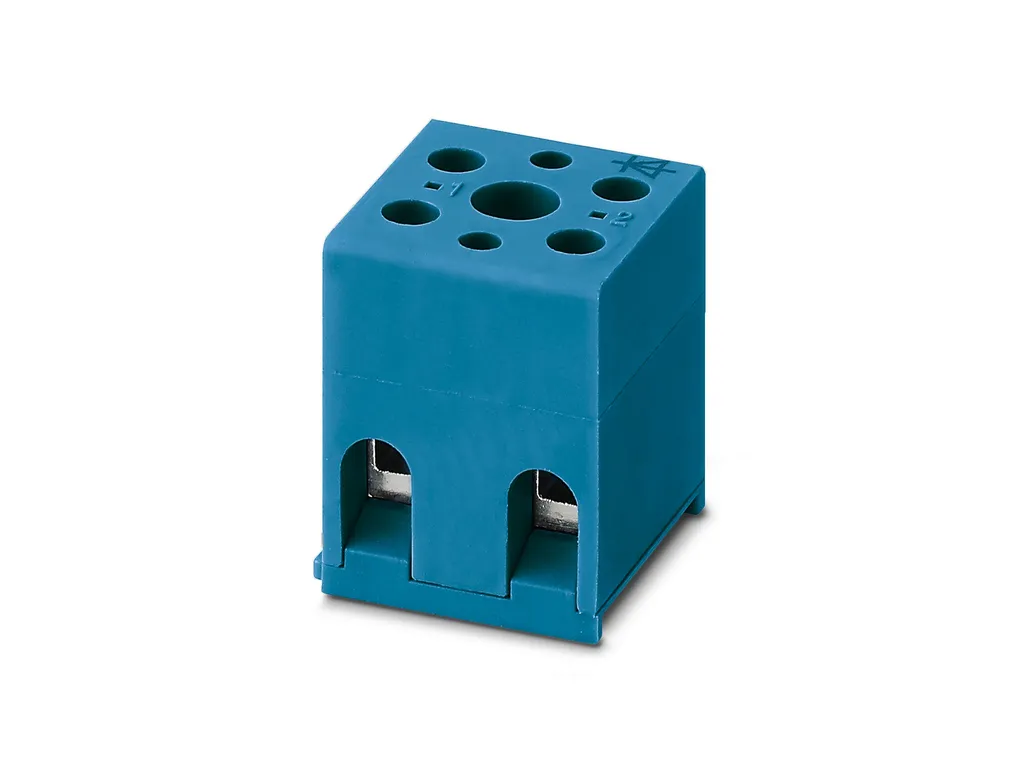

Feed-through terminal block, with integrated diode, nom. voltage: 500 V, nominal current: 32 A, number of connections: 4, connection method: Screw connection, cross section: 0.2 mm²-4 mm², mounting type: direct screw connection, color: blue

Device terminal block, nom. voltage: 500 V, nominal current: 32 A, number of connections: 4, number of positions: 2, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm²-4 mm², mounting type: direct screw connection, color: orange

Device terminal block, nom. voltage: 500 V, nominal current: 32 A, number of connections: 24, number of positions: 12, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm²-4 mm², mounting type: direct screw connection, color: gray

Device terminal block, nom. voltage: 500 V, nominal current: 32 A, number of connections: 4, number of positions: 2, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm²-4 mm², mounting type: direct screw connection, color: gray

Device terminal block, nom. voltage: 500 V, nominal current: 32 A, number of connections: 6, number of positions: 3, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm²-4 mm², mounting type: direct screw connection, color: gray

Device terminal block, nom. voltage: 500 V, nominal current: 32 A, number of connections: 8, number of positions: 4, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm²-4 mm², mounting type: direct screw connection, color: gray

Micro terminal, nom. voltage: 400 V, nominal current: 17.5 A, connection method: Screw connection, 1st and 2nd level, Rated cross section: 1.5 mm², cross section: 0.14 mm² - 1.5 mm², mounting type: NS15, NS 35/7,5, NS35/15, color: blue

Device terminal block, nom. voltage: 500 V, nominal current: 32 A, number of connections: 4, number of positions: 2, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm²-4 mm², mounting type: direct screw connection, color: gray

Device terminal block, nom. voltage: 275 V, nominal current: 30 A, number of connections: 6, number of positions: 3, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm²-4 mm², mounting type: direct screw connection, color: gray
