LEKFS32T7A-300-R5PD21

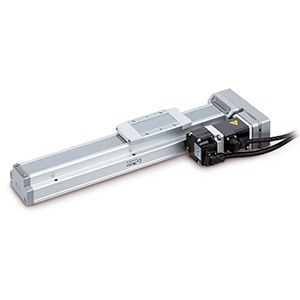

SMC LEKFS32T7A-300-R5PD2 - High Rigidity and High Precision, AC Servo Motor - LEKFS. Product series: Slider Type, Ball Screw (230 VAC) - LE(K)FS, (25A/11-)LEFS, (11-)LEFG. Your everyday transfer solution for high loads: Transfer & position whatever the needs - Ball screw drive, the best for high loads and repeatable accurate positioning; Boost your productivity - High-performance controller. Maximum speed of 1500 mm/s and maximum acceleration of 20000 mm/s²; Guarantee impeccable accuracy - ±0.01 position repeatability; Accommodate it in any location - Variety of models to suit clean rooms or secondary battery manufacturing environments. And much more: Body size: 25, 32, 40; Compatible encoders: absolute, incremental; Available variations for non-standard environments: secondary batteries manufacturing, clean room; Horizontal/Vertical work load: up to 60/30 kg. Features: Body size: 25, 32 and 40 mm; Stroke: 50 to 1200 mm; Acceleration: up to 20000 mm/s²; Speed: up to 1500 mm/s; AC servo motor; Compatible encoder: absolute, incremental. Technical specifications: Size: 32 mm; Motor Mounting Position: In-line; AC Servo Motor: T7 (200W Output, Absolute Encoder, LECSB2/C2/S2); Lead Screw: A (Size 25: 12 mm, Size 32: 16 mm, Size 40: 20 mm); Stroke: 300 mm; Motor Option: w/o Lock; Seal Band Stopper: Standard; Actuator Cable: R (Robotic Flexible Cable); Actuator Cable Length: 5 (5 m); Driver: PD2 (LECSND2-T-P/PROFINET®, 200 V to 240 V); I/O Connector: w/o Connector; Maximum ambient temperature: 40 °C; Minimum ambient temperature: 5 °C; General power supply: 24 VDC ±10 %; Conform to the European RoHS Directive: Conform; Approvals: CE, UKCA; Positioning repeatability: ±0.01 mm; Lost motion: ? 0.05; Impact/Vibration resistance: 50/20 m/s²; Actuation type: Ball screw (LEKFS#), Ball screw + Belt (LEKFS#R/L); Motor type: AC servo motor (100/200 VAC); Encoder: Motor type S2, S3, S4: Incremental 17-bit encoder (Resolution: 131072 p/rev) Motor type T6, T7, T8: Absolute 22-bit encoder (Resolution: 4194304 p/rev) (For LECSB2-T, LECSS2-T) Motor type T6, T7, T8: Absolute 18-bit encoder (Resolution: 262144 p/rev) (For LECSC2-T); Horizontal work load: 40 Kg; Vertical work load: 10 Kg; Speed: 1000 mm/s; Max. Acceleration/deceleration: 20000 mm/s²; Operating humidity range: 90 % RH or less (No condensation); Power Consumption: 725 W; Lock: Holding force: 197 W; Guide type: Linear guide; Motor size: 60; Lock unit type: Non-magnetising lock; Lock unit power consumption: 7,9 W; Technical graph 1: 8655AK_graph2_en.jpg.
