LEKFS32NZA-50

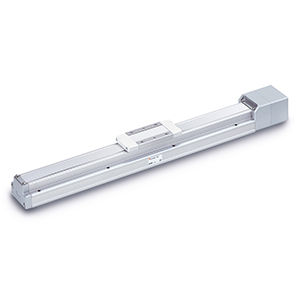

SMC LEKFS32NZA-50 - High Rigidity and High Precision, Motorless - LEKFS. Product series: Slider Type, Ball Screw Drive Motorless Electric Actuator - LEFS/LEKFS. Your motor, our actuator. Transfer for high loads: Create the best possible solution for you - Use your own motor and driver; High loads transfer & positioning, whatever the needs - Ball screw drive, the best for high loads and repeatable accurate positioning; Optimise your application - Motors from a large number of companies to choose from; Unbeatable for achieving great strokes - Up to 1200 mm. And much more: Stroke: up to 1200 mm; Horizontal/Vertical workload: up to 60/30 kg; Speed: up to 1500 mm/s; Acceleration: up to 20000 mm/s². Features: Body size: 25, 32 and 40 mm; Stroke: 50 to 1200 mm; AC servo motor, 100/200W; EPLAN library. Technical specifications: Size: 32; Motor Mounting Position: In-line; Motor Type: NZ (Mounting Type Z); Lead: A (Size 25: 12 mm, Size 32: 16 mm, Size 40: 20 mm); Stroke: 50; Grease: Standard; Weight: 2.500 Kg.
