LEFS40T8A-900-R5PD21

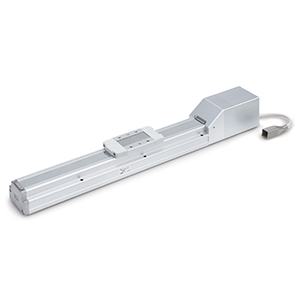

SMC LEFS40T8A-900-R5PD21 - Standard Model - LEFS. Product series: Slider Type, Ball Screw (230 VAC) - LE(K)FS, (25A/11-)LEFS, (11-)LEFG. Your everyday transfer solution for high loads: Transfer & position whatever the needs - Ball screw drive, the best for high loads and repeatable accurate positioning; Boost your productivity - High-performance controller. Maximum speed of 1500 mm/s and maximum acceleration of 20000 mm/s²; Guarantee impeccable accuracy - ±0.01 position repeatability; Accommodate it in any location - Variety of models to suit clean rooms or secondary battery manufacturing environments. And much more: Body size: 25, 32, 40; Compatible encoders: absolute, incremental; AC servo motor; Available variations for non-standard environments: secondary batteries manufacturing, clean room; Horizontal/Vertical work load: up to 60/30 kg. Features: Body size: 25, 32 and 40 mm; Stroke: 50 to 1200 mm; AC Servo Motor, 100/200/400W. Technical specifications: Accuracy: Basic Type; Size: 40 mm; Motor Mounting Position: In-line; AC Servo Motor: T8 (400W Output, Absolute Encoder, LECSB/C/S); Lead Screw: A (Size 25: 12 mm, Size 32: 16 mm, Size 40: 20 mm); Stroke: 900 mm; Motor Option: w/o Lock; Auto Switch Mounting Bracket: None; Seal Band Stopper: Standard; Positioning Pin Hole: Housing B Bottom; Actuator Cable: R (Robotic Flexible Cable); Actuator Cable Length: 5 (5 m); Driver: PD2 (LECSND2-T-P/PROFINET®, 200 V to 240 V); I/O Connector: 1 (1.5 m); Maximum ambient temperature: 40 °C; Minimum ambient temperature: 5 °C; General power supply: 24 VDC ±10 %; Approvals: CE; Positioning repeatability: ± 0.02 mm; Lost motion: 0.1 mm.
