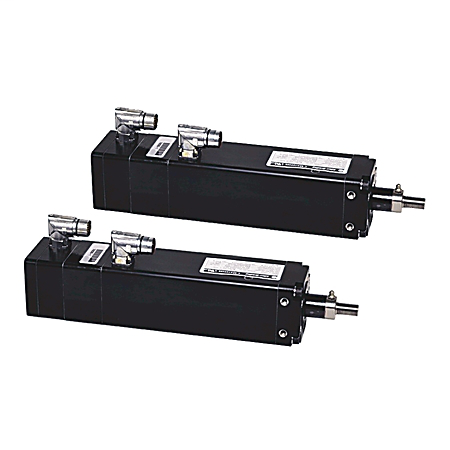

ROCKWELL AUTOMATION MPAI-B2150CV34E-W
ROCKWELL AUTOMATIONNon disponibile

MP-Series Heavy Duty Electric Cylinders, Actuator Rod w/Male Rod End with Food Grade White Paint Option,152.4 mm (6.0 in.), 460V AC, 128 SIN/COS Multi-turn ABS Encoder (150...450mm stroke lengths), 24 VDC Brake
Cod. Articolo: MPAI-B2150CV34E-W
Cod. Fornitore: MPAI-B2150CV34E-W
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Caratteristiche Tecniche
Product SelectionBulletinNoMP-Series Heav Duty Electric CylinderActuatorTypeActuator Rod w/Male Rod End with Food Grade White Paint OptionVoltage Rating460V ACActuator Frame Size64mm (2.5 in)Rod Stroke Length152.4 mm (6.0 in.)Mechanical Drive/Screw Lead/Motor Type5.0 mm/rev Ball Screw (0.197 in/rev)Feedback/Motor Series128 SIN/COS Multi-turn ABS Encoder (150...450mm stroke lengths)Holding Brake24 VDC BrakeAcuator MountingFront Face Mount with or w/out FlangeSpecificationsMax Feed Force: 1446N (325lbs); Continuous Feed Force: 1446N (325lbs); Max Speed: 305 mm/s(12 in/s)
