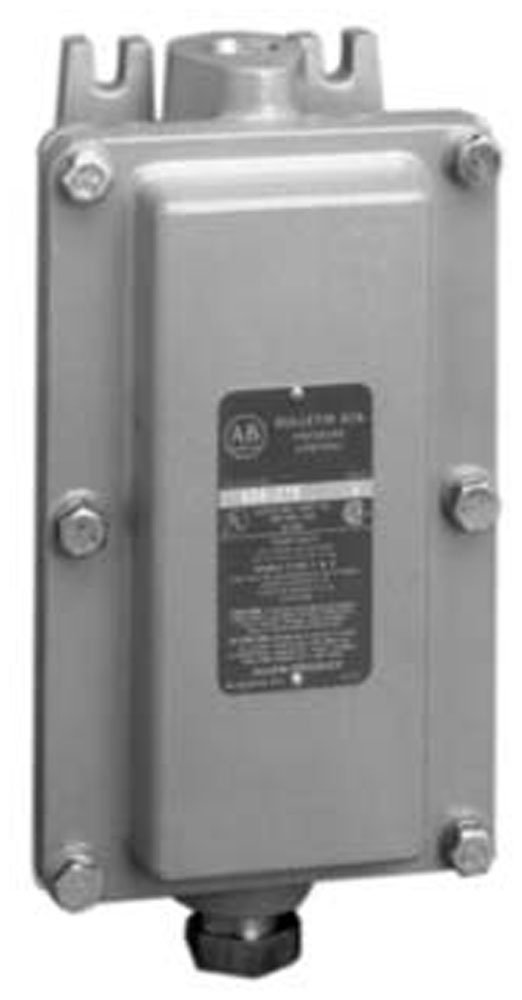

ROCKWELL AUTOMATION 836-A1E
ROCKWELL AUTOMATION 836-A1E
ROCKWELL AUTOMATIONNon disponibile

Electro-Mech Pres Cntrl Sw

836 Pressure Controls - General Industrial, Device Style A, Internal Copper Alloy Bellows, Type 7 & 9 and 4 & 13 Combined Metallic Aluminum Enclosure , No Modifications
Cod. Articolo: 836-A1E
Cod. Fornitore: 836-A1E
ROCKWELL AUTOMATION


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Explosion-proofYes
StyleStyle A product
Actuator typeInternal bellows, copper alloy
Suitable for waterYes
Suitable for airYes
Suitable for oilYes
Width95.2 mm
Depth97.5 mm
Height175.5 mm
Occasional surge pressures160 psi
Shipping weight, approx4.1 lb
Line pressure, max160 psi
Adjustable differential2 psi
Enclosure ratingNEMA Type 7 & 9
Adjustable operating range30 inch Hg vacuum...75 psi
Pressure connection7/16 inch-20 SAE flare for 1/4 inch copper tubing
Electrical connectionPlug
Control circuit ratingsAC : 125VA, 24…600V DC : 57.5VA, 115...230V
CustomizationStandard trip/reset settings (the maximum operating range and minimum differential will be factory set for the pressure control switch.)
Contact block modificationStandard contact block-SPST
Operating temperature-22 °F
Storage temperature-22 °F
