Plug-In Oiltight Limit Switch, Metal, 10 A Standard Energy, Rotary Lever Arm, 4 Circuits, Conduit Entry, Standard Contacts, 2 Normally Open Contacts, 2 Normally Closed Contacts, Standard Low Temprature, -18Â°C, 110 Â°C High Temp Limit, Snap Acting, 1/2"

Limit Switch, NEMA Type 4 and 13 Oiltight Construction, Plug-In, Lever Type, Spring Return, High Operating Torque, 4-Circuit, CCW operation only, lever can be moved CW, Whole Switch

Cod. Articolo: 802T-H2TP Copia - Copy

Cod. Fornitore: 802T-H2TP Copia - Copy

ROCKWELL AUTOMATION

Caratteristiche Tecniche

Download

Caratteristiche Tecniche

SWITCH DATAEnergy RatingStandard EnergyPlug-In or NonPlug-In StylePlug-InSwitch ComponentsComplete SwitchActuation TypeLever Type, Spring Return, High Operating TorqueNumber of Circuits4-CircuitMode of OperationCCW operation only, lever can be moved CWSafety SwitchNoTravel to Operate Contacts (Nominal)9°Torque to Operate Contacts (Max.)0.79N-m (7lb in)Travel to Reset Contacts (Max.)3.5°Maximum Travel90°OPERATING LEVER DATAOperating LeverOperating Lever Not SelectedAdditional DetailsTypeOiltight Limit Switches

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

limit-td001_-en-p.pdf

Altri prodotti correlati

Di seguito alcuni articoli correlati a quello che stai vedendo

Standard Limit Switch, Full Sw Head & Body, Standard Non-Plug-In, 2 Circuits, Rotary Lever Arm, Clockwise Only, Standard Mounting
Cod. Articolo: 802T-L1

Limit Switch, NEMA Type 4 and 13 Oiltight Construction, Non-Plug-In, Lever Type, Spring Return, Standard Operating Torque, 2-Circuit, CW operation only, lever cannot be moved CCW, Whole Switch

Scopri di più →

Plug-In Oiltight Limit Switch, Metal, 10 A Standard Energy, Wobble Stick, 2 Circuits, Standard Contacts, 1 Normally Open Contact, 1 Normally Closed Contact, Standard Low Temprature, -18Â°C, 54 Â°C High Temp Limit, Snap Acting, Push Accuation, Spring Retu
Cod. Articolo: 802T-WSP1

Limit Switch, NEMA Type 4 and 13 Oiltight Construction, Plug-In, Wobble Stick, Nylon, 2-Circuit, Head Only

Scopri di più →

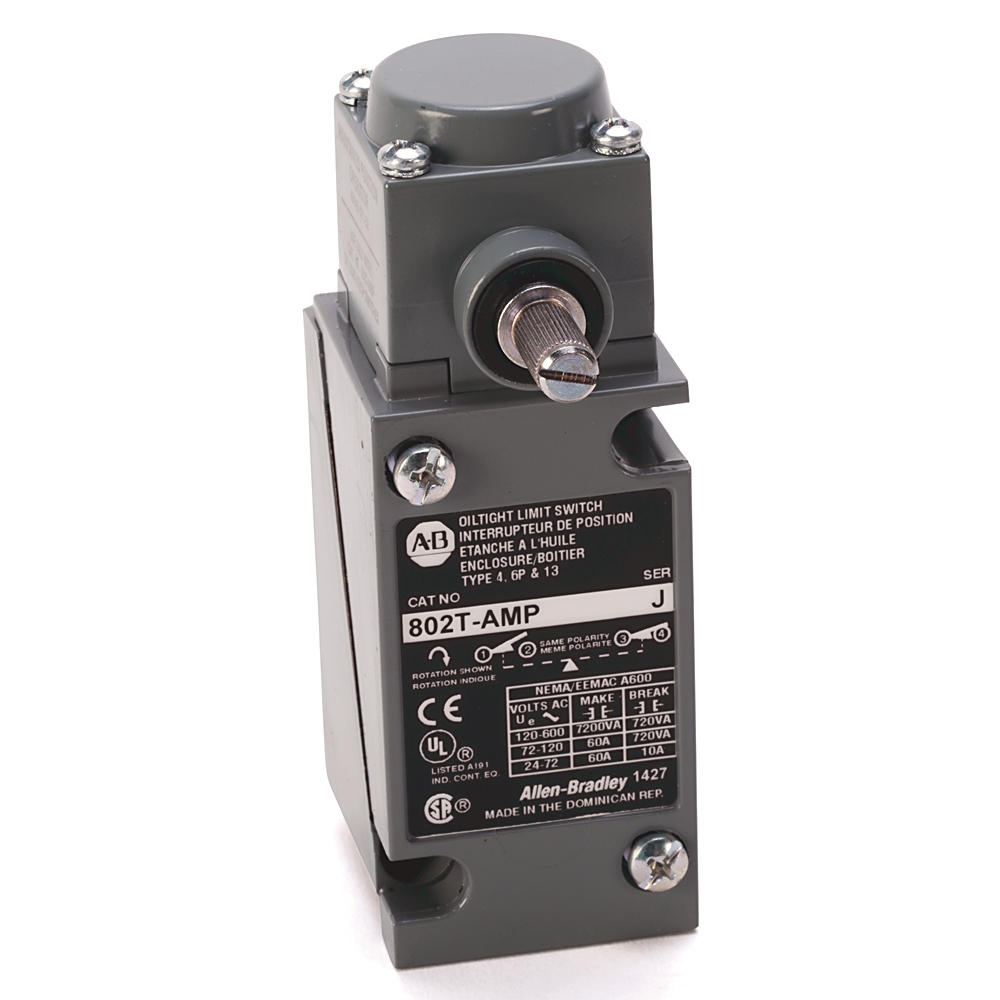

Plug-In Oiltight Limit Switch, Metal, 10 A Standard Energy, Rotary Lever Arm, 2 Circuits, Conduit Entry, Standard Contacts, 1 Normally Open Contact, 1 Normally Closed Contact, Standard Low Temprature, -18Â°C, 110 Â°C High Temp Limit, Snap Acting, 1/2" NP
