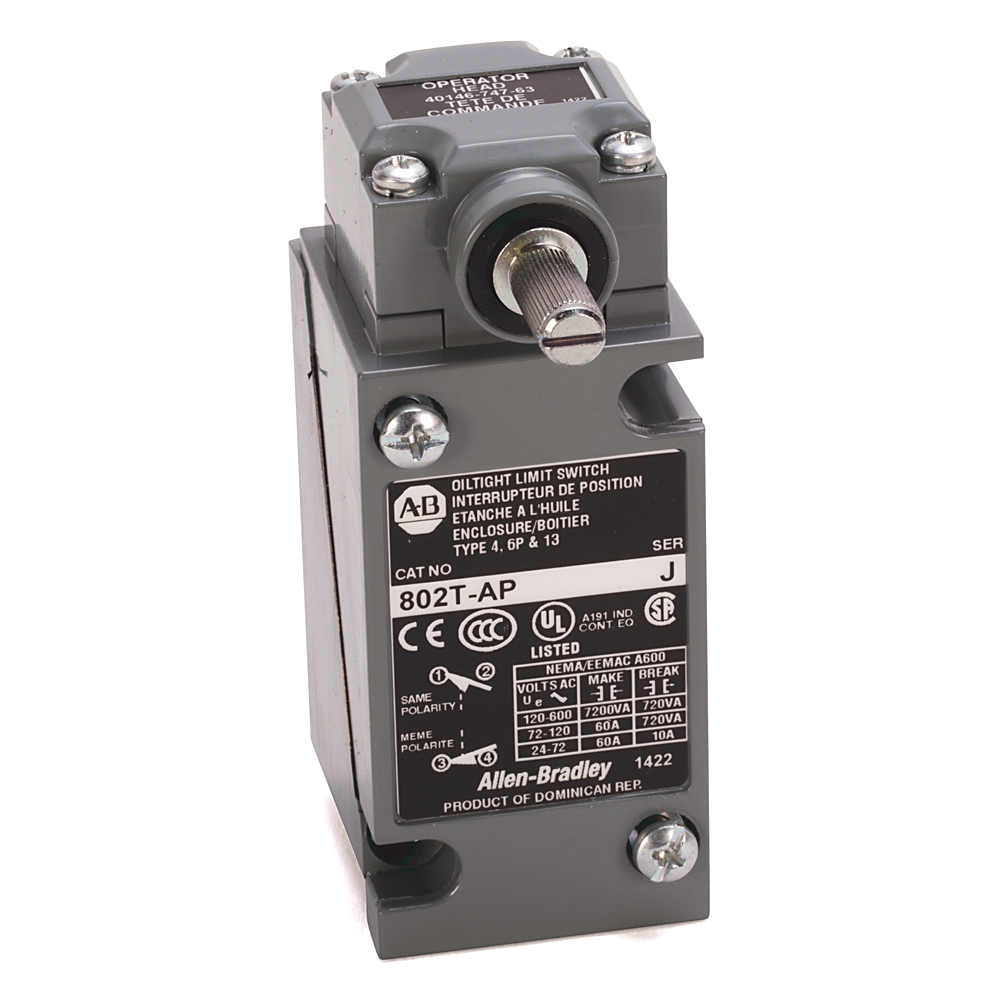

Plug-In Oiltight Limit Switch, Metal, 10 A Standard Energy, Rotary Lever Arm, 2 Circuits, Conduit Entry, Standard Contacts, 1 Normally Open Contact, 1 Normally Closed Contact, Standard Low Temprature, -18Â°C, 110 Â°C High Temp Limit, Snap Acting, 1/2" NP

Limit Switch, NEMA Type 4 and 13 Oiltight Construction, Plug-In, Lever Type, Spring Return, Standard Operating Torque, 2-Circuit, CW and CCW operation, Whole Switch, VITON Seals

Cod. Articolo: 802T-APV Copia - Copy

Cod. Fornitore: 802T-APV Copia - Copy

ROCKWELL AUTOMATION

Caratteristiche Tecniche

Download

Caratteristiche Tecniche

SWITCH DATAEnergy RatingStandard EnergyPlug-In or NonPlug-In StylePlug-InSwitch ComponentsComplete SwitchActuation TypeLever Type, Spring Return, Standard Operating TorqueNumber of Circuits2-CircuitMode of OperationCW and CCW operationSafety SwitchNoTravel to Operate Contacts (Nominal)13°Torque to Operate Contacts (Max.)0.29N-m (2.6lb in)Travel to Reset Contacts (Max.)7°Maximum Travel90°MODIFICATIONSViton SealsVITON SealsOPERATING LEVER DATAOperating LeverOperating Lever Not SelectedAdditional DetailsTypeOiltight Limit Switches

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

limit-td001_-en-p.pdf
