Name: Technology BSA
Address: IT

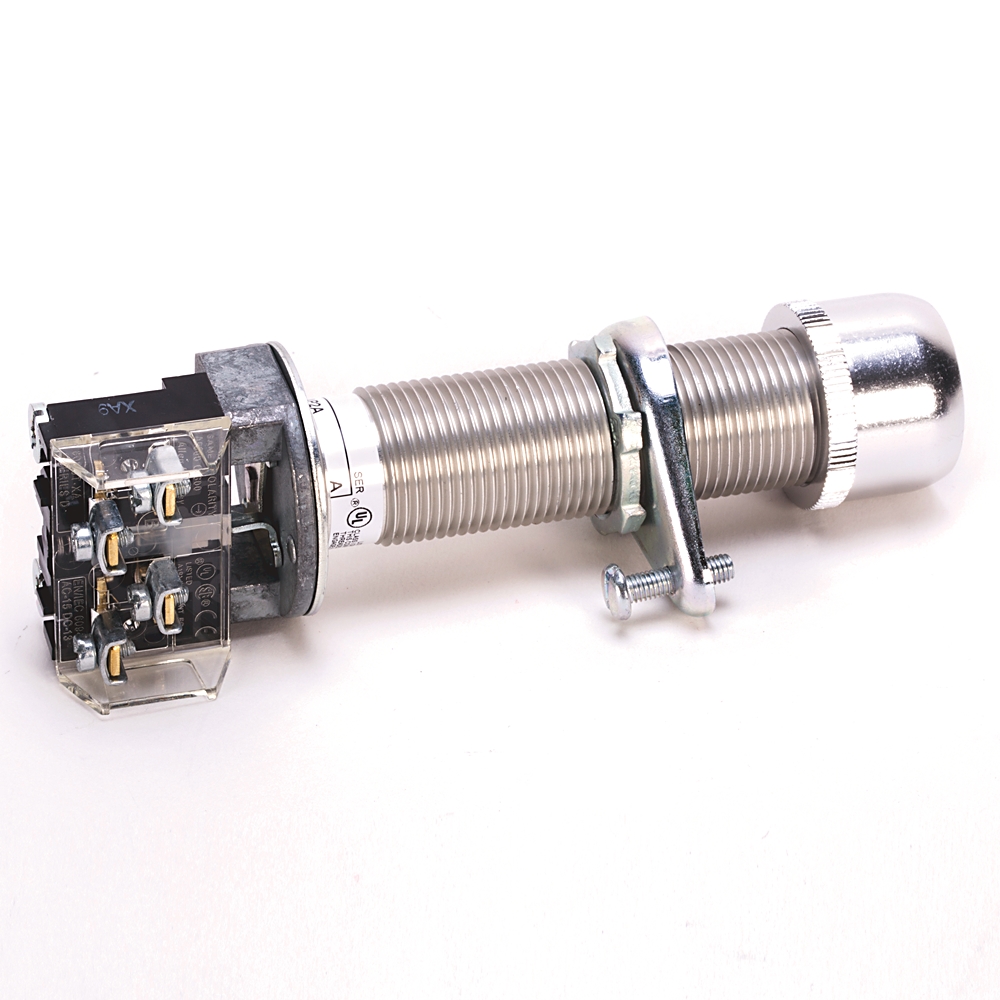

800HL PB, Type 7_9 Momentary Push Button, Flush Head, Black, 1-NO 1-NC Standard Contacts, 1-NO 1-NC Standard Contacts, No Block Position 2, No Block Position 3, No Block Position 4, No Special Head

Hazardous Location Type 7&9 Momentary Contact PB, Non-Illuminated., Long Barrel, Flush Head, Black, 1 NO-1 NC

Cod. Articolo: 800HL-AP2A Copia - Copy

Cod. Fornitore: 800HL-AP2A Copia - Copy

ROCKWELL AUTOMATION

Number of command positions	1
Material front ring	Plastic
Colour button	Black
Additional operator features	No special head
With front ring	Yes
Construction type lens	Round
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Suitable for illumination	No
Contact operation	Shallow and mini contact blocks: slow double make and break, Logic reed and sealed switch contact blocks: snap action
Dielectric strength	2200V for 1 minute, 1300V for 1 minute (Logic Reed)
Electrical life cycle	1000000 cycles at maximum rated load, 200000 cycles at maximum rated load (Logic Reed)
Spring-return	Yes
Hole diameter	30.5 mm
Type of electric connection	Screw connection
Mechanical life operations	250000 minimum
Operator type	Flush head
Contact block configuration	1 NO, 1 NC, standard contact block (800T-XA)
Shock	1/2 cycle sine wave for 11 ms Ã¢Ã¢°¥25 G (contact fragility) and no damage at 100 G
Degree of protection	Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories)
Vibration	10...2000 Hz, 1.52 mm displacement (peak-to-peak) maximum/10 G maximum (except Logic Reed)
Typical operating force	Operator without contact block: 2.9 lb maximum (flush, extended, standard mushroom, jumbo mushroom)
Switching function latching	No
Terminal screw torque range	6 lb.in
Wire size	18 AWG
Operating temperature	-20 Ã°C
Humidity	50% @ 40 Ã°C
Storage temperature	-40 Ã°C

Accedi ai servizi

Entra nella tua area riservata

Accedi ai servizi

800HL PB, Type 7_9 Momentary Push Button, Flush Head, Black, 1-NO 1-NC Standard Contacts, 1-NO 1-NC Standard Contacts, No Block Position 2, No Block Position 3, No Block Position 4, No Special Head

Altri prodotti correlati

800HL PB, Type 7_9 Momentary Push Button, Flush Head, Black, No Contact Blocks, No Block Position 1, No Block Position 2, No Block Position 3, No Block Position 4, No Special Head
Cod. Articolo: 800HL-AP2

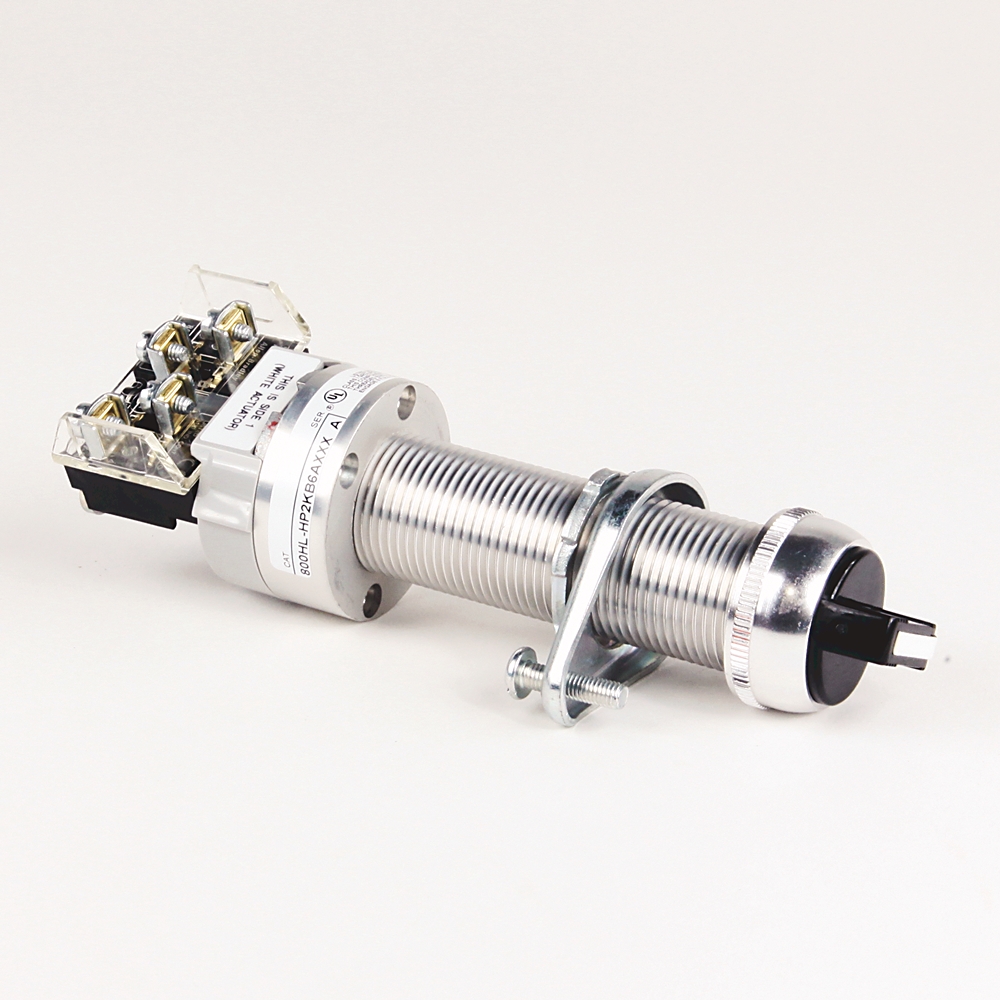

Hazardous Location Type, 800H 2 Position Selector Switch, (Knob/Wing Lever), Type 7&9, Long Barrel, Standard Knob, White (Knob)/Gray (Metal Wing), Maintained, Standard, 1 N.O., No Contacts in this Position, No Contacts in this Position, No Contacts in th
