Disponibile

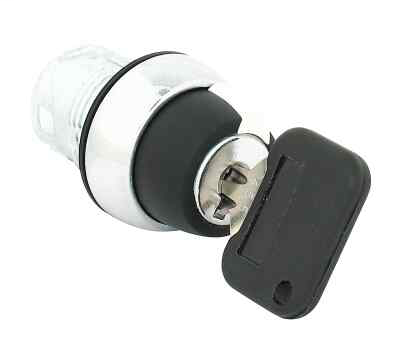

800F PB, 22mm Selector Switch, Keyed Selector Switch, RIGHT, 3825 Standard, No Power Module (Lamp Type), Maintained, 2 Position, No Power Module, Metal, No Power Module (Voltage)

800F 2 Position Key Selector Switch - Metal, Maintained, Right Key Removal, Key Code 3825 (Standard) Standard Pack (Qty. 1)

Cod. Articolo: 800FM-KM22 Copia - Copy

Cod. Fornitore: 800FM-KM22 Copia - Copy

ROCKWELL AUTOMATION

Caratteristiche Tecniche

Specifiche

Descrizione

Download

Caratteristiche Tecniche

Number of switch positions	2
Spring-return	No
Switching function latching	Yes
Hole diameter	22.5 mm
Operator mechanical design life (cycles, min.)	1000000
Latch material	Metal
Key removal position	Right
Operator type	Keyed selector switch
Enclosure compatibility	IP66, Type 4/13 (round metal operator)
Operator function	Maintained, 2 position
Shock	100 G
Vibration	10 G
Key lock, standard	3825
Suitable for illumination	No
Contact block thermal current rating	10 A
Material front ring	Metal
Type of control element	Key
Operator cap/button material	Plastic
Operator construction/material	Metal
With front ring	Yes
Operating temperature	-25 Ã°C
Humidity	Ã¢Ã¢°¤95% RH from 25...60 Ã°C (77...140 Ã°F)
Storage temperature	-40 Ã°C
Certifications	UL,UR, CSA, CCC, CE

Specifiche

Specifications
Called From 800FC Library:No
Key Selector Data
Operator Construction:Round Metal (Type 4/13, IP66)
Operator Type:Key Selector
Operator Function:Maintained, 2 Position
Key Removal:Right
Key Lock:3825 (Standard)
Packaging:Standard Pack, Quantity:1
Back Of Panel Data
Mounting Style:No Contact Blocks
Part Numbers:No Back of Panel Part Numbers
Target Table Selections:Cam and Contact Blocks

Descrizione

800F PB, 22mm Selector Switch, Keyed Selector Switch, RIGHT, 3825 Standard, No Power Module (Lamp Type), Maintained, 2 Position, No Power Module, Metal, No Power Module (Voltage)

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

800-td008_-en-p.pdf

800-um001_-en-p.pdf
